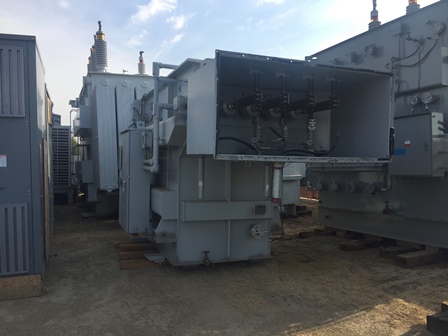

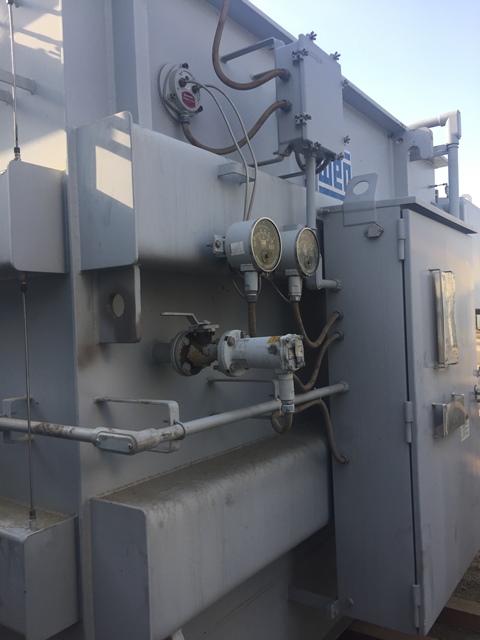

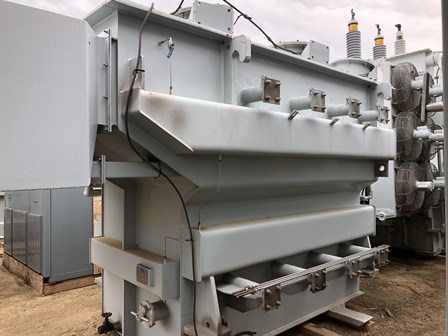

5000/6250 KVA, Pri 115000 D, Sec 12000Y/6930, WEG, COPPER
SUBSTATION TRANSFORMER
Product Number:
041074
Full Product Description
JVT-3639:
ONE (1) 5000/6250 KVA WEG SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ, CLASS
ONAN/ONAF, 65 DEG. C RISE, 8.8% IMPEDANCE, COPPER WINDINGS, 3 X 600:5
HV MRCT'S C-400, 5 X 1200:5 LV MRCT'S C-400, HV COVER, LV RIGHT SIDE
THROAT, REMOVABLE RADIATORS, MFG. 2010
HIGH VOLTAGE: 115000 DELTA BIL: 450 KV
LOW VOLTAGE: 12000Y/6930 BIL: 60 KV
TAPS: 120750-117875-115000-112125-109250
TOTAL WEIGHT: 63,187 LBS.
CORE & COILS: 19,311 LBS.
TANK & FIT.: 27,803 LBS.
OIL: 16,073 LBS. (2,266 GALS.)
