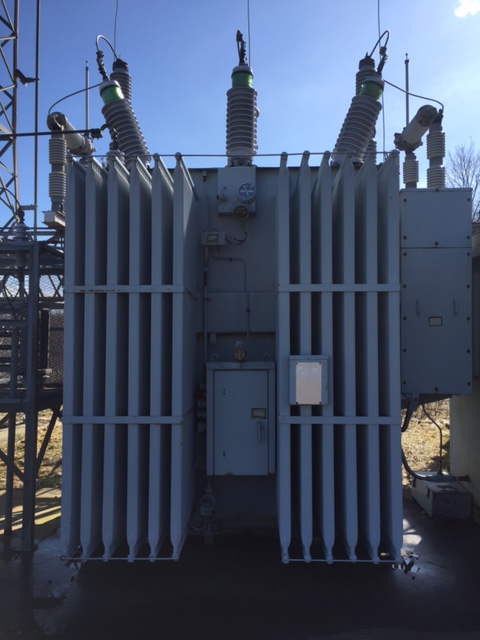

5000/7000 KVA, Pri 115000 D, Sec 4160Y/2400, GENERAL ELECTRIC, SUBSTATION

JVT-3642:

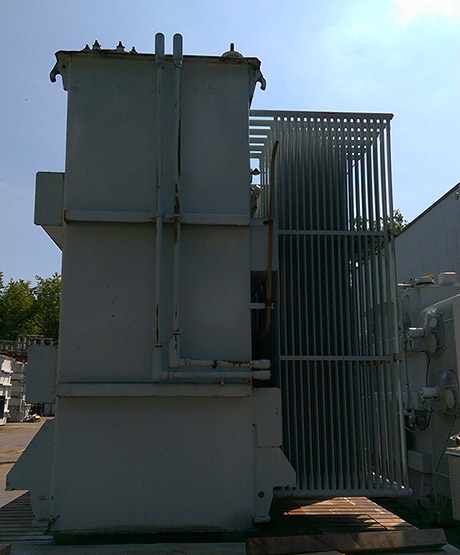

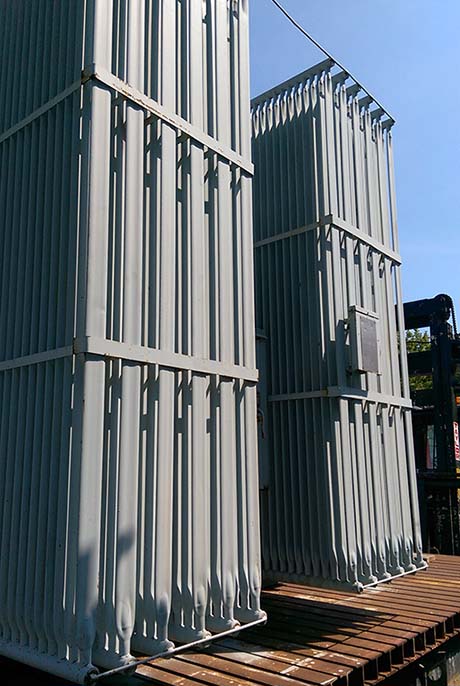

ONE (1) 5000/5600/7000 KVA GENERAL ELECTRIC SUBSTATION TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA/FFA, 55/65 DEG. C RISE, HV ALUMINUM, LV COPPER,
PRESSURE RELIEF VALVE, LIQUID LEVEL GAUGE W/CONTACTS, LIQUID
TEMPERATURE INDICATOR W/CONTACTS, WINDING TEMPERATURE INDICATOR
W/CONTACTS, PRESSURE VACUUM GAUGE, PRESSURE VACUUM BLEEDER, FAULT
PRESSURE RELAY W/CONTACTS, DRAIN & SAMPLE VALVE

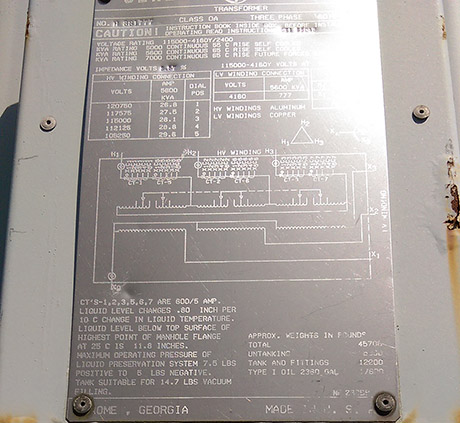

HIGH VOLTAGE: 115000 DELTA BIL: 550 KV
LOW VOLTAGE: 4160Y/2400 BIL: 75 KV
TAPS: 120750-117575-115000-112125-109250

TOTAL WEIGHT: 47,500 LBS.
CORE & COILS: 15,900 LBS.
TANK & FIT.: 12,200 LBS.
OIL: 17,600 LBS. (2,360 GALS.)
DIMENSIONS: 213.5"H X 126"W X 158"L
SHIPPING: 140"H X 106"W X 150.50"L
