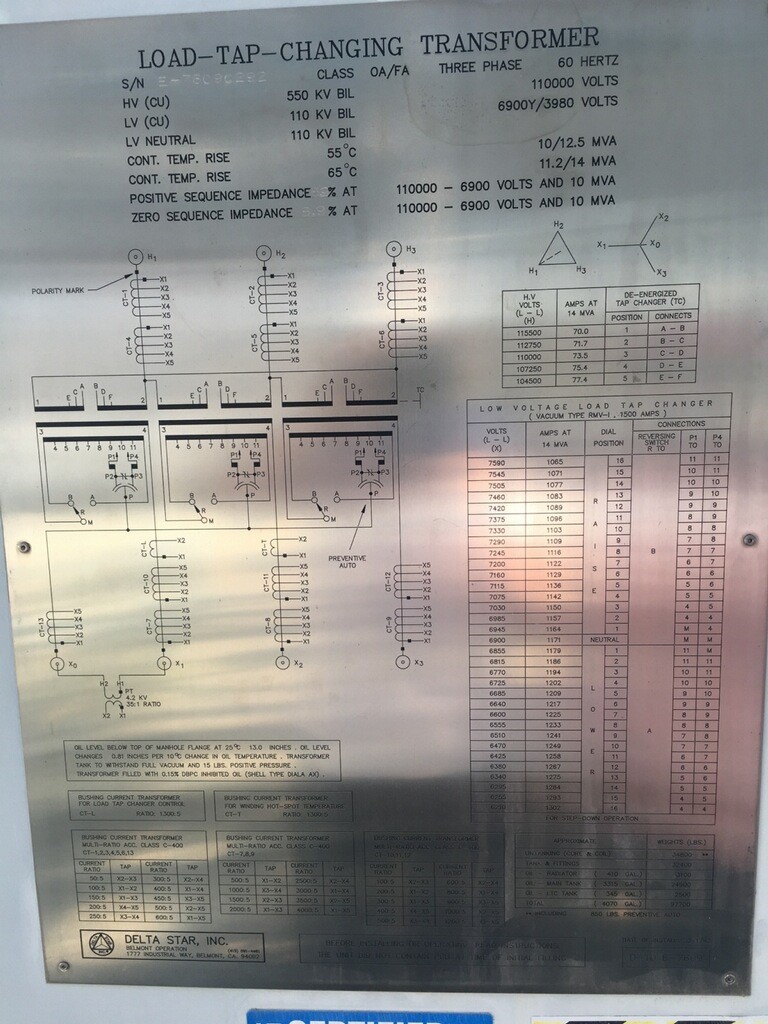

10000/14000 KVA, Pri 110000 D, Sec 6900Y/3980, DELTA STAR, LTC:1
LOAD TAP CHANGING TRANSFORMER
Product Number:
041027
Full Product Description
ONE (1) 10/11.2/12.5/14 MVA DELTA STAR LOAD TAP CHANGING TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA/FA, 55/65 DEG. C RISE, 5.9% IMPEDANCE, COPPER
HIGH VOLTAGE: 110000 BIL: 550 KV
LOW VOLTAGE: 6900Y/3980 BIL: 110 KV
TAPS: 115500-112750-110000-107250-104500
LTC: 7590 TO 6210 IN 32 STEPS
TOTAL WEIGHT: 97,200 LBS.
CORE & COILS: 34,600 LBS.
TANK & FIT.: 32,400 LB.S
RADIATORS: 3,100 LBS. (410 GALS.)
MAIN TANK: 24,600 LBS. (3,315 GALS.)
LTC: 2,500 LBS. (345 GALS.)
60 HERTZ, CLASS OA/FA, 55/65 DEG. C RISE, 5.9% IMPEDANCE, COPPER
HIGH VOLTAGE: 110000 BIL: 550 KV
LOW VOLTAGE: 6900Y/3980 BIL: 110 KV
TAPS: 115500-112750-110000-107250-104500
LTC: 7590 TO 6210 IN 32 STEPS
TOTAL WEIGHT: 97,200 LBS.
CORE & COILS: 34,600 LBS.
TANK & FIT.: 32,400 LB.S
RADIATORS: 3,100 LBS. (410 GALS.)
MAIN TANK: 24,600 LBS. (3,315 GALS.)
LTC: 2,500 LBS. (345 GALS.)
