12000/16000 KVA, Pri 120000 D, Sec 4160Y/2400, 1987, CANADIAN GE, HV LTC:1

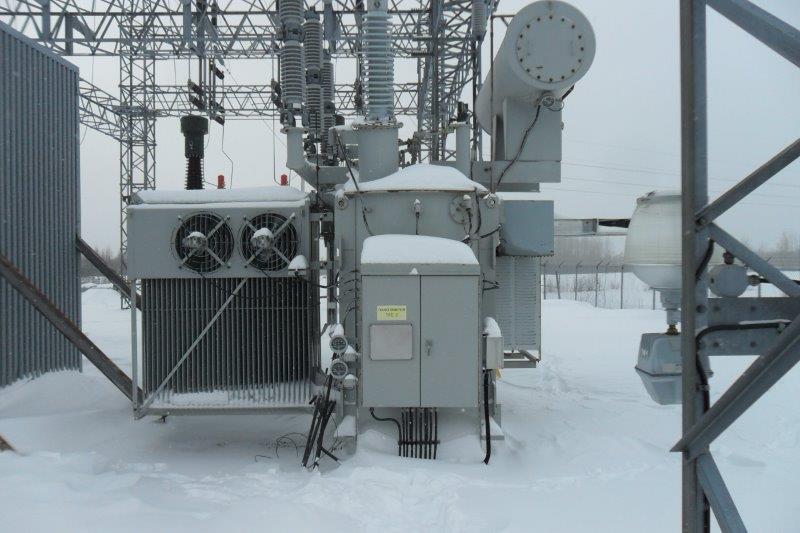

ONE (1) 12/16 MVA GE CANADIAN LOAD TAP CHANGING TRANSFORMER, 3 PHASE,
60 HERTZ, 65 DEG. C RISE, CLASS ONAN/ONAF, 6.7% IMPEDANCE, COPPER
WINDINGS, CONSERVATOR, HV TOP, LV SIDE BUSHINGS

HIGH VOLTAGE: 120000 DELTA BIL: 650 KV
LOW VOLTAGE: 4160Y/2400 BIL: 95 KV
TAPS: 138000 TO 102000 IN 32 STEPS

TOTAL WEIGHT: 80,249 LBS.
CORE & COILS: 30,755 LBS.
TANK & FIT.: 23,854 LBS.
OIL: 25,640 LBS. (3,624 GALS.)
DIMENSIONS: 225"H X 218 1/4"W X 201"L
SHIPPING: 164"H X 108"W X 201"L
51,000 LBS. WITHOUT OIL
