3000 Amp, CUTLER HAMMER, 150VCP-W500, 15 KV, 1997, E/O, D/O, 125 VDC, UNUSED:1
UNUSED VACUUM BREAKER
Product Number:
040986
Full Product Description
CB-18359:

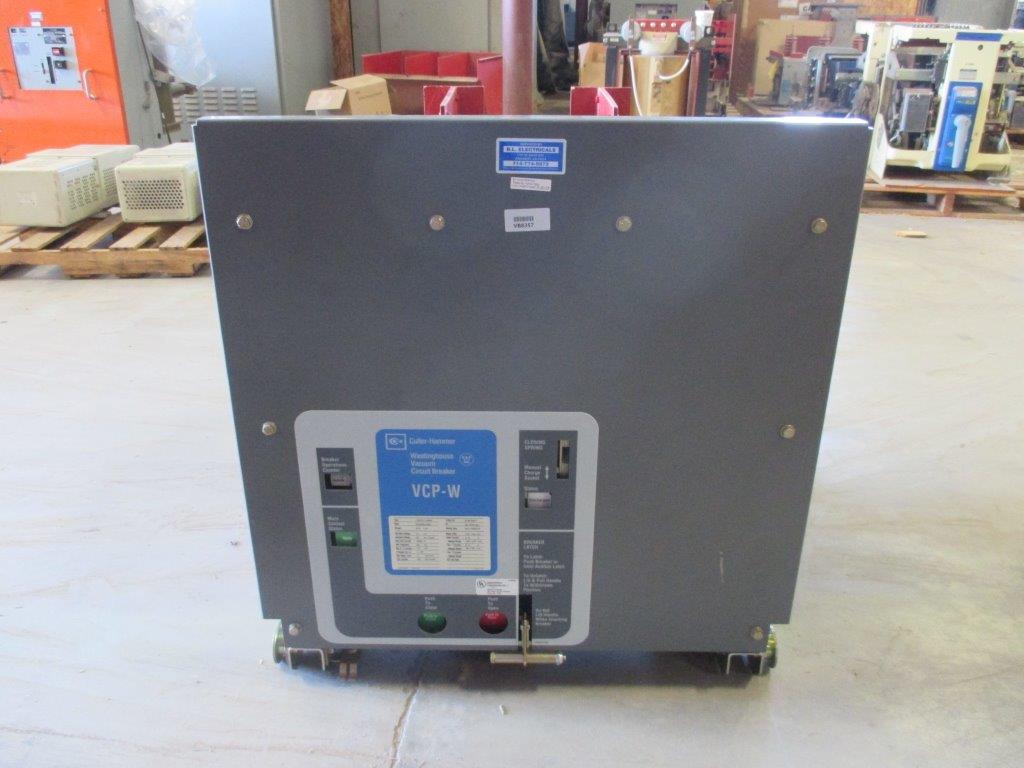

ONE (1) UNUSED 3000 AMP CUTLER HAMMER VACUUM CIRCUIT BREAKER

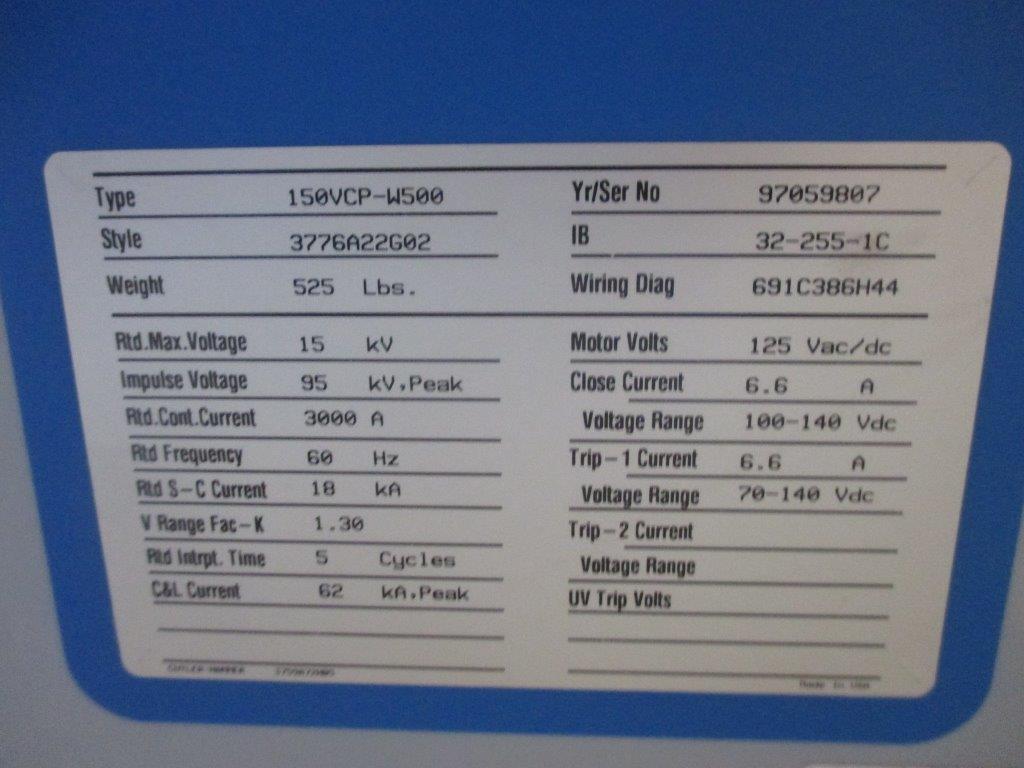

TYPE 150VCP-W500
STYLE 3776A22G02
15 KV MAX.
95 KV BIL
60 HERTZ
18 KA SHORT CIRCUIT
1.30 K-FACTOR
5 CYCLE INTERRUPT
ELECTRICALLY OPERATED
DRAW-OUT
125 VDC CLOSE & TRIP
125 VAC/VDC MOTOR
62 KA CLOSE & LATCH
WIRING DIAGRAM 691C386H44
525 LBS.
MFG. 1997
S/N 059807
IB #32-255-1C
