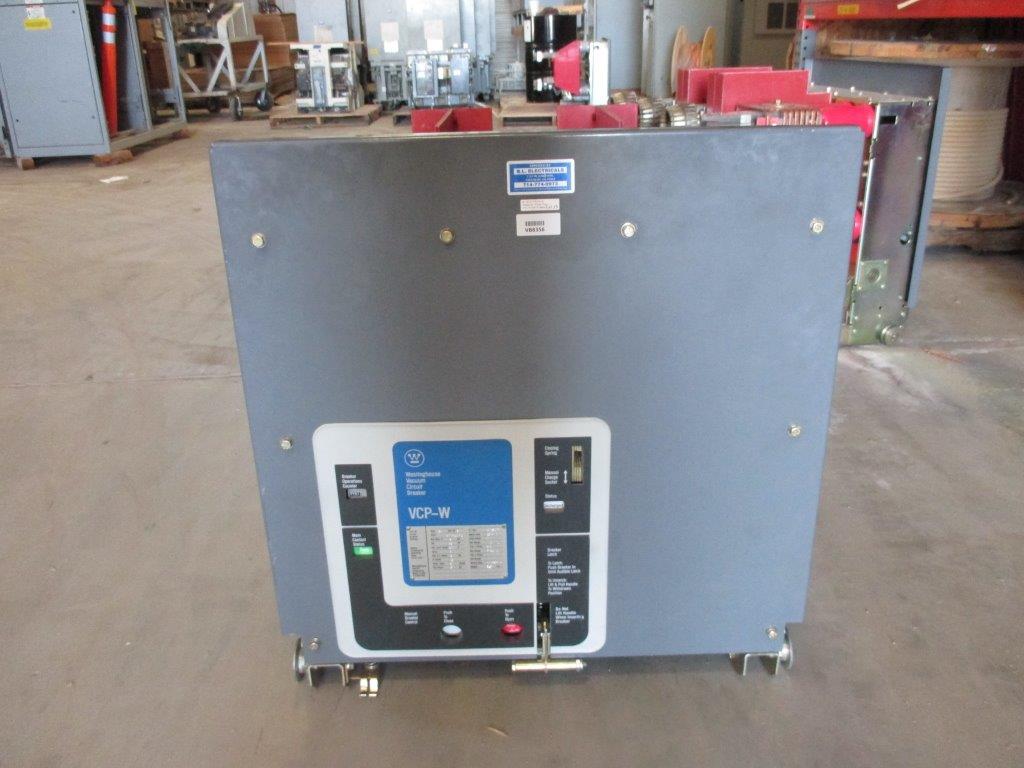

3000 Amp, WESTINGHOUSE, 150VCP-W500, 15 KV, 1989, E/O, D/O, 125 VDC, UNUSED:1
UNUSED VACUUM BREAKER
Product Number:
040985
Full Product Description
CB-18358:

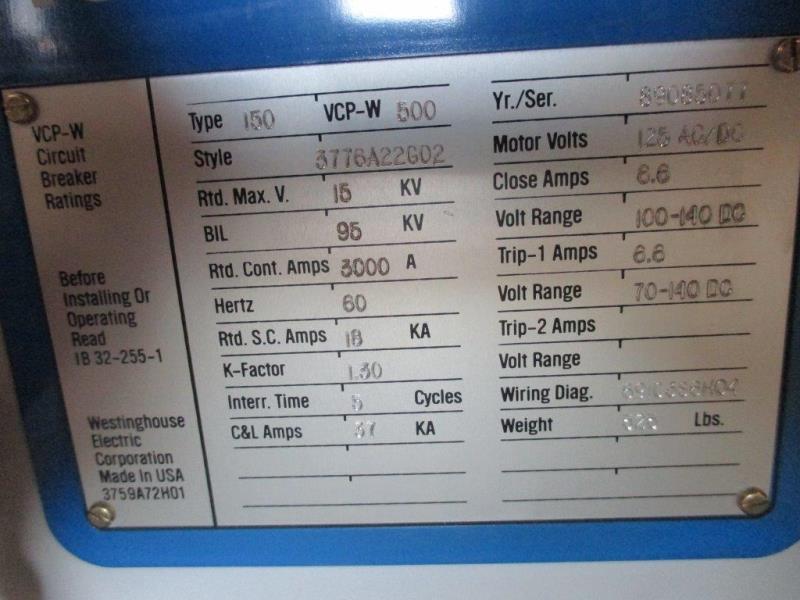

ONE (1) UNUSED 3000 AMP WESTINGHOUSE VACUUM CIRCUIT BREAKER
TYPE 150VCP-W500
STYLE 3776A22G02
15 KV MAX.
95 KV BIL
60 HERTZ
18 KA SHORT CIRCUIT
1.30 K-FACTOR
5 CYCLE INTERRUPT
ELECTRICALLY OPERATED
DRAW-OUT
125 VDC CLOSE & TRIP
125 VAC/VDC MOTOR
37 KA CLOSE & LATCH
WIRING DIAGRAM 691C386H04
525 LBS.
MFG. 1989
S/N 085077
IB #32-255-1C
