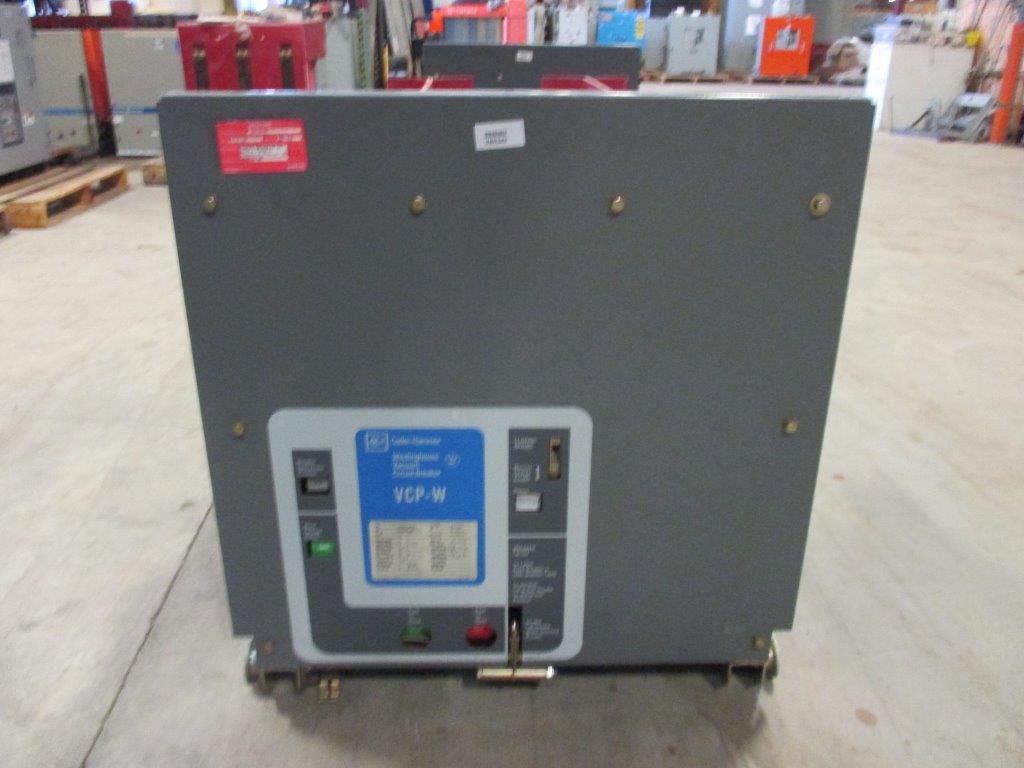

3000 Amp, CUTLER HAMMER, 150VCP-W750, 15 KV, 1997, E/O, D/O, 125 VDC:1
VACUUM BREAKER
Product Number:
040984
Full Product Description
CB-18357:

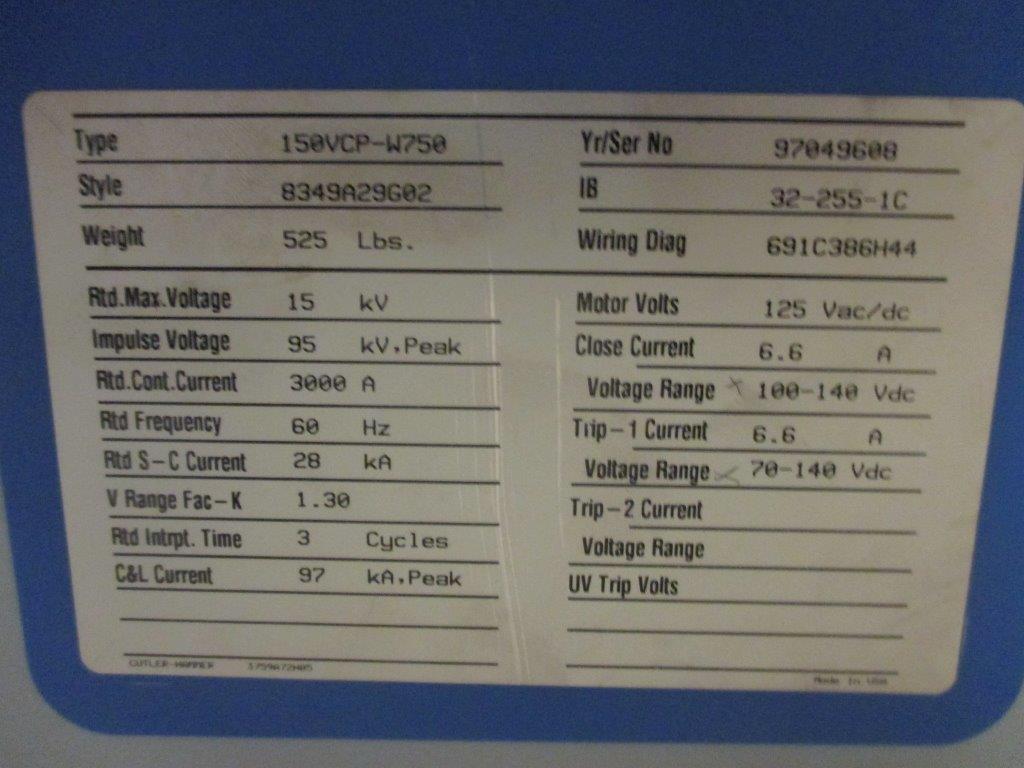

ONE (1) 3000 AMP CUTLER-HAMMER VACUUM CIRCUIT BREAKER
TYPE 150VCP-W750
STYLE 8349A29G02
15 KV MAX.
95 KV BIL
60 HERTZ
28 KA SHORT CIRCUIT
1.30 K-FACTOR
3 CYCLE INTERRUPT
ELECTRICALLY OPERATED
DRAW-OUT
125 VDC CLOSE & TRIP
125 VAC/VDC MOTOR
97 KA CLOSE & LATCH
WIRING DIAGRAM 691C386H44
525 LBS.
MFG. 1997
165 OPERATIONS
S/N 049608
IB #32-255-1C
