Full Product Description
CPT-179ABC:

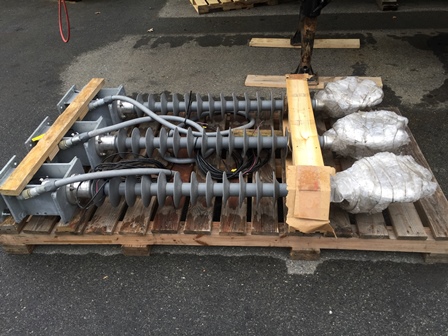

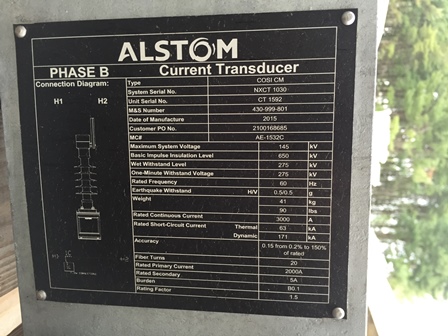

ALSTOM COSI CM CURRENT TRANSDUCER
PHASE B
145 KV MAX. SYSTEM VOLTAGE
650 KV BIL
275 KV WET WITHSTAND LEVEL
275 KV ONE-MINUTE WITHSTAND VOLTAGE
5 AMP SECONDARY
2000 AMP RATED PRIMARY CURRENT
3000 AMP RATED CONTINUOUS CURRENT
ACCURACY 0.15 FROM 0-2% TO 150% OF RATED
BURDEN B.01
RATING FACTOR 1.5
63 KA SHORT CIRCUIT THERMAL
171 KA SHORT-CIRCUIT DYNAMIC
60 HERTZ
90 LBS.
CPT-179A: S/N CT 1591
CPT-179B: S/N CT 1592
CPT-179C: S/N CT 1593
ALSTOM COSI CM CURRENT TRANSDUCER
PHASE B
145 KV MAX. SYSTEM VOLTAGE
650 KV BIL
275 KV WET WITHSTAND LEVEL
275 KV ONE-MINUTE WITHSTAND VOLTAGE
5 AMP SECONDARY
2000 AMP RATED PRIMARY CURRENT
3000 AMP RATED CONTINUOUS CURRENT
ACCURACY 0.15 FROM 0-2% TO 150% OF RATED
BURDEN B.01
RATING FACTOR 1.5
63 KA SHORT CIRCUIT THERMAL
171 KA SHORT-CIRCUIT DYNAMIC
60 HERTZ
90 LBS.
CPT-179A: S/N CT 1591
CPT-179B: S/N CT 1592
CPT-179C: S/N CT 1593
