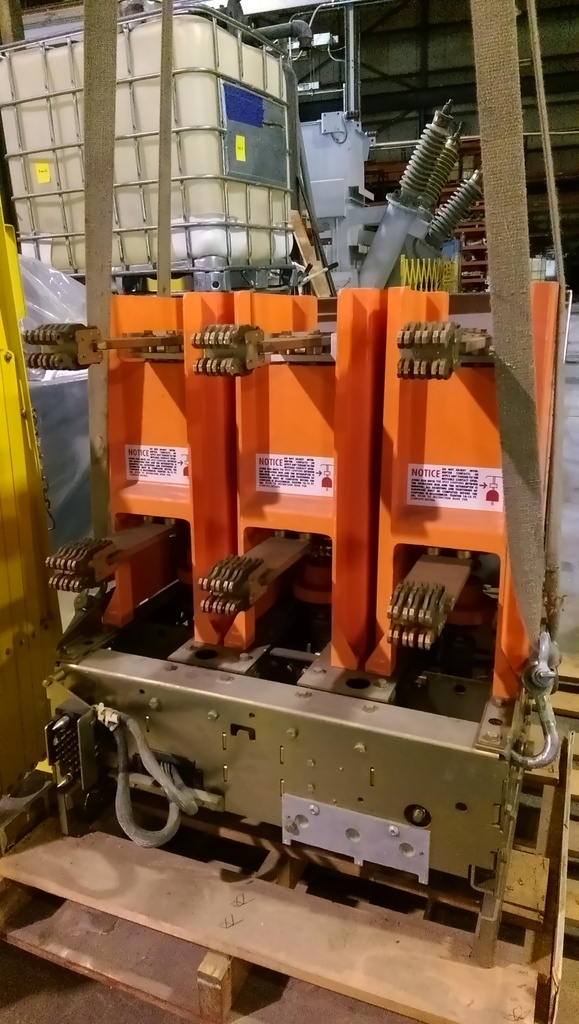

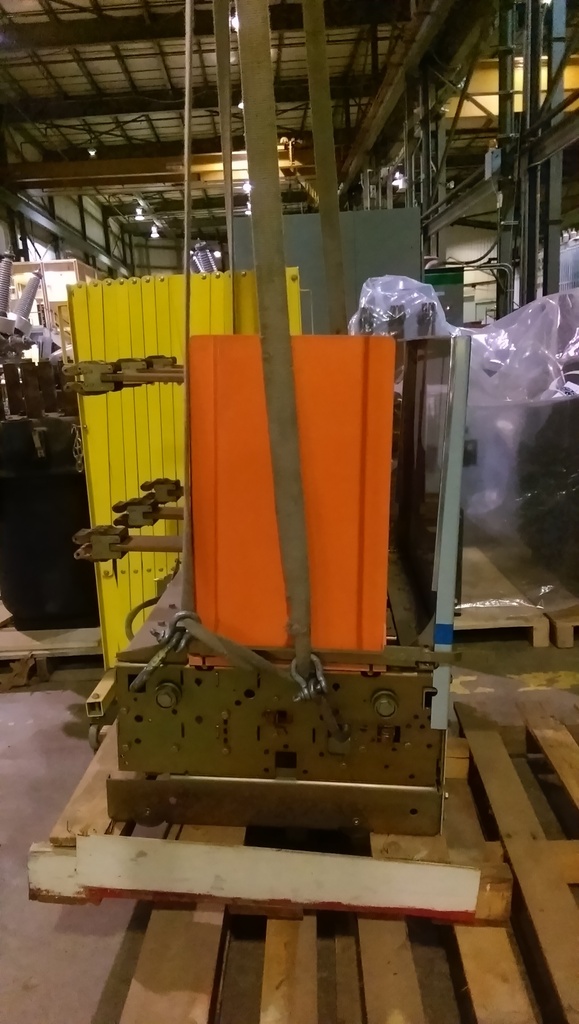

1200 Amp, GENERAL ELECTRIC, VB1-13.8-750-2, 15 KV, ML-18 MECHANSIM:
VACUUM CIRCUIT BREAKER
Product Number:
040968
Full Product Description

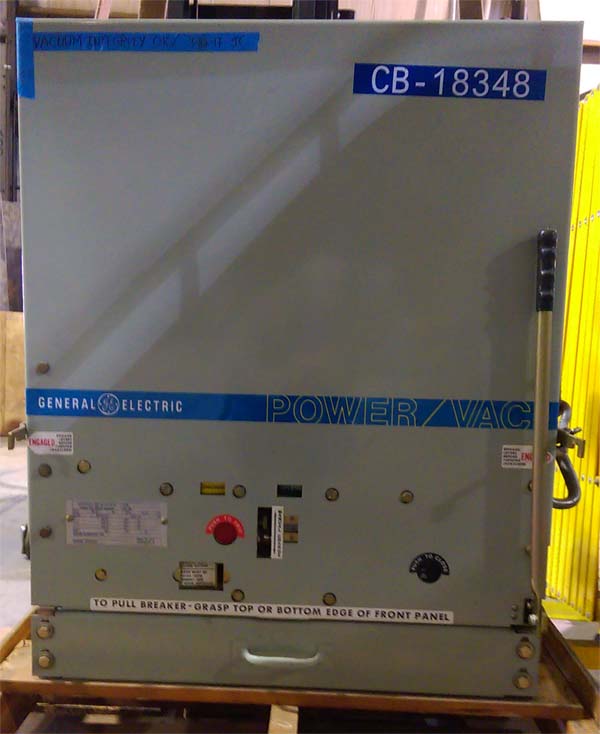

CB-18348

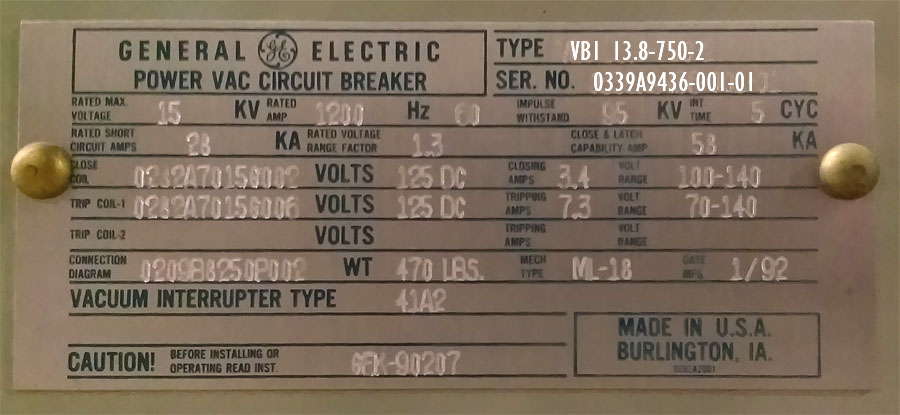

ONE (1) 1200 AMP GENERAL ELECTRIC VACUUM CIRCUIT BREAKER
TYPE VB1-13.8-750-2
15 KV MAX. VOLTAGE
60 HERTZ
95 KV BIL
5 CYCLE INTERRUPT
28 KA SHORT CIRCUIT
1.3 KA RANGE FACTOR
58 KA CLOSE & LATCH
125 VDC CLOSE & TRIP
CONNECTION DIAGRAM: 0209B8250P002
WEIGHT: 470 LBS.
ML-18 MECHANISM
41A2 VACUUM INTERRUPTER TYPE
IB:GEK-90207
ONE (1) 1200 AMP GENERAL ELECTRIC VACUUM CIRCUIT BREAKER
TYPE VB1-13.8-750-2
15 KV MAX. VOLTAGE
60 HERTZ
95 KV BIL
5 CYCLE INTERRUPT
28 KA SHORT CIRCUIT
1.3 KA RANGE FACTOR
58 KA CLOSE & LATCH
125 VDC CLOSE & TRIP
CONNECTION DIAGRAM: 0209B8250P002
WEIGHT: 470 LBS.
ML-18 MECHANISM
41A2 VACUUM INTERRUPTER TYPE
IB:GEK-90207
