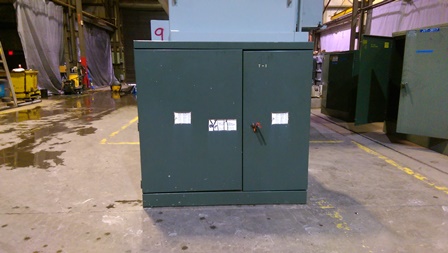

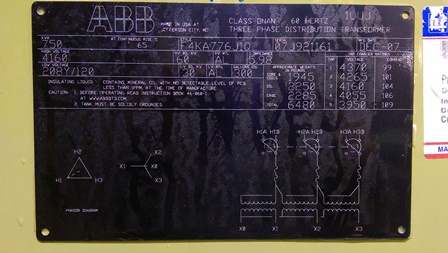

750 KVA, Pri 4160 D, Sec 208Y/120, ABB, DEAD FRONT, LOOP FEED, FUSED
PADMOUNT TRANSFORMER
Product Number:
040927
Full Product Description
JVT-3622
ONE (1) 750 KVA ABB COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE, 60 HERTZ,
CLASS ONAN, 65 DEG. C RISE, 5.98% IMPEDANCE, DEAD FRONT, LOOP FEED,

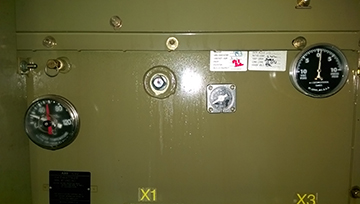

ALUMINUM WINDINGS, DRAIN & SAMPLE VALVE, LIQUID TEMPERATURE GAUGE,
LIQUID LEVEL GAUGE, PRESSURE VACUUM GAUGE, BAY-O-NET FUSES, A/B
SWITCH, MFG. 2007, S/N 07J921161
HIGH VOLTAGE: 4160 DELTA BIL: 60 KV

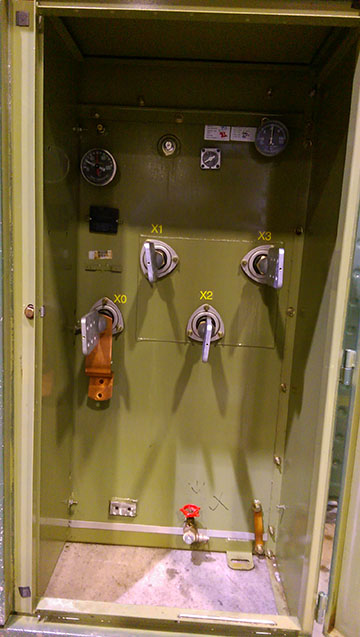

LOW VOLTAGE: 208Y/120 BIL: 30 KV
TAPS: 4370-4265-4160-4055-3950
TOTAL WEIGHT: 6,480 LBS.
CORE & COILS: 1,945 LBS.
TANK & FIT.: 2,285 LBS.
OIL: 2,250 LBS. (300 GALS.)
DIMMS: 63.5"H x 62" W x 66"D
