300 KVA, Pri 4160 D, Sec 208Y/120, 2011, SQUARE D, DEAD/RADIAL, BIOTEMP:1
PADMOUNT TRANSFORMER
Product Number:
040926
Full Product Description
JVT-3621
ONE (1) 300 KVA SQUARE D COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS KNAN, 65 DEG. C RISE, 4.01% IMPEDANCE, DEAD FRONT,
RADIAL FEED, COPPER WINDINGS, DRAIN & SAMPLE VALVE, LIQUID

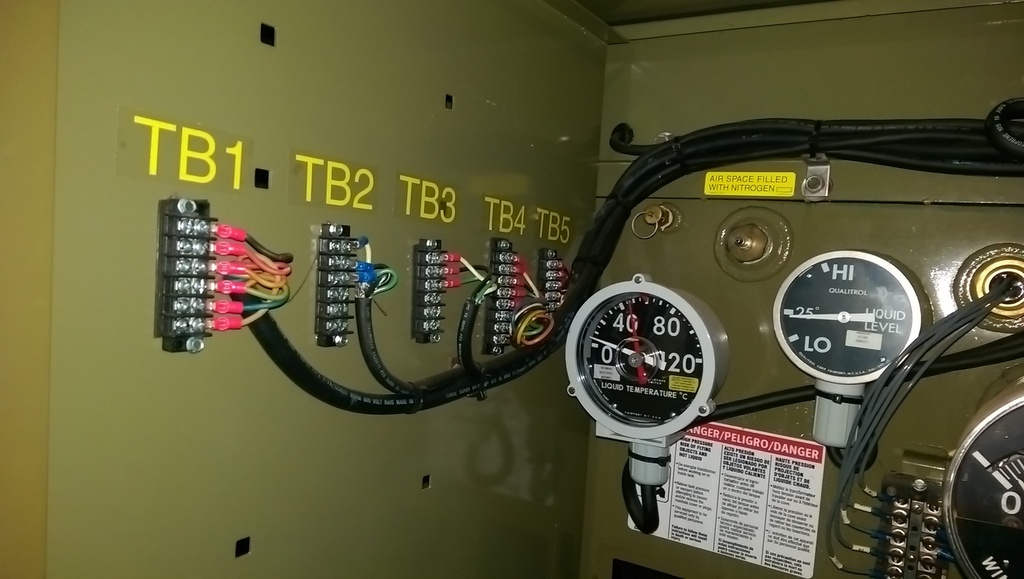

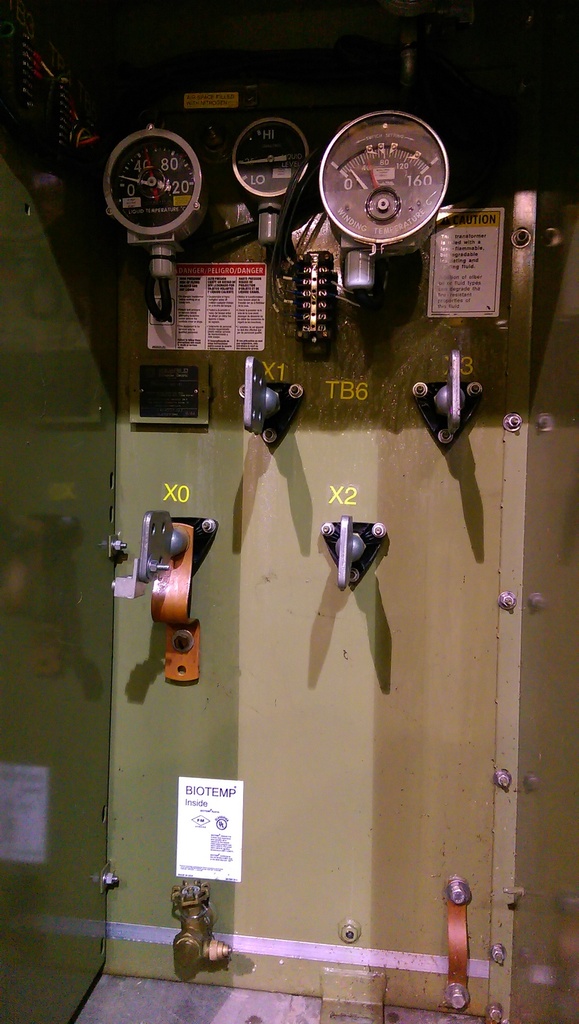

TEMPERATURE GAUGE, LIQUID LEVEL GAUGE, PRESSURE VACUUM GAUGE,

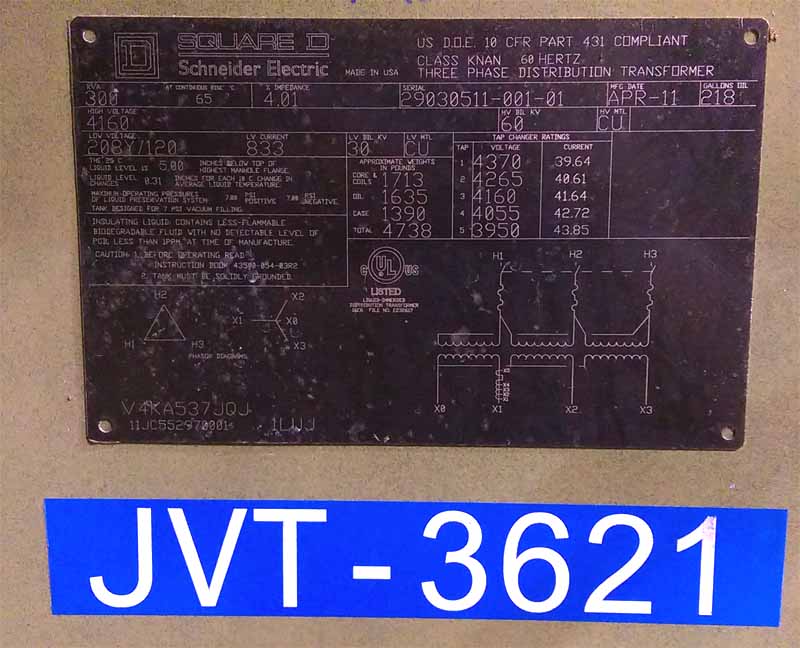

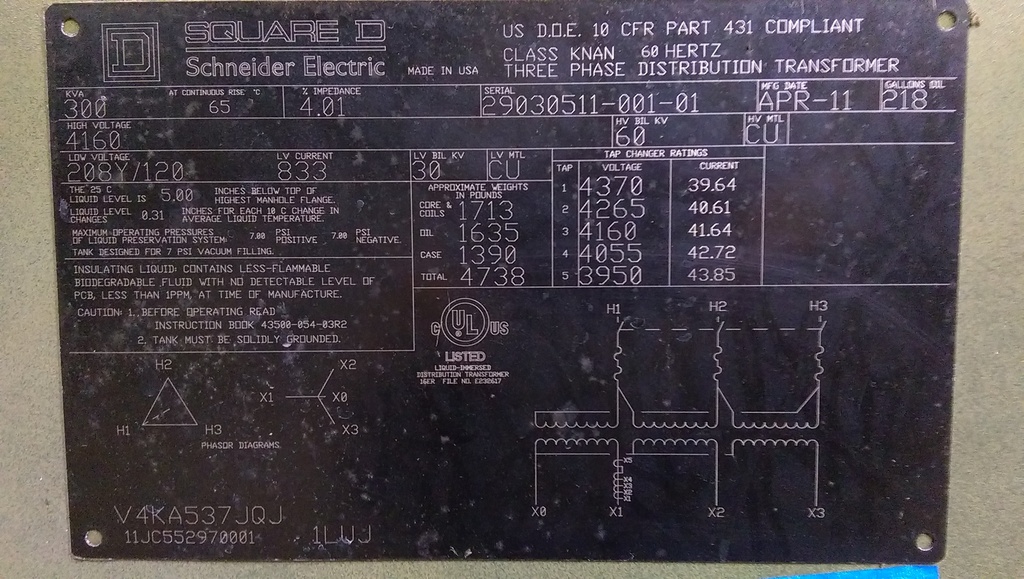

BIOTEMP FUEL, MFG. 2011, S/N 29030511-001-01
HIGH VOLTAGE: 4160 DELTA BIL: 60 KV
LOW VOLTAGE: 208Y/120 BIL: 30 KV
TAPS: 4370-4265-4160-4055-3950
TOTAL WEIGHT: 4,738 LBS.
CORE & COILS: 1,713 LBS.
TANK & FIT.: 1,390 LBS.
OIL: 1,635 LBS. (218 GALS.)
