750 KVA, Pri 4160 D, Sec 208Y/120, HOWARD, DEAD FRONT, RADIAL FEED

JVT-3620

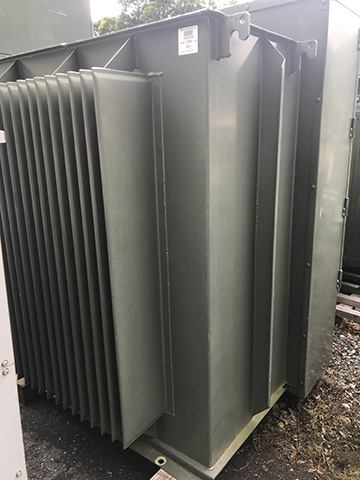

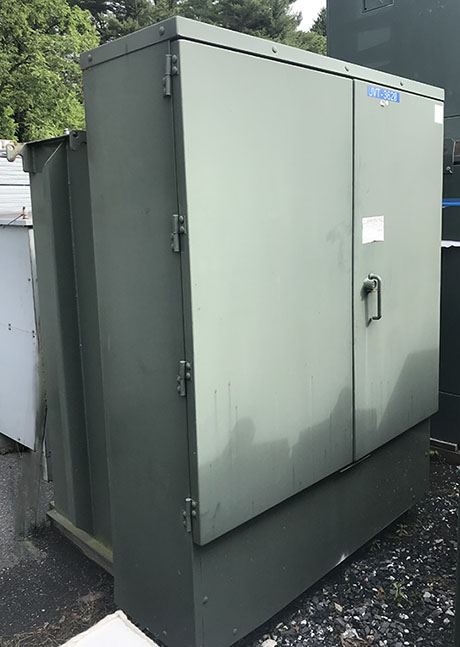

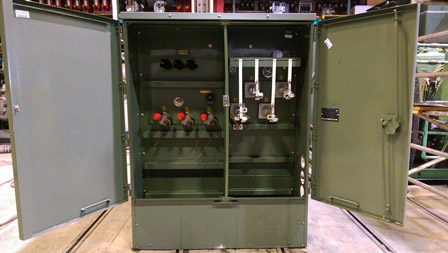

ONE (1) 750 KVA HOWARD COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS ONAN, 65 DEG. C RISE, 5.7% IMPEDANCE, DEAD FRONT,
RADIAL FEED, ALUMINUM WINDINGS, DRAIN & SAMPLE VALVE, LIQUID
TEMPERATURE GAUGE, LIQUID LEVEL GAUGE, PRESSURE VACUUM GAUGE,

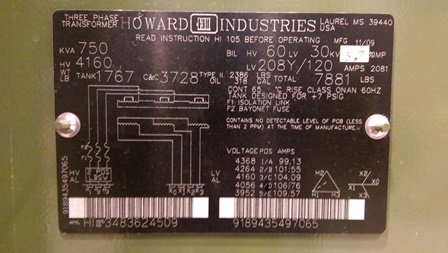

BAY-O-NET FUSES, OPEN/CLOSE SWITCH, MFG. 2009, S/N 3483624509

HIGH VOLTAGE: 4160 DELTA BIL: 60 KV
LOW VOLTAGE: 208Y/120 BIL: 30 KV
TAPS: 4368-4264-4160-4056-3952

TOTAL WEIGHT: 7,881 LBS.
CORE & COILS: 1,767 LBS.
TANK & FIT.: 3,728 LBS.
OIL: 2,386 LBS. (318 GALS.)

DIMS: 77.5"H x 60"W x 59"D
