11200/14000 KVA, Pri 67000 D, Sec 12470 Y, GENERAL ELECTRIC, COPPER WINDINGS

JVT-3628

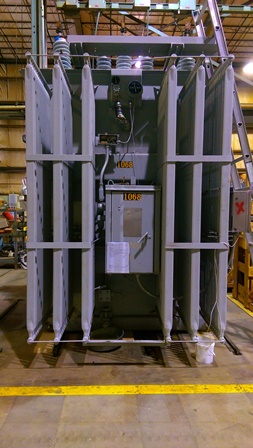

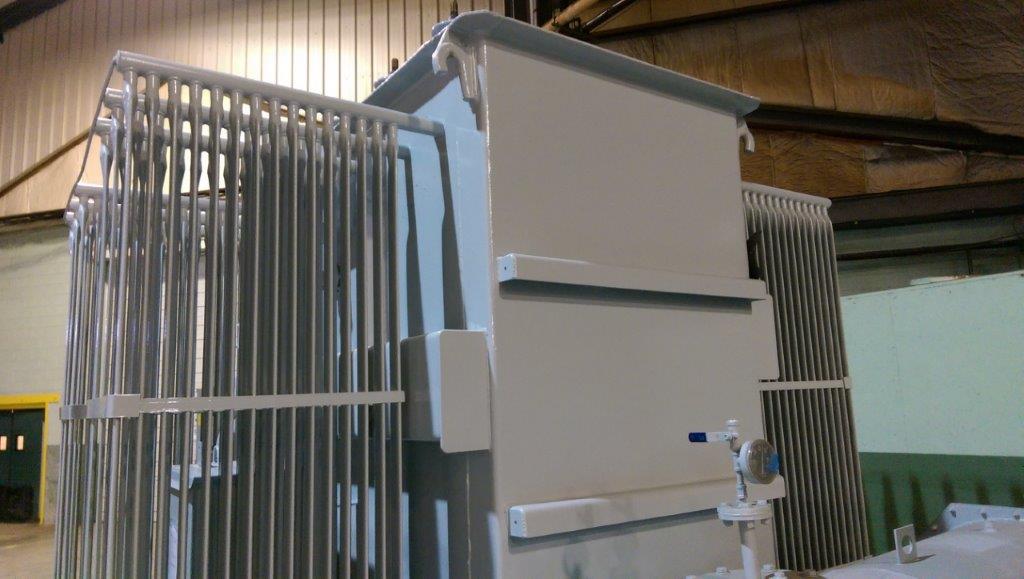

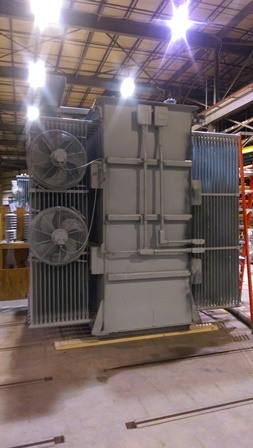

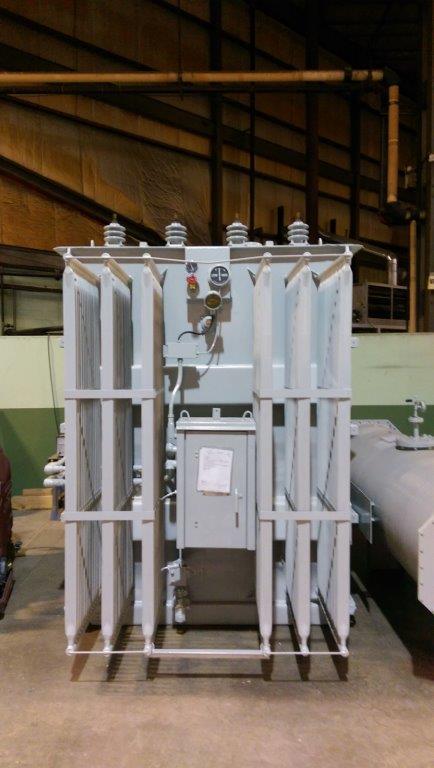

ONE (1) 11200/14000 KVA GENERAL ELECTRIC SUBSTATION TRANSFORMER
CLASS 0A/FA, 65 DEG. C RISE, 8.2% IMPEDANCE, COPPER WINDINGS,
HV & LV COVER MOUNTED, SERIAL# M162331D

HV: 67000 DELTA BIL: 350 KV
LV: 12470/7200 WYE BIL: 110 KV
TAPS: 70600-68800-67000-65200-63400

TOTAL WEIGHT: 42,640 LBS.
CORE & COIL: 23,850 LBS.
TANK & FITTINGS: 9,290 LBS.
FLUID - OIL: 9,500 LBS. (GALS. 1280)

DIMENSIONS: 158"H X 118.5"W X 100"D
