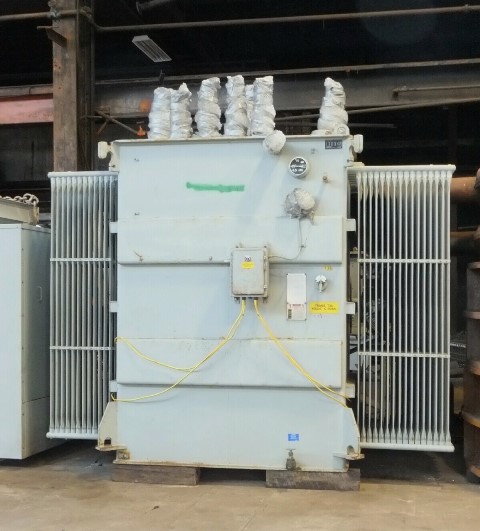

7500/10500 KVA, Pri 34400 D, Sec 4360Y/2520, 1994, ABB, COPPER:1
SUBSTATION TRANSFORMER
Product Number:
040896
Full Product Description

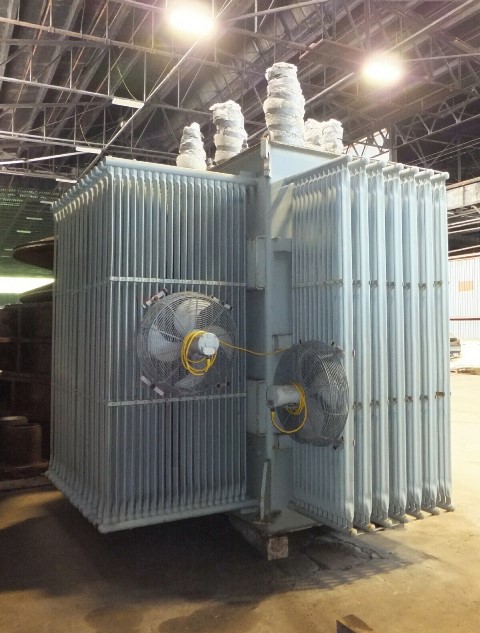

ONE (1) 7500/8400/9375/10500 KVA ABB SUBSTATION TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA/FA, 55/65 DEG. C RISE, 8,50% IMPEDANCE,
COPPER WINDINGS, TOP X TOP BUSHINGS, MFG. 1994
HIGH VOLTAGE: 34400 DELTA BIL: 200 KV
LOW VOLTAGE: 4360Y/2520 BIL: 75 KV
TAPS: 36200-35300-34400-33500-32600
TOTAL WEIGHT: 37,107 LBS.
CORE & COILS: 16,449 LBS.
TANK & FIT.: 10,001 LBS.
FLUID: 10,657 LBS. (1,421 GALS.)
60 HERTZ, CLASS OA/FA, 55/65 DEG. C RISE, 8,50% IMPEDANCE,
COPPER WINDINGS, TOP X TOP BUSHINGS, MFG. 1994
HIGH VOLTAGE: 34400 DELTA BIL: 200 KV
LOW VOLTAGE: 4360Y/2520 BIL: 75 KV
TAPS: 36200-35300-34400-33500-32600
TOTAL WEIGHT: 37,107 LBS.
CORE & COILS: 16,449 LBS.
TANK & FIT.: 10,001 LBS.
FLUID: 10,657 LBS. (1,421 GALS.)
