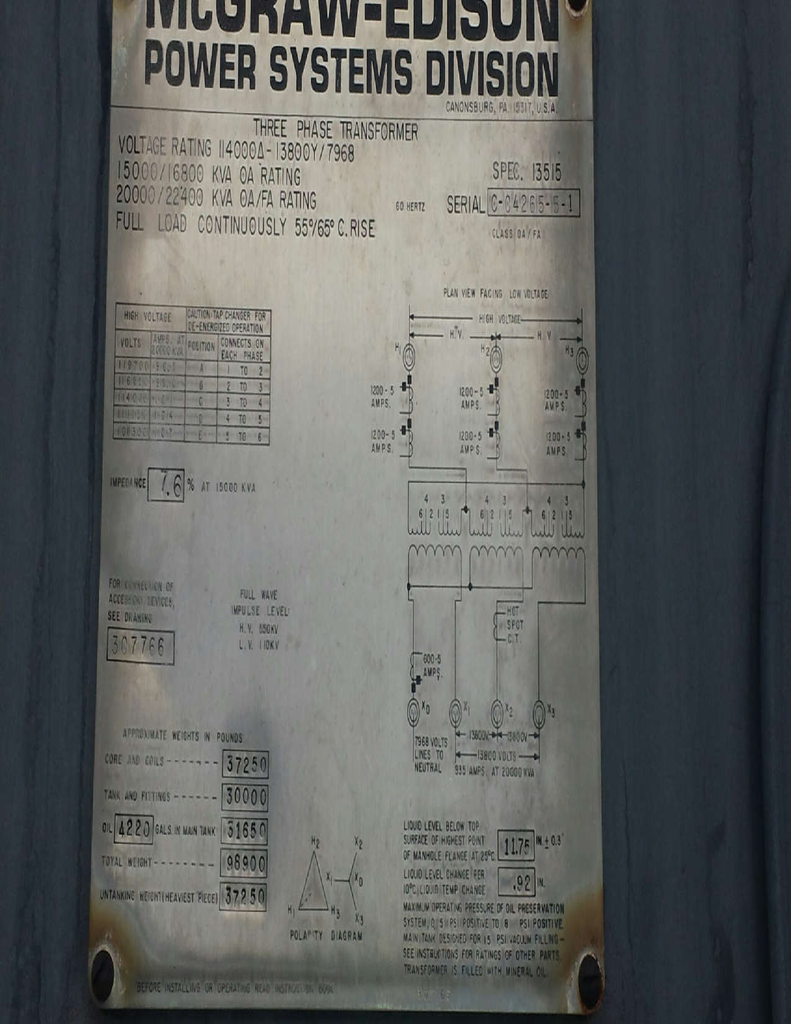

15000/22400 KVA, Pri 114000 D, Sec 13800Y/7968, 1971, MCGRAW-EDISON:2

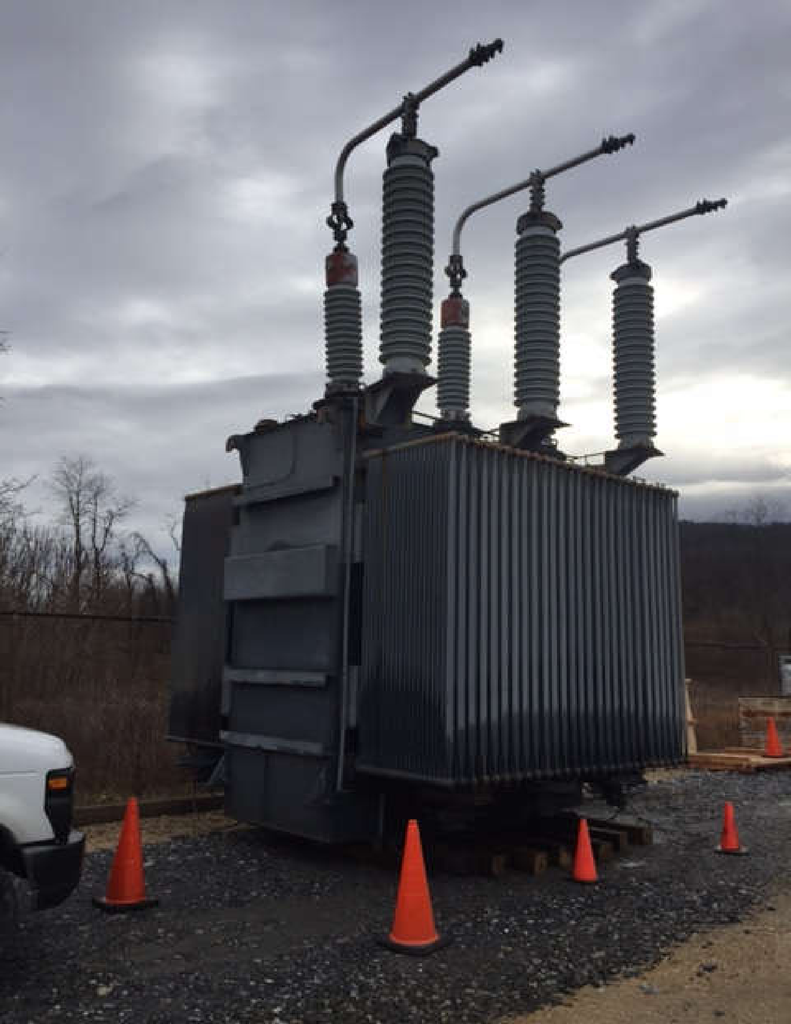

ONE (1) 15/16.8/20/22.4 MVA MCGRAW-EDISON SUBSTATION TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA/FA, 55/65 DEG. C RISE, 7.6% IMPEDANCE, 6 X 1200:5
HV MRCT'S, 1 X 600:5 NEUTRAL MRCT, DETACHABLE RADIATORS, PRESSURE
RELIEF DEVICE WITH CONTACTS, TOP FILTER VALVE, DRAIN & FILTER VALVE
WITH SAMPLING, DIAL TYPE THERMOMETER WITH CONTACTS, OIL GAUGE WITH
CONTACTS, SUDDEN PRESSURE RELAY, 3 X HV 120 KV STATION TYPE ARRESTERS,
3 X LV 15 KV STATION TYPE ARRESTERS, TOP X TOP BUSHINGS

HIGH VOLTAGE: 114000 DELTA BIL: 550 KV
LOW VOLTAGE: 13800Y/7968 BIL: 110 KV
TAPS: 119700-116850-114000-111150-108300

TOTAL WEIGHT: 98,900 LBS.
CORE & COILS: 37,250 LBS.
TANK & FIT.: 30,000 LBS.
OIL: 31,650 LBS. (4,220 GALS.)
DIMENSIONS: 235 1/2"H X 162"W X 150"L
SHIPPING: 170"H X 99 1/2"W X 148"L
WEIGHT: 79,700 LBS.
