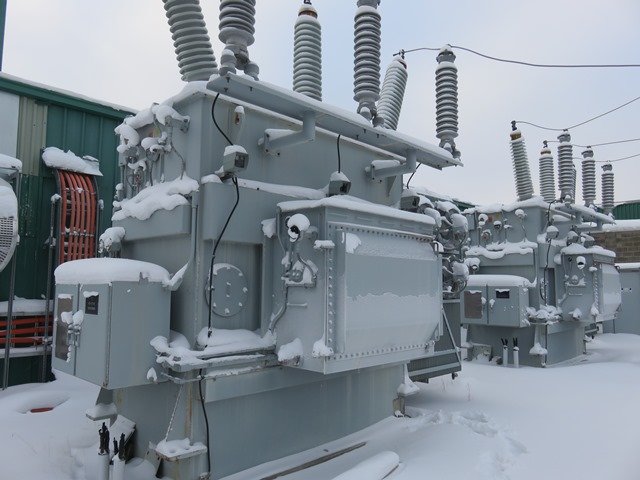

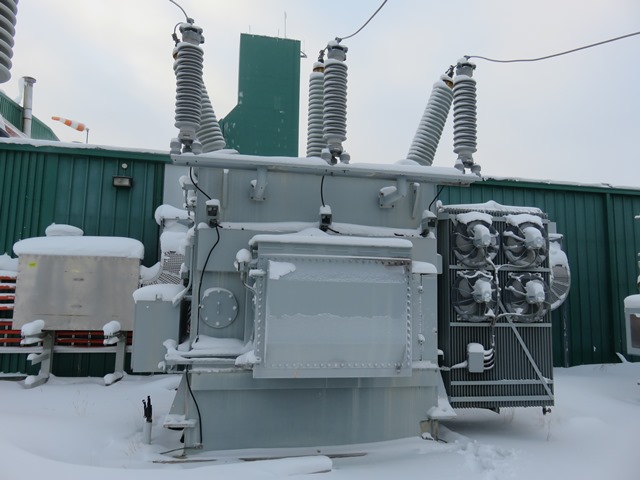

10000/15000 KVA, Pri 138000 D, Sec 4160 Y, 1998, FERRANTI-PACKARD, LTC:2

ONE (1) 10/12.5/13.3/15 MVA FERRANTI-PACKWARD LOAD TAP CHANGING TRANSFORMERS,
3 PHASE, 60 HERTZ, CLASS ONAN/ONAF, 55/65 DEG. C RISE, 6.38% IMP.

HIGH VOLTAGE: 138000 DELTA
LOW VOLTAGE: 4160 WYE
HV TAPS: 144900 TO 117300 IN 32 STEPS

TOTAL WEIGHT: 80579 LBS.
CORE & COILS: 26863 LBS.
TANK & FIT.: 19092 LBS.
RADIATORS: 4806 LBS. (REMOVABLE)
FLUID:
TRANSFORMER 25298 LBS. (3477 GALS.)
RADIATORS 1752 LBS. (240 GALS.)
LTC 2767 LBS. (380 GALS.)
DIMENSIONS: 147"H X 123"D X 227"L (WITH RADIATORS)
