1000/1120 KVA, Pri 13800 D, Sec 480Y/277, BALTEAU, OA-FFA, AL WINDINGS:
DISTRIBUTION TRANSFORMER
Product Number:
040856
Full Product Description
JVT-3612

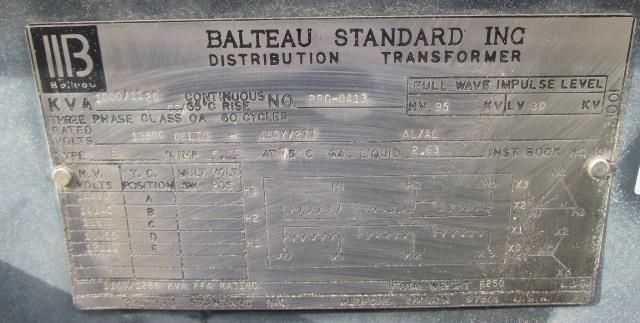

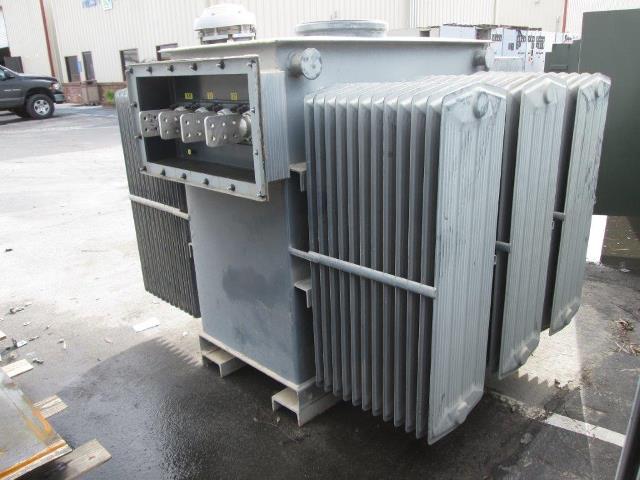

ONE (1) 1000/1120 KVA Balteau Distribution Transformer
Three Phase, 60 Hertz, Class OA/FFA, Aluminum Windings
55/65 Deg. C Rise, Type B, Impedance 5.65% at 75 Deg. C

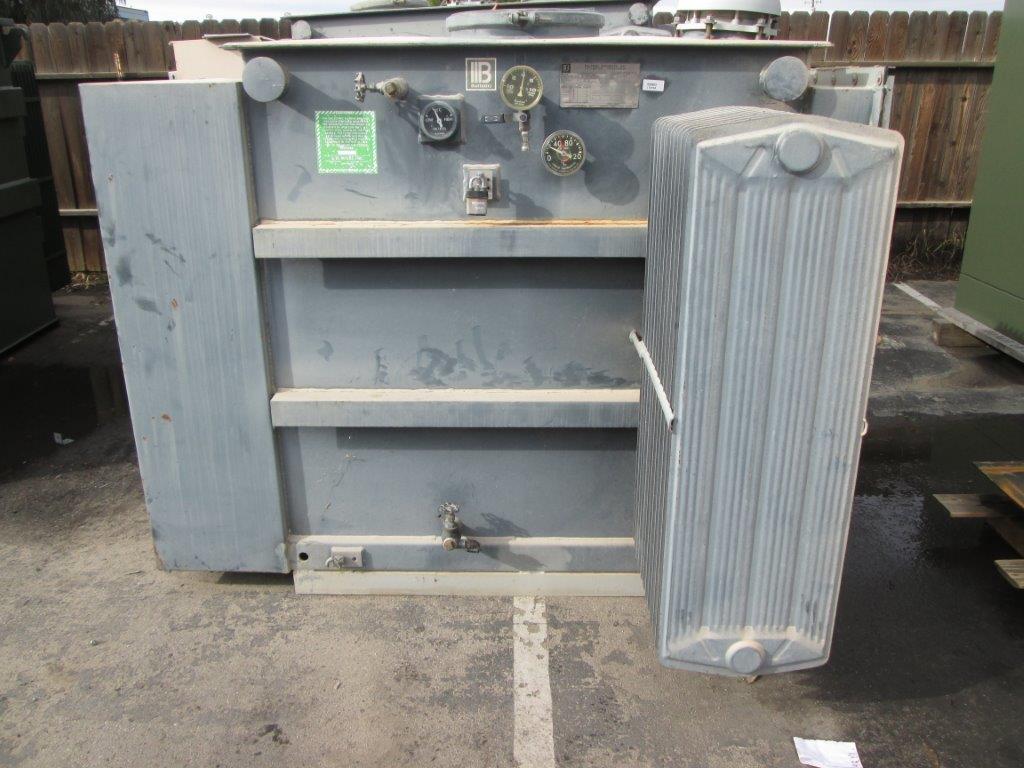

Vacuum Pressure Gauge, Liquid Temperature Gauge, Inst. Book No. 10
Liquid Level Gauge, Pressure Relief Device, Serial No. PPG-0413
Drain and Test Valve
HV: 13800 Delta HV BIL: 95 KV

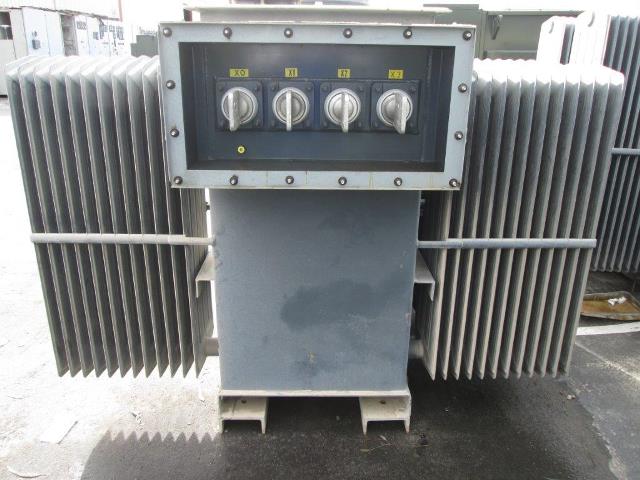

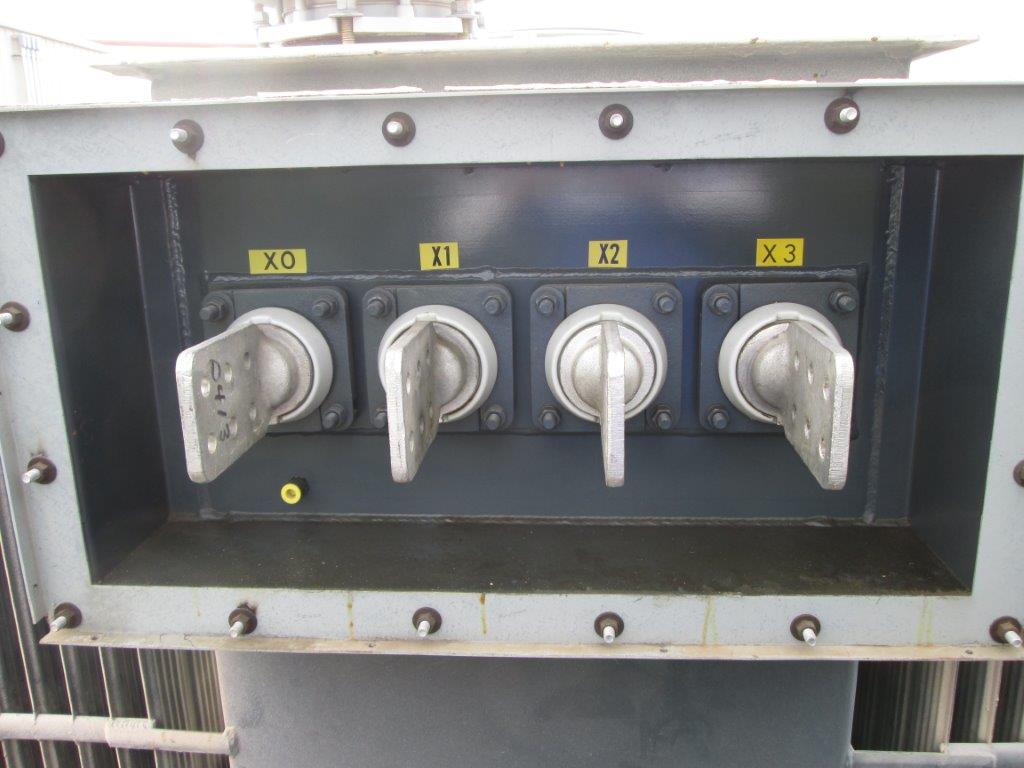

LV: 480Y/277 LV BIL: 30 KV
Taps: 14490 - 14145 - 13800 - 13455 - 13110
Total Weight: 6250 lbs.
Dimensions:
