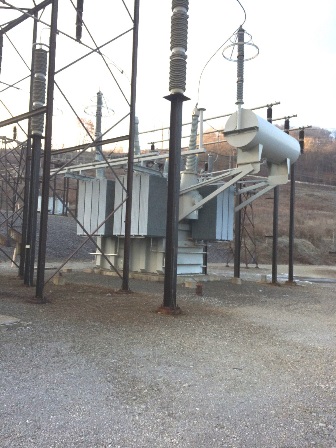

230/266 MVA, Pri 345000GRD Y/199186, Sec 138000GRD Y/79674, 2010, ABB, COPPER:1

ONE (1) 230/266 MVA ABB AUTO TRANSFORMER, 3 PHASE, 60 HERTZ, CLASS ONAN,
55/65 DEG. C RISE, 7.07% IMPEDANCE, COPPER WINDINGS, 6 X 2000:5 HV
MRCT'S C800, 3 X 2000:5 LV MRCT'S C800 AT 1200:5, TOP X TOP BUSHINGS,
3 X HV ARRESTERS, 3 X LV ARRESTERS, MECHANICAL RELIEF DEVICE WITH
CONTACTS, LIQUID TEMPERATURE GAUGE WITH CONTACTS, LIQUID TEMPERATURE
INDICATOR, UPPER FILTER PRESS CONNECTION, DRAIN & SAMPLE VALVE, FAULT
PRESSURE RELAY, LIQUID LEVEL GAUGE WITH CONTACTS, PRESSURE VACUUM
GAUGE, MFG. 2010

HIGH VOLTAGE: 345000 GRD. Y/199186 BIL: 1050 KV
LOW VOLTAGE: 138000 GRD. Y/79674 BIL: 550 KV
TAPS: 362250-353625-345000-336375-327750

TOTAL WEIGHT: 414,900 LBS.
CORE & COILS: 177,300 LBS.
TANK & FIT.: 105,402 LBS.
COPS TANK: 5,181 LBS. (W/O OIL)
MAIN OIL: 112,706 LBS. (15,290 GALS.)
COPS TANK OIL: 5,774 LBS. (784 GALS.)
RADIATOR OIL: 8,539 LBS. (1,159 GALS.)
DIMENSIONS: 279"H X 312.69"W X 544.85"L
SHIPPING: 190.1"H X 142.34"W X 309.86"L
