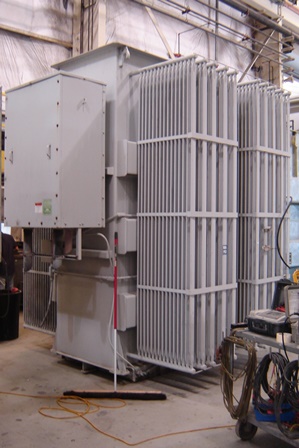

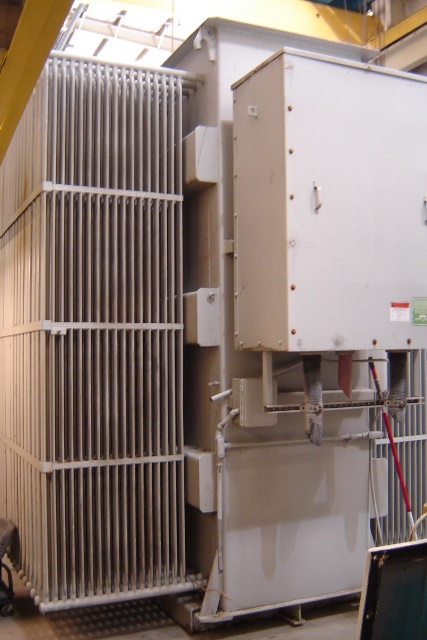

10000/14000 KVA, Pri 12470 D, Sec 4160Y/2400, GENERAL ELECTRIC, ALUIMINUM

ONE (1) 10/12.5/14 MVA GENERAL ELECTRIC SUBSTATION TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS ONAN/ONAF/ONAF, 55/65 DEG. C RISE, 5.78% IMPEDANCE,
ALUMINUM WINDINGS, CIRCULAR/DISK WOUND, HV SIDE IN PARTIAL ATC,
LV SIDE IN PARTIAL ATC, DRAIN AND SAMPLE VALVE, DIAL TYPE THERMOMETER,
LIQUID LEVEL GAUGE WITH CONTACTS, PRESSURE VACUUM GAUGE, PRESSURE
RELIEF VALVE, WINDING TEMPERATURE INDICATOR, AUXILIARY CONTROL
CABINET

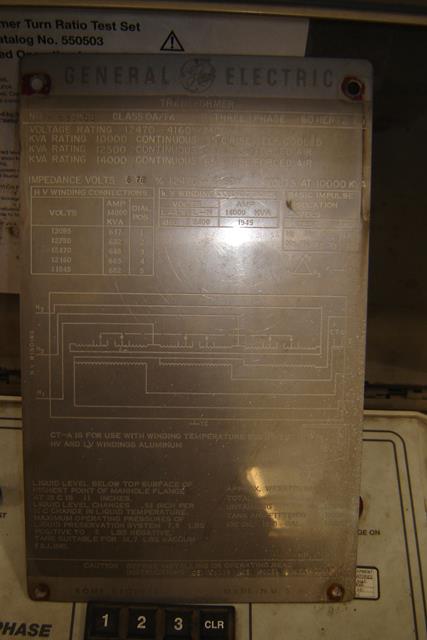

HIGH VOLTAGE: 12470 DELTA BIL: 110 KV
LOW VOLTAGE: 4160Y/2400 BIL: 75 KV
TAPS: 13095-12780-12470-12160-11845

TOTAL WEIGHT: 47,700 LBS.
CORE & COILS: 20,800 LBS.
TANK & FIT.: 13,000 LBS.
FLUID: 13,900 LBS. (1,870 GALS.)
DIMENSIONS: 148"H X 149"W X 117"D
FLANGE-FLANGE: 97"
