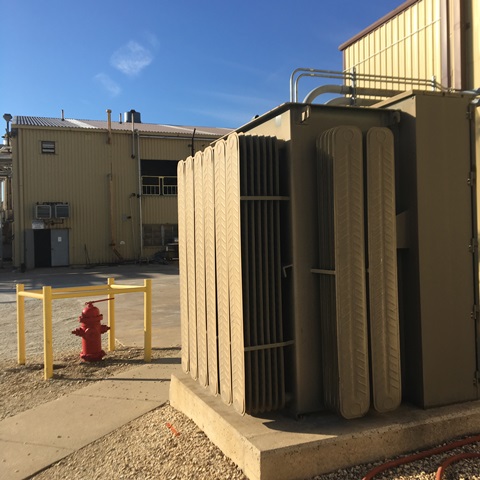

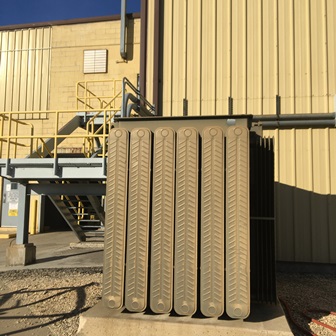

2500 KVA, Pri 4160Y/2400, Sec 480 D, GENERAL ELECTRIC, LIVE FRONT, RADIAL FEED
PADMOUNT TRANSFORMER
Product Number:
040836
Full Product Description
ONE (1) 2500 KVA GENERAL ELECTRIC COMPARTMENTALIZED PADMOUNT
TRANSFORMER,
3 PHASE, 60 HERTZ, CLASS OA, 65 DEG. C RISE, 5.76%
IMPEDANCE,
ALUMINUM WINDINGS, LIVE FRONT, RADIAL FEED, DRAIN &
SAMPLE VALVE,
DIAL TYPE THERMOMETER, LIQUID LEVEL GAUGE, PRESSURE
RELIEF VALVE,

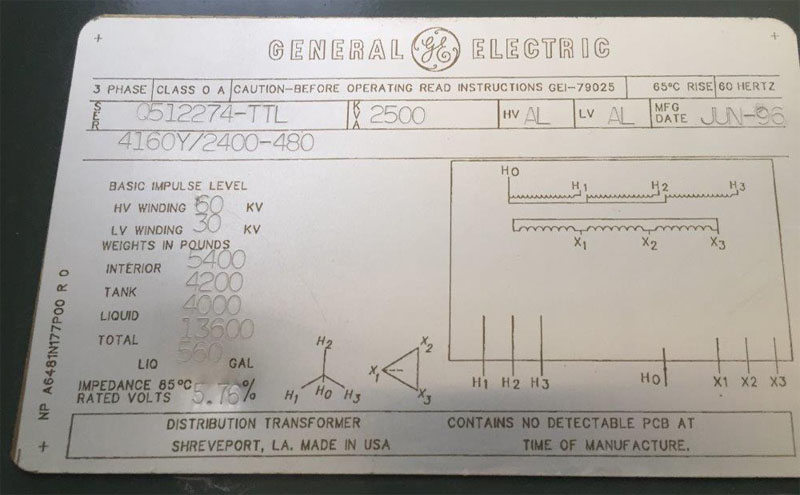

S/N Q512274-TTL, MFG. 1996

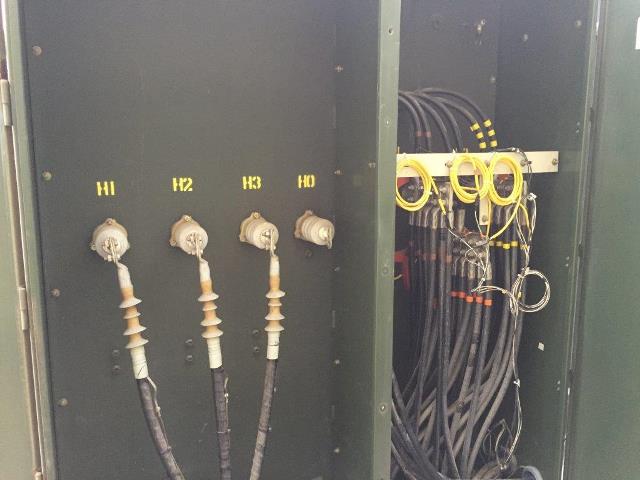

HIGH VOLTAGE: 4160Y/2400 BIL: 60 KV
LOW VOLTAGE: 480 DELTA BIL: 30 KV
TOTAL WEIGHT: 13,600 LBS.
CORE & COILS: 5,400 LBS.
TANK & FIT.: 4,200 LBS.
FLUID: 4,000 LBS. (560 GALS.)
DIMENSIONS: 90"H X 77"W X 74"D

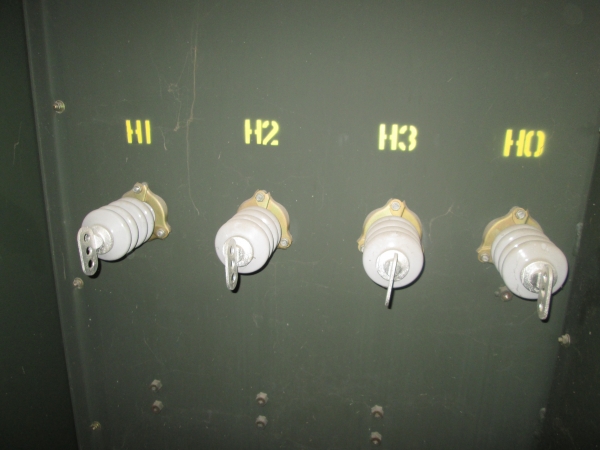

HV BUSHING: 49.5"H

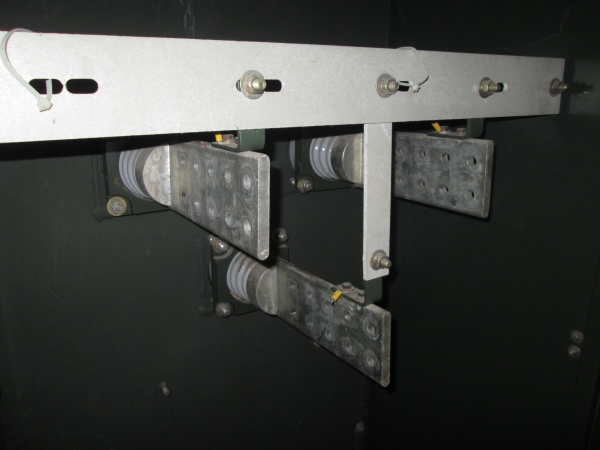

LV BUSHING: 54"H & 46"H
