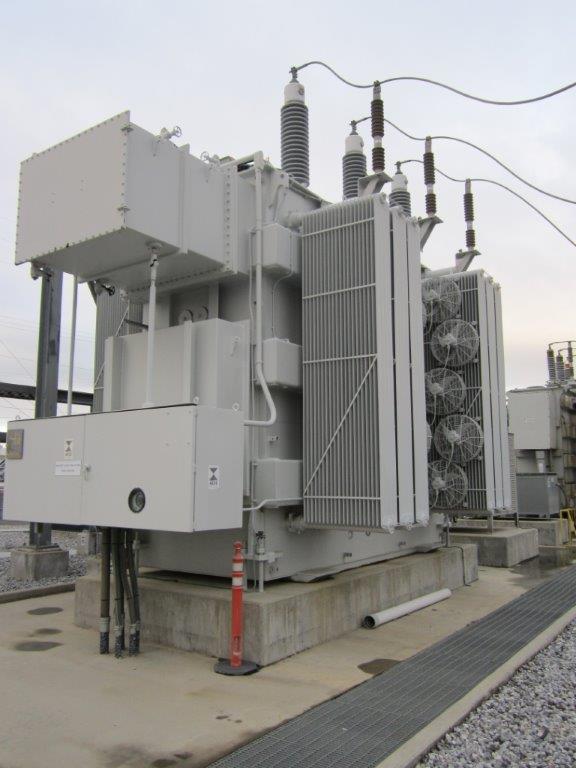

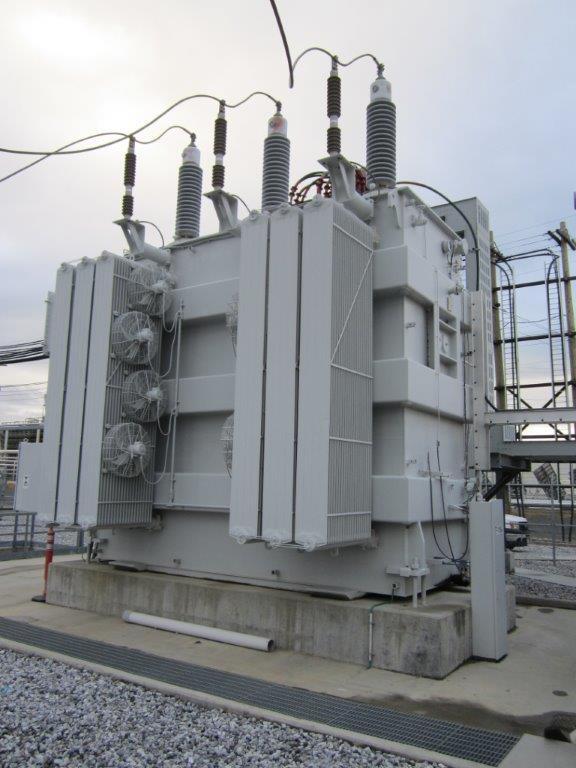

45/60/75 MVA, 140000 D, 14000Y/8080, McGraw-Edison, LTC, Copper Windings:

ONE (1) 45/60/75 MVA MCGRAW-EDISON LOAD TAP CHANGING TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA/FA/FA, 65 DEGREE C RISE, 13.9% IMPEDANCE, COPPER
WINDINGS, 3 X 600:5 HV MRCT'S C400, 3 X 2000:5 HV MRCT'S C800,
2 X 3000:5 LV CT'S, REMOVABLE RADIATORS, 120 KV HV LIGHTNING
ARRESTERS,15 KV LV LIGHTNING ARRESTERS, MECHANICAL TYPE PRESSURE
RELIEF DEVICE WITH CONTACTS, DRAIN & SAMPLE VALVE, MAGNETIC TYPE
LIQUID LEVEL GAUGE WITH CONTACTS, DIAL TYPE HOT OIL THERMOMETER
WITH CONTACTS, DIAL TYPE HOT SPOT THERMOMETER WITH CONTACTS,
SUDDEN PRESSURE RELAY

HIGH VOLTAGE: 140000 DELTA BIL: 650 KV
LOW VOLTAGE: 14000Y/8080 BIL: 110 KV
HV TAPS: 147000-143500-140000-136500-133000
LTC TAPS: 16100-11900 IN 32 STEPS

TOTAL WEIGHT: 284,900 LBS.
CORE & COILS: 127,300 LBS.
TANK & FIT.: 68,250 LBS.
LTC MECHANISM: 1,400 LBS.
MAIN TANK OIL: 83,250 LBS. (11,100 GALS.)
LTC OIL: 4,700 LBS. (630 GALS.)
UNTANKING: 121,300 LBS.
DIMENSIONS: 281"H X 192"W X 306"L
SHIPPING: 203"H X 116"W X 306"L
