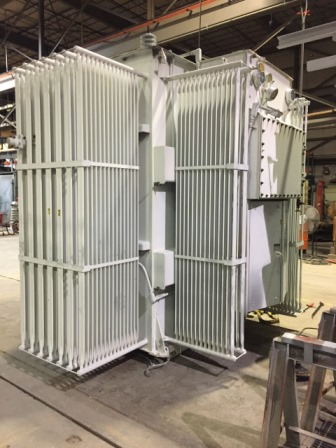

7500/9375/10500 KVA, Pri 66000 D, Sec 13800Y/7960, GE LTC SUB, AL-AL, 55/65:

ONE (1) 7500/9375/10500 KVA GENERAL ELECTRIC LTC TRANSFORMER
3 PHASE, 60 HERTZ, CLASS OA/FA, 55/65 DEG. C RISE
8.5% IMPEDANCE, S/N H881716
ALUMINUM WINDINGS (TAP WINDING - COPPER)
HSC LOAD TAP CHANGER, 3 X HV CT'S

HIGH VOLTAGE: 66000 DELTA BIL: 350 KV
LOW VOLTAGE: 13800Y/7960 BIL: 110 KV
HV TAPS: 69300-67650-66000-64350-63700
LV TAPS: 12420 - 15180 IN 32 STEPS

TOTAL WEIGHT: 45,400 LBS.
CORE & COILS: 17,000 LBS.
TANK & FIT.: 13,700 LBS.
MAIN OIL: 13,600 LBS. (1,820 GALS.)
LTC OIL: 1,100 LBS. (150 GALS.)

DIMENSIONS: 141.5"H X 117.5"W X 142"D
SHIPPING DIMENSIONS: 135"H X 117.5"W X 142"D
