1200 Amp, GENERAL ELECTRIC, VB1-13.8-1000-2, 15 KV, 1987, 125 VDC C & T, UNUSED
UNUSED VACUUM BREAKER
Product Number:
040740
Full Product Description
CB-18294:

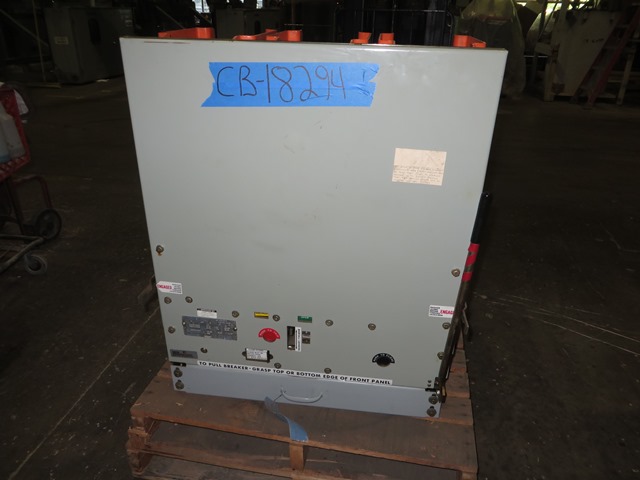

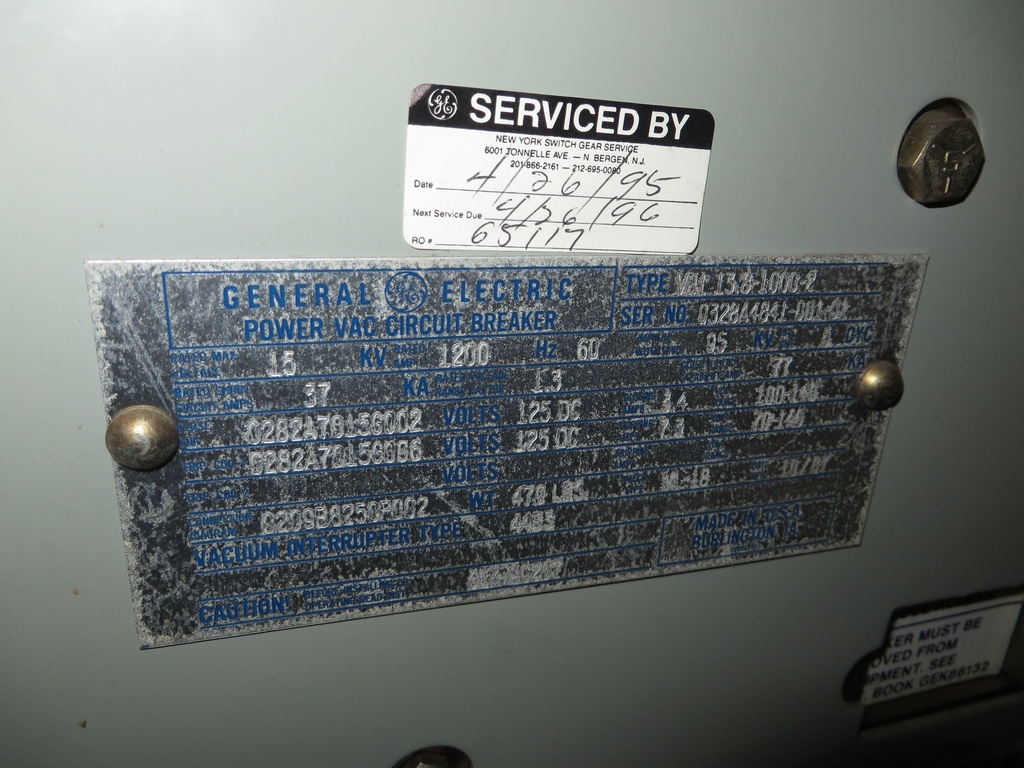

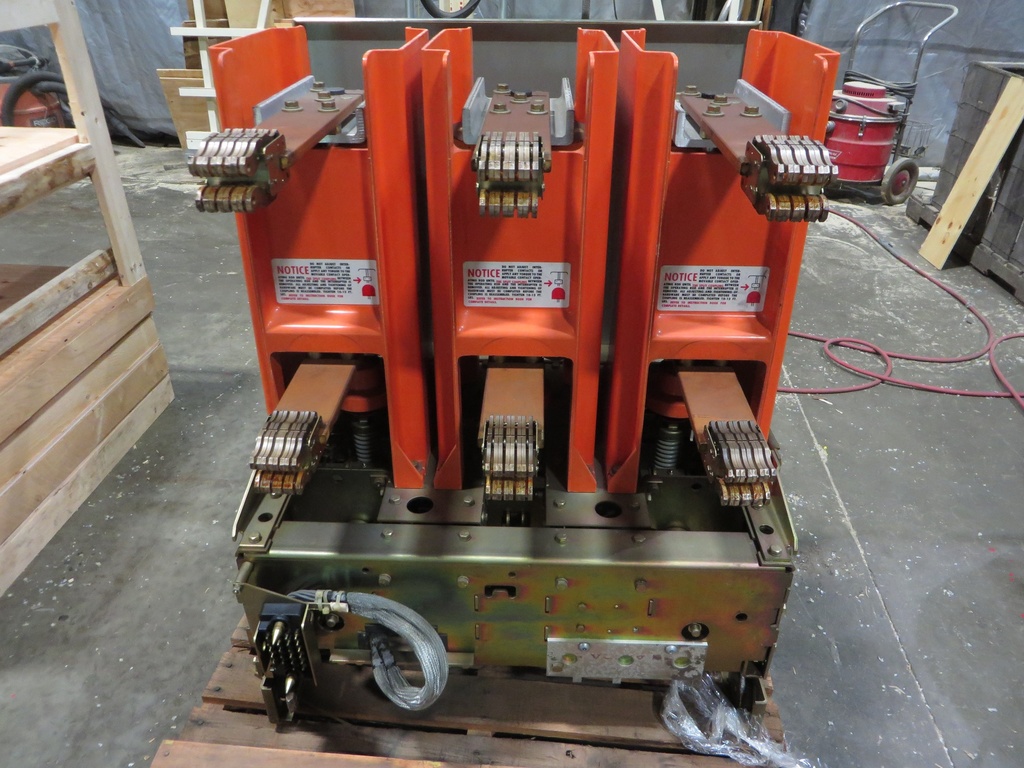

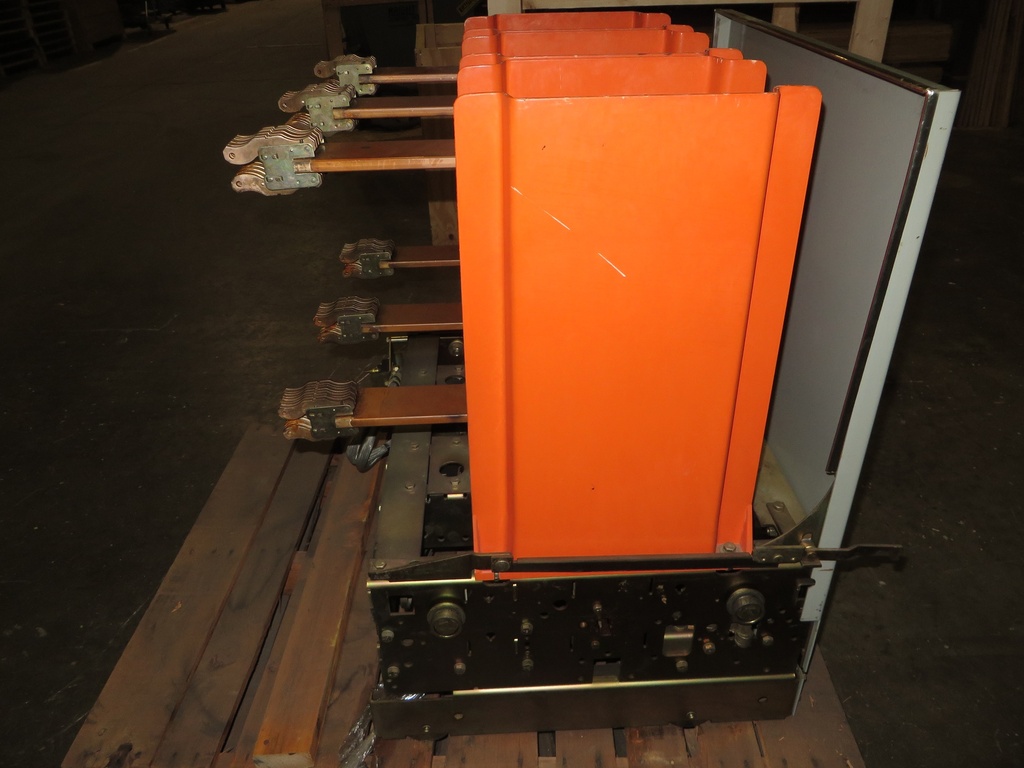

ONE (1) UNUSED 1200 AMP GENERAL ELECTRIC VACUUM BREAKER
TYPE VB1-13.8-1000-2
15 KV MAX.
3 PHASE
60 HERTZ
95 KV BIL
5 CYCLE INTERRUPT
37 KA SHORT CIRCUIT
77 KA CLOSE & LATCH
125 VDC CLOSE & TRIP

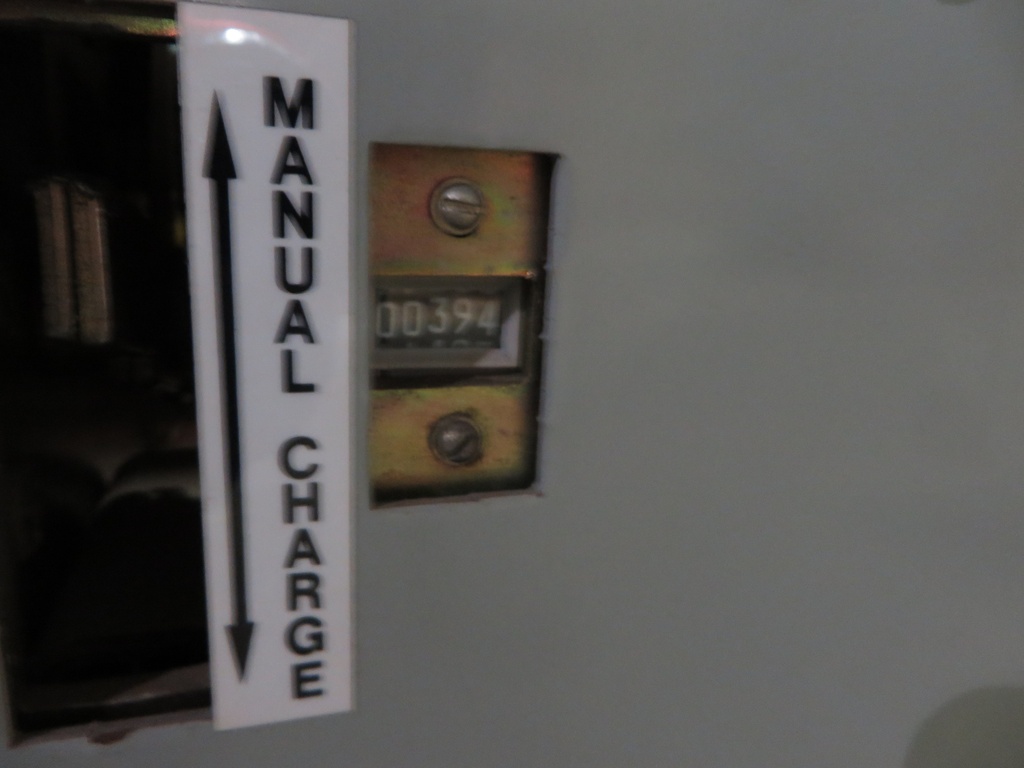

125 VDC CHARGING MOTOR
ML-18 OPERATING MECHANISM
44B3 VACUUM INTERRUPTER
S/N 0328A4841-001-01
ONE (1) UNUSED 1200 AMP GENERAL ELECTRIC VACUUM BREAKER
TYPE VB1-13.8-1000-2
15 KV MAX.
3 PHASE
60 HERTZ
95 KV BIL
5 CYCLE INTERRUPT
37 KA SHORT CIRCUIT
77 KA CLOSE & LATCH
125 VDC CLOSE & TRIP
125 VDC CHARGING MOTOR
ML-18 OPERATING MECHANISM
44B3 VACUUM INTERRUPTER
S/N 0328A4841-001-01
