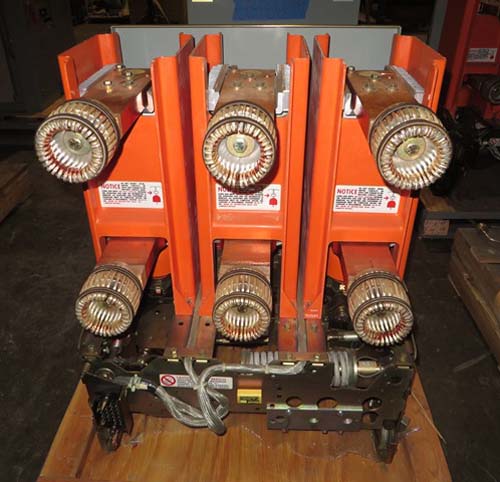

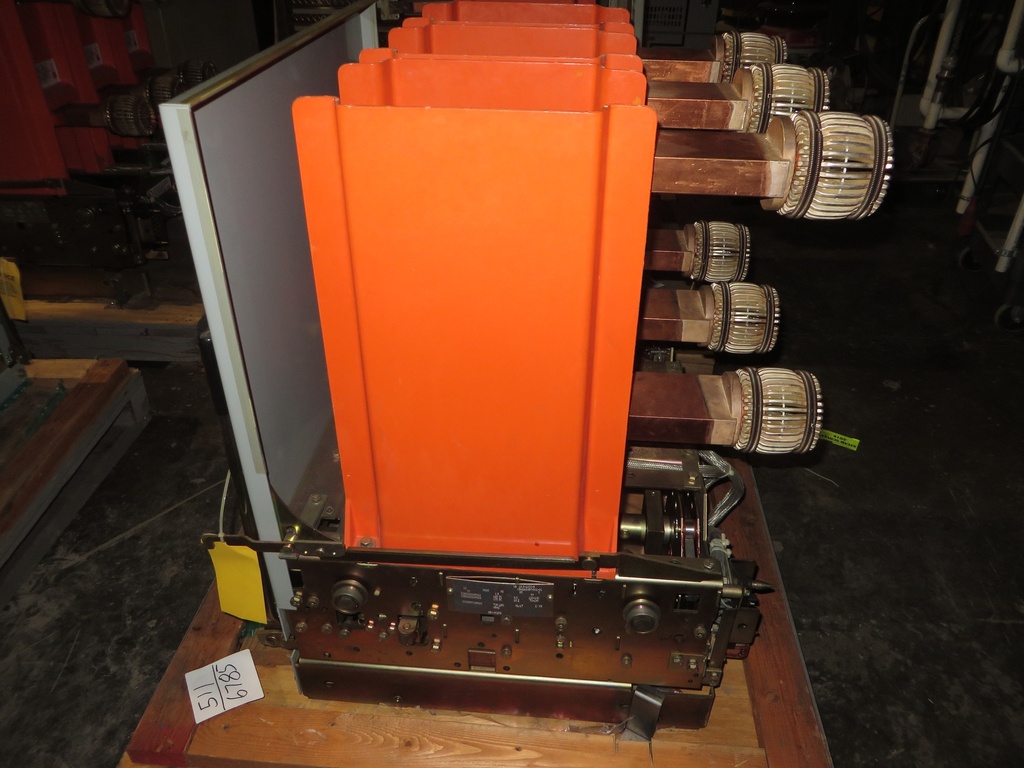

3000 Amp, GENERAL ELECTRIC, VB13.8-1000-3, 15 KV, ML-17 MECH, 125 VDC C&T;
VACUUM CIRCUIT BREAKER
Product Number:
040732
Full Product Description

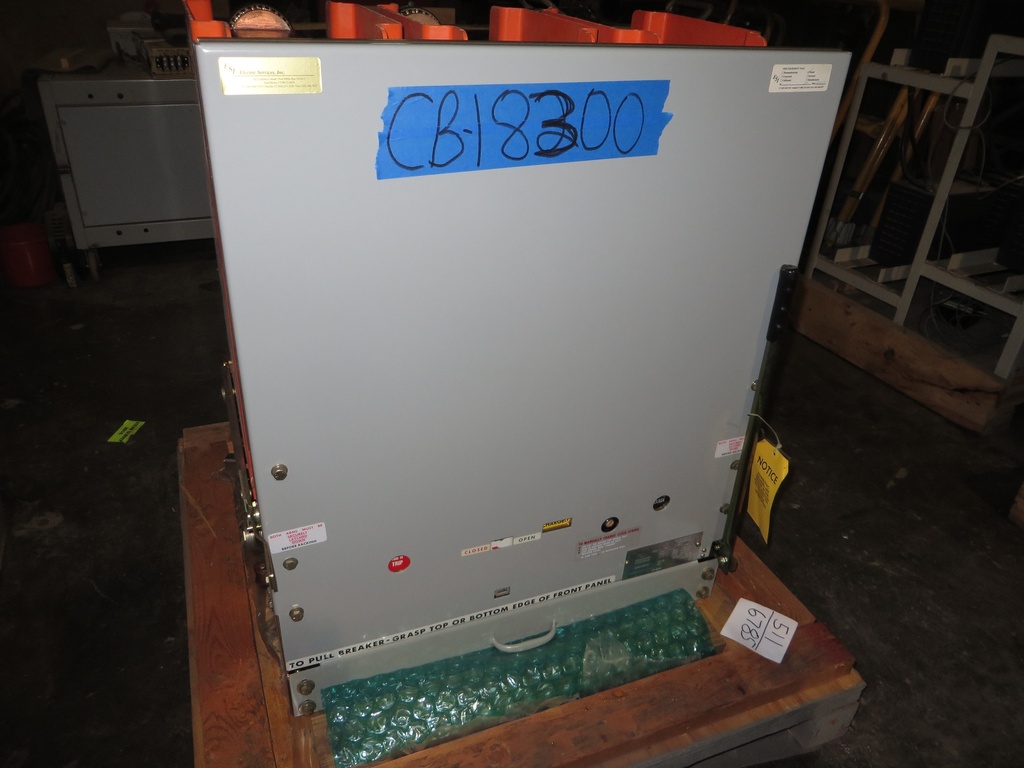

CB-18300
ONE (1) 3000 AMP GENERAL ELECTRIC VACUUM BREAKER UNUSED
TYPE VB13.8-1000-3
15 KV
3000A
60 HERTZ
95 KV BIL
5 CYCLE INTERRUPT
37 KA SHORT CIRCUIT
1.3 RATED VOLTAGE RANGE FACTOR
77 KA CLOSE & LATCH
125 VDC CLOSE & TRIP
ML-17 MECHANISM
43A2 VACUUM INTERRUPT
0209B3713P002 CONNECTION DIAGRAM
SERIAL #: 0348A9637-001-01
INST. BOOK GEK-90208
760 LBS.
