1200 Amp, GENERAL ELECTRIC, VB1-4.16-250-3, 4160 V., EO/DO, 48 VDC MCT:
VACUUM CIRCUIT BREAKER
Product Number:
040718
Full Product Description
CB-18291

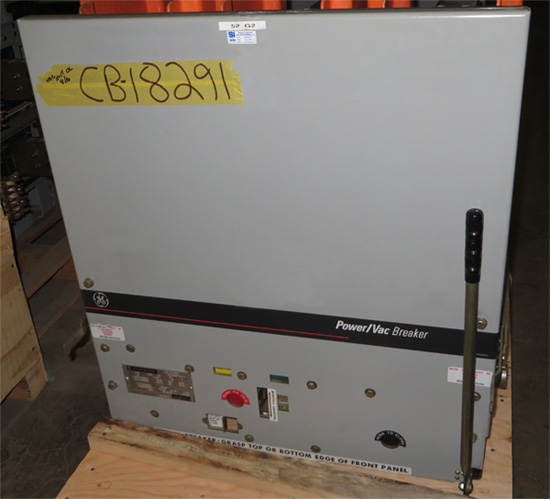

ONE (1) 1200AMP GENERAL ELECTRIC VACUUM BREAKER
TYPE VB1-4.16-250-3
4160 VOLT
1200 AMP
ELECTRICALLY OPERATED
DRAW-OUT
48 VDC MOTOR, CLOSE, & TRIP
INTERRUPTER TYPE 52B1
18 KA INTERRUPT
58 KV CLOSE & LATCH
5 CYCLE INTERRUPT
ML18 OPERATING MECHANISM

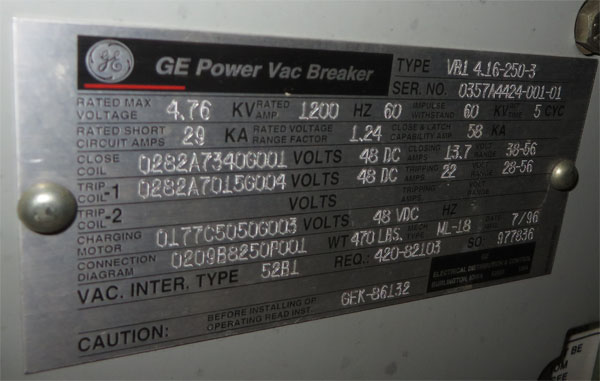

VAC. INTER. TYPE: 52B1
SERIAL NO. 0357A4424-001-01
INSTR MAN #: GEK-86132
470 LBS.
ONE (1) 1200AMP GENERAL ELECTRIC VACUUM BREAKER
TYPE VB1-4.16-250-3
4160 VOLT
1200 AMP
ELECTRICALLY OPERATED
DRAW-OUT
48 VDC MOTOR, CLOSE, & TRIP
INTERRUPTER TYPE 52B1
18 KA INTERRUPT
58 KV CLOSE & LATCH
5 CYCLE INTERRUPT
ML18 OPERATING MECHANISM
VAC. INTER. TYPE: 52B1
SERIAL NO. 0357A4424-001-01
INSTR MAN #: GEK-86132
470 LBS.
