25 MVA, Pri 46KV D X 161 KV D, Sec 12470GRDY X 4160GRDY, 2010, LTC, MOBILE, NEW

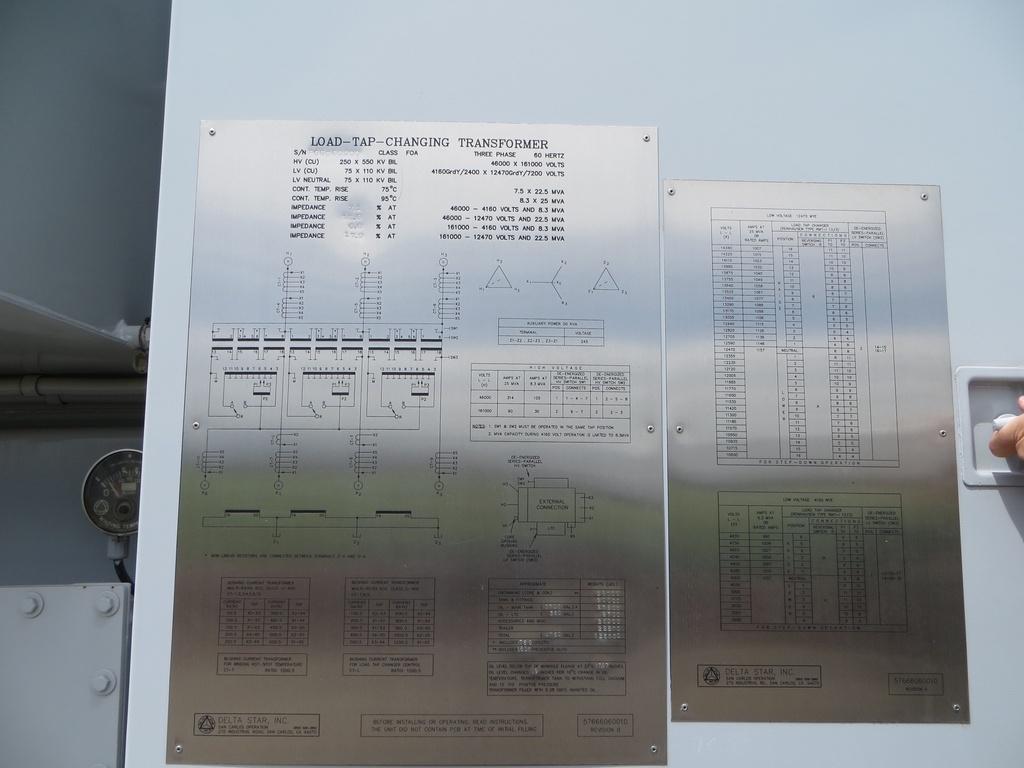

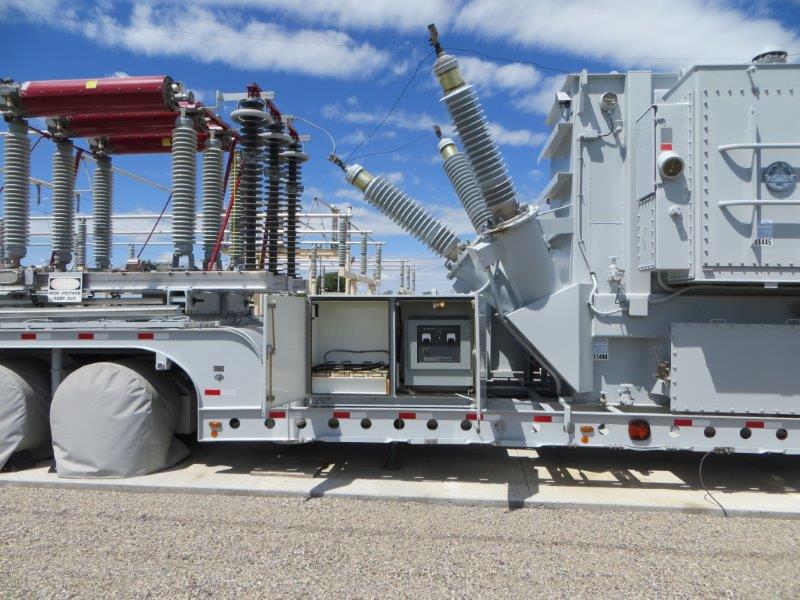

UNUSED MOBILE LOAD TAP CHANGING TRANSFORMER WITH DUAL VOLTAGES
Product Number:
040713
Full Product Description
ONE (1) UNUSED 7.5 X 22.5/8.3 X 25 MVA DELTA STAR MOBILE SUBSTATION
TRANSFORMER, 3 PHASE, 60 HERTZ, CLASS FOA, 75/95 DEG. C RISE,
VARIOUS IMPEDANCE (SEE BELOW), COPPER WINDINGS, 6 X 600:5 HV
MRCT'S C-400, 3 X 1200:5 LV MRCT'S C-400, 1 X 600:5 LV NEUTRAL
MRCT, MFG. 2010
HIGH VOLTAGE: 46000 D X 161000 D BIL: 250 X 550 KV
LOW VOLTAGE: 4160GRDY/2400 X 12470GRDY/7200 BIL: 75 X 110 KV
LV TAPS: 14340 - 10500 IN 32 STEPS
LV TAPS: 4835 - 3480 IN 12 STEPS
IMPEDANCE: 7.1% @ 46000 - 4160 VOLTS AND 8.3 MVA
18.8% @ 46000 - 12470 VOLTS AND 22.5 MVA
6.8% @ 161000 - 4160 VOLTS AND 8.3 MVA
17.9% @ 161000 - 12470 VOLTS AND 22.5 MVA
TOTAL WEIGHT: 126,000 LBS. (INCLUDES TRANSFORMER & ACCESSORIES)
TRANSFORMER: 78,500 LBS.
CORE & COILS: 28,000 LBS.
TANK & FIT.: 20,000 LBS.
MAIN TANK OIL: 27,800 LBS. (3,700 GALS.)
LTC OIL: 2,700 LBS. (360 GALS.)
