  2. 5000/5600/7000 KVA, Pri 12470 D, Sec 4160Y/2402, ABB, Type RSL, Oil

5000/5600/7000 KVA, Pri 12470 D, Sec 4160Y/2402, ABB, Type RSL, Oil

https://belyeapower.redstormlabs.com/web/image/product.template/30320/image_1920?unique=632d99c

SUBSTATION TRANSFORMER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

    Product Number: 040704
    Request Quote

    Full Product Description

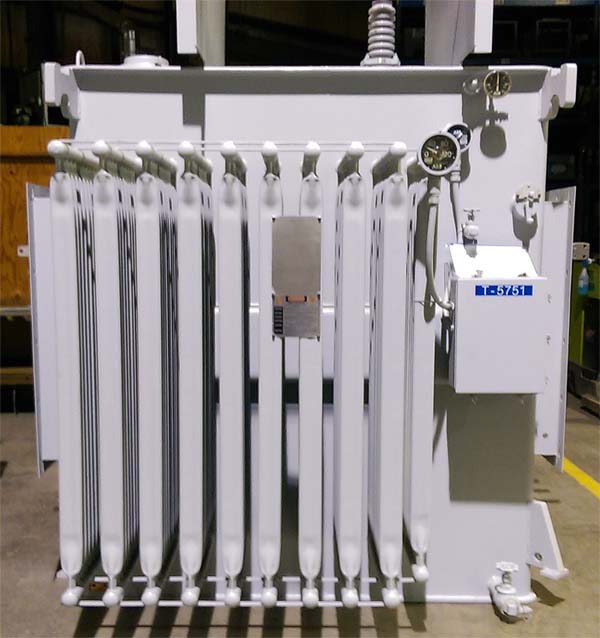

    T-5751

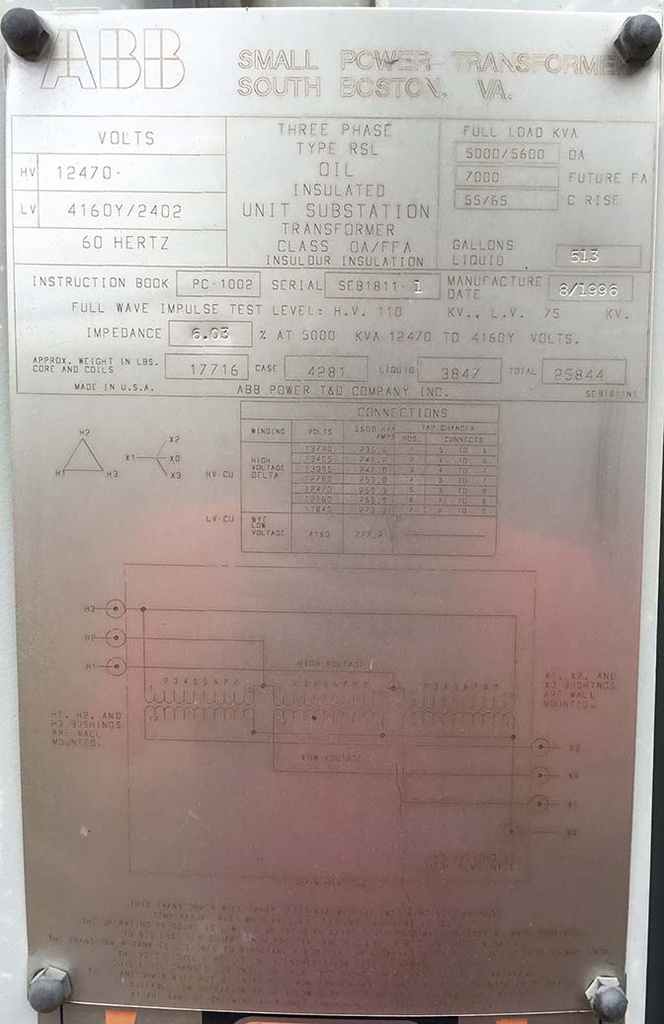

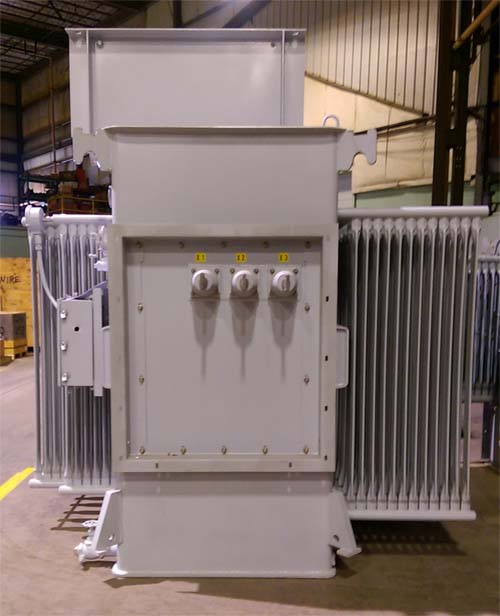

    ONE (1) 5000/5600/7000 ABB Substation Transformer
    3 Phase, 55/65 deg. C Rise, Type RSL, Oil, Copper Windings
    Class OA with 5000/5600, 7000 with Future FA
    Liquid Level Gauge, Drain and Sample valve
    Liquid Temperature Gauge, Pressure Gauge
    Control Cabinet, Instruction Book PC-1002, Serial # SEB1811-1

    Primary: 12470 Delta BIL: 110 KV
    Secondary: 4160Y/2402 BIL: 75 KV
    TAPS: 13720-13405-13095-12780-12470-12160-11845

    Total Weight: 25844 LBS.
    Core & Coils: 17715 LBS.
    Tank & Fittings: 4281 LBS.
    Liquid - Oil: 3847 LBS. (513 GAL.)
