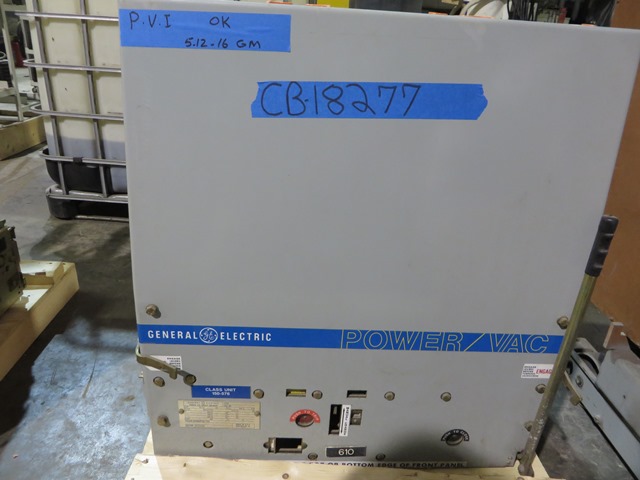

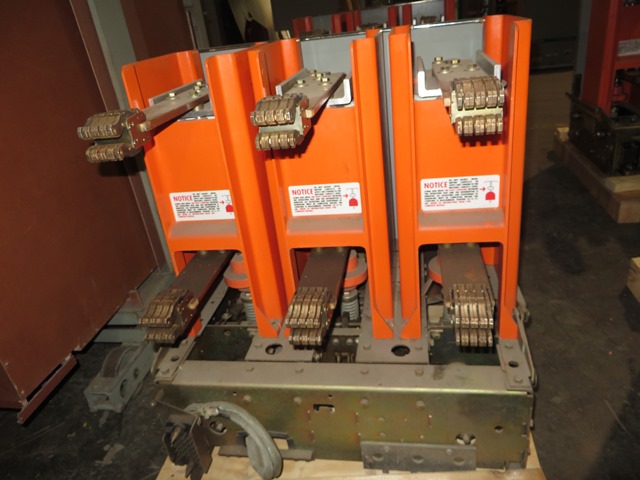

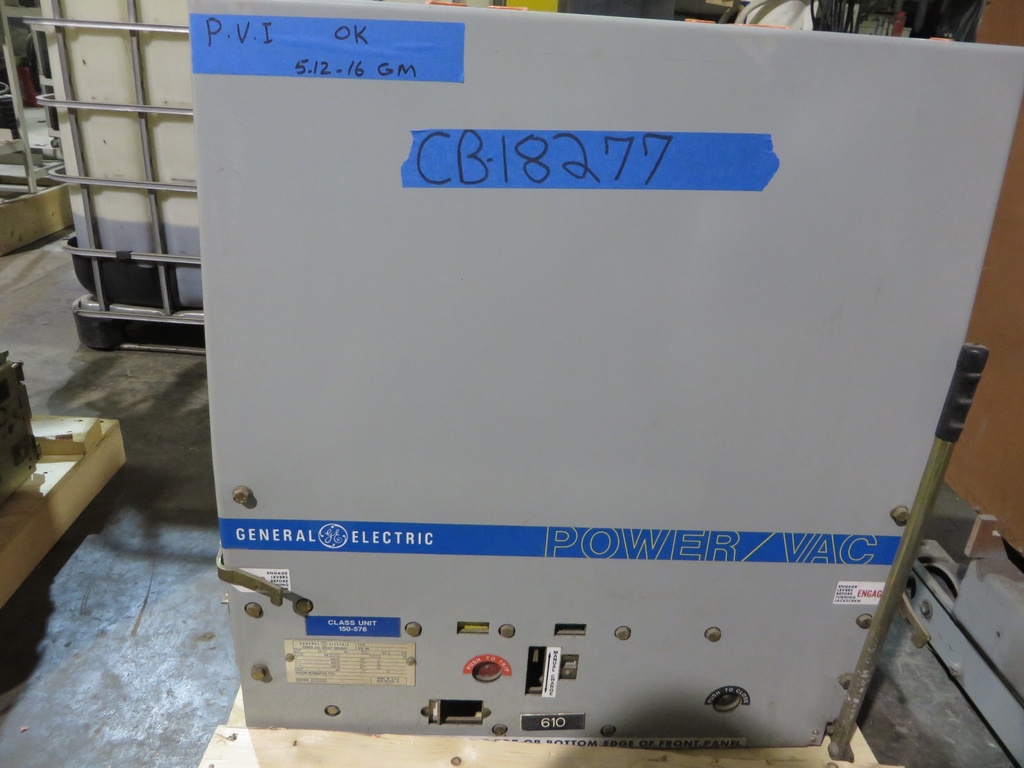

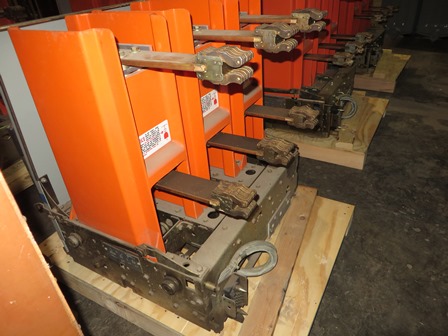

1200 Amp, GENRAL ELECTRIC, VB1-13.8-1000-2, 15 KV, ELECTRIC, 125VDC C&T:
VACUUM CIRCUIT BREAKER
Product Number:
040696
Full Product Description
CB-18277

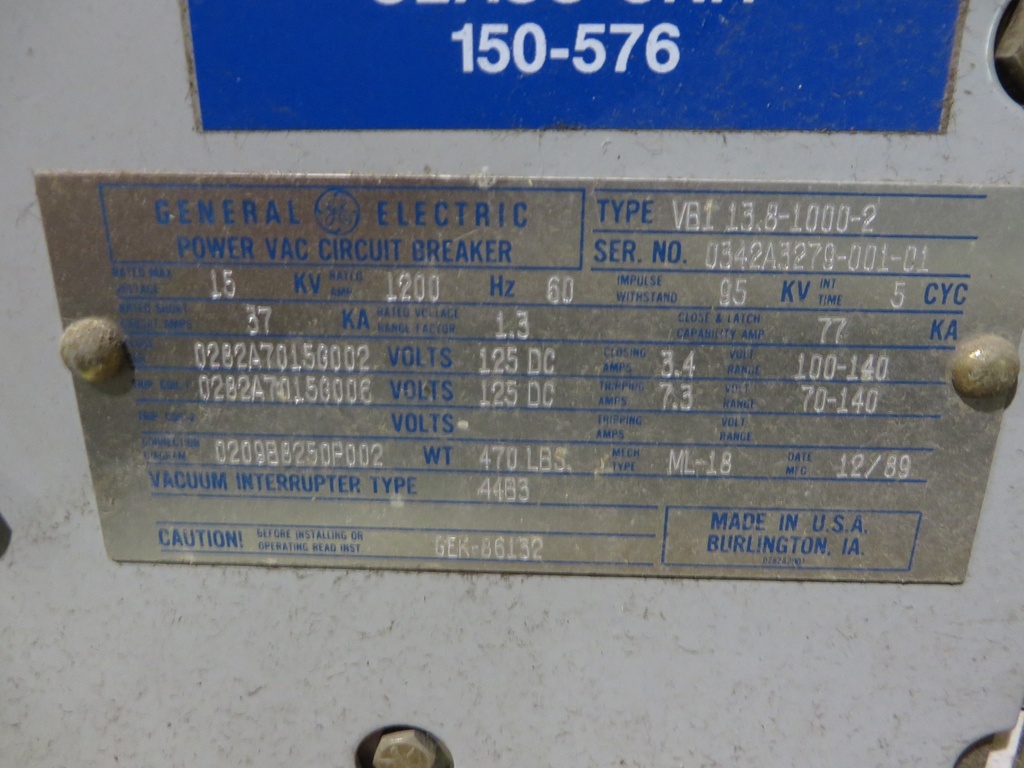

ONE (1) 1200 AMP GENERAL ELECTRIC VACUUM CIRCUIT BREAKER
TYPE VB1-13.8-1000-2
15 KV MAX
3 PHASE
60 HZ
95 KV BIL
5 CYCLE INTERRUPT
37 kA SHORT CIRCUIT
1.3 RATED VOLTAGE FACTOR K
77 kA CLOSE & LATCH
ELECTRICALLY OPERATED
125VDC CLOSE & TRIP
125VDC CHARGING MOTOR
CONNECTION DIAGRAM: 0209B8250P002
ML-18 OPERATING MECHANISM
VAC. INTER. TYPE: 44B3
IB: GEK-86132
WEIGHT: 470 LBS
ONE (1) 1200 AMP GENERAL ELECTRIC VACUUM CIRCUIT BREAKER
TYPE VB1-13.8-1000-2
15 KV MAX
3 PHASE
60 HZ
95 KV BIL
5 CYCLE INTERRUPT
37 kA SHORT CIRCUIT
1.3 RATED VOLTAGE FACTOR K
77 kA CLOSE & LATCH
ELECTRICALLY OPERATED
125VDC CLOSE & TRIP
125VDC CHARGING MOTOR
CONNECTION DIAGRAM: 0209B8250P002
ML-18 OPERATING MECHANISM
VAC. INTER. TYPE: 44B3
IB: GEK-86132
WEIGHT: 470 LBS
