1200 Amp, GENRAL ELECTRIC, VB1-13.8-1000-3, 15 KV, ELECTRIC, 125VDC C&T:
VACUUM CIRCUIT BREAKER
Product Number:
040692
Full Product Description
CB-18272

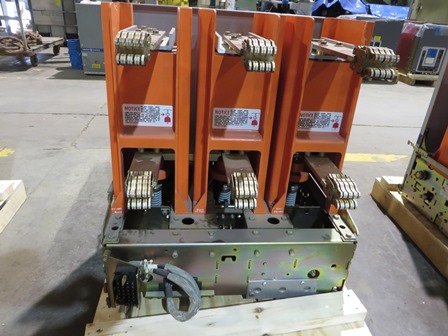

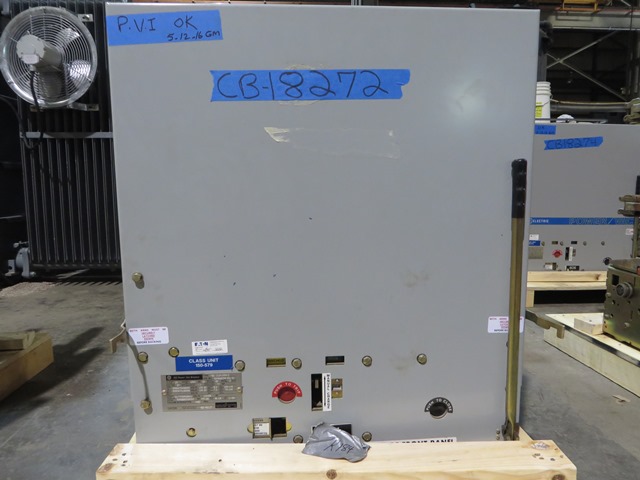

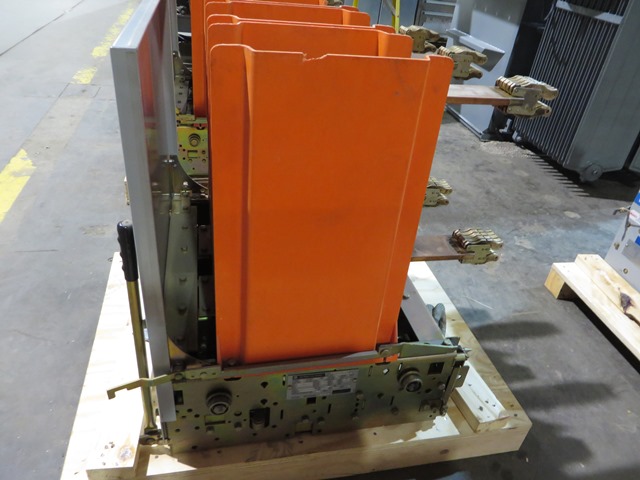

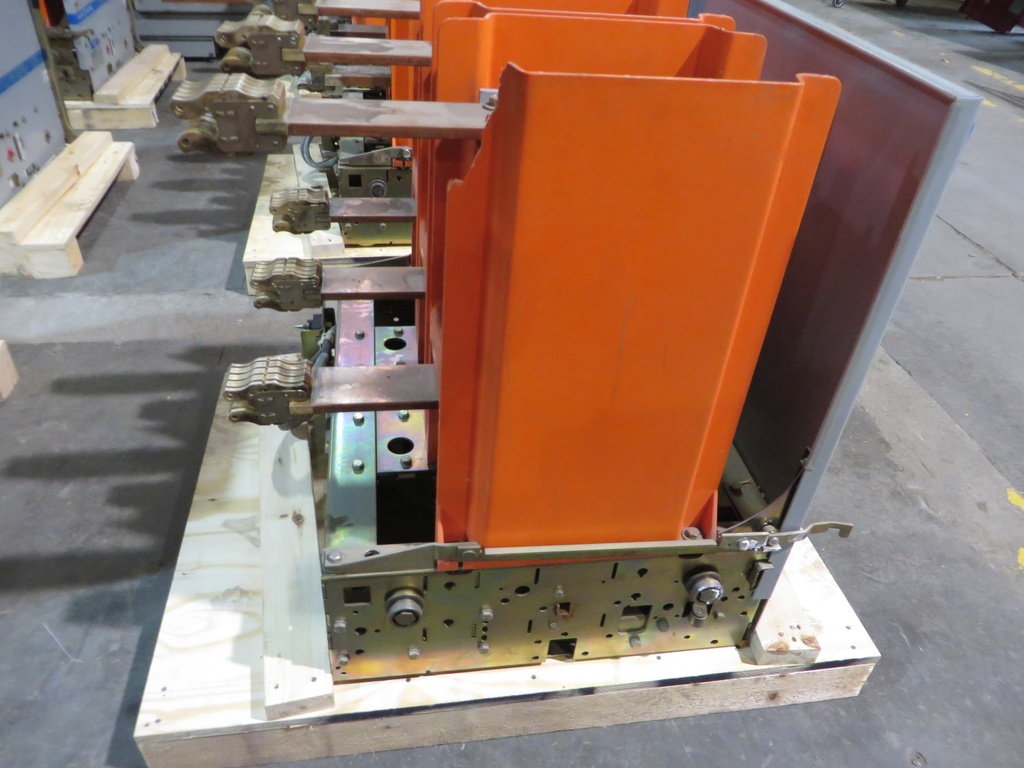

ONE (1) 1200 AMP GE VACUUM CIRCUIT BREAKER

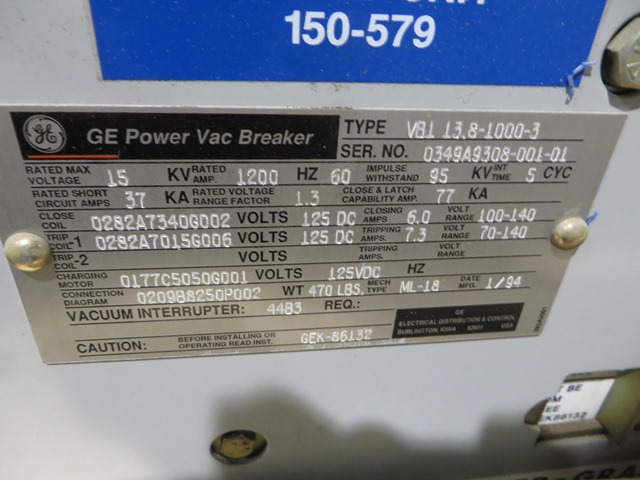

TYPE VB1-13.8-1000-3
1200A
15KV MAX
3 PHASE
60 HZ
95 KV BIL
5 CYCLE INTERRUPT
37 kA SHORT CIRCUIT
1.3 RATED VOLTAGE K FACTOR
77 kA CLOSE & LATCH
ELECTRICALLY OPERATED
125 VDC CLOSE & TRIP
125 VDC CHARGING MOTOR
0177C5050G001 CHARGING MOTOR
0209B8250P002 CONNECTION DIAGRAM
ML-18 OPERATING MECHANISM
VAC. INTER. TYPE: 44B3
WEIGHT 470 LBS
IB: GEK-86132
