  2. 1200 Amp, GENERAL ELECTRIC, VB1-13.8-1000-3, 15 KV, 125 VDC, ELECTRIC OPER:

1200 Amp, GENERAL ELECTRIC, VB1-13.8-1000-3, 15 KV, 125 VDC, ELECTRIC OPER:

https://belyeapower.redstormlabs.com/web/image/product.template/30307/image_1920?unique=fb47b93

VACUUM CIRCUIT BREAKER

$ 0.00 0.0 USD $ 0.00

$ 0.00

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: 2-3 Business Days

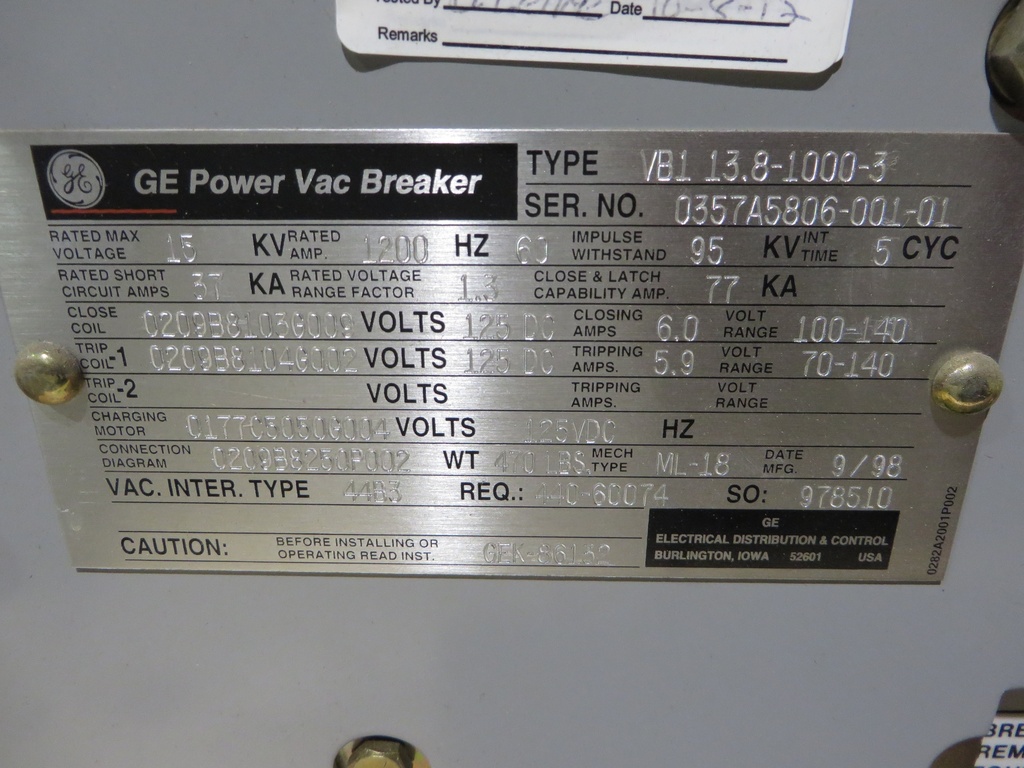

    Product Number: 040691
    Request Quote

    Full Product Description

    CB-18271

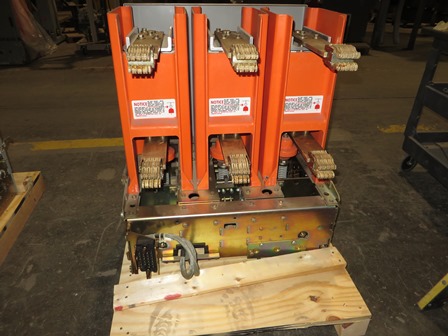

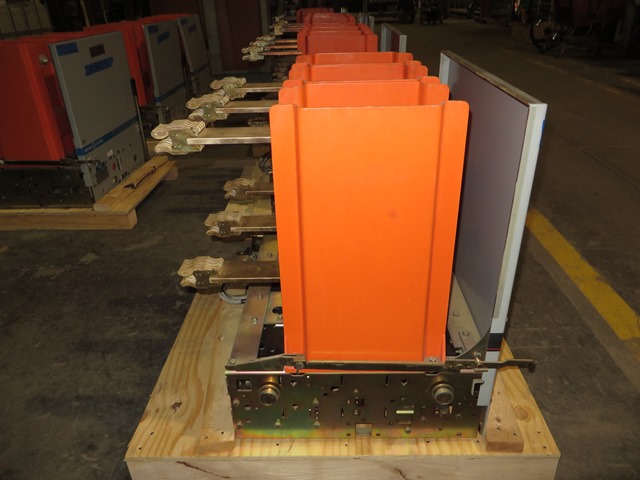

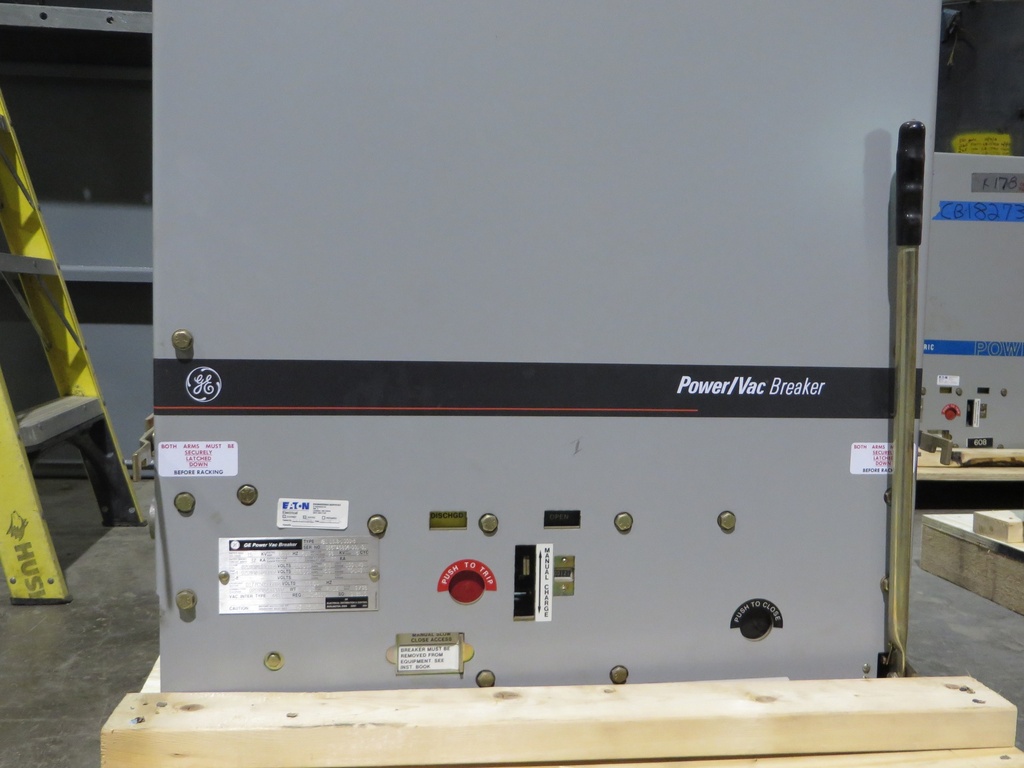

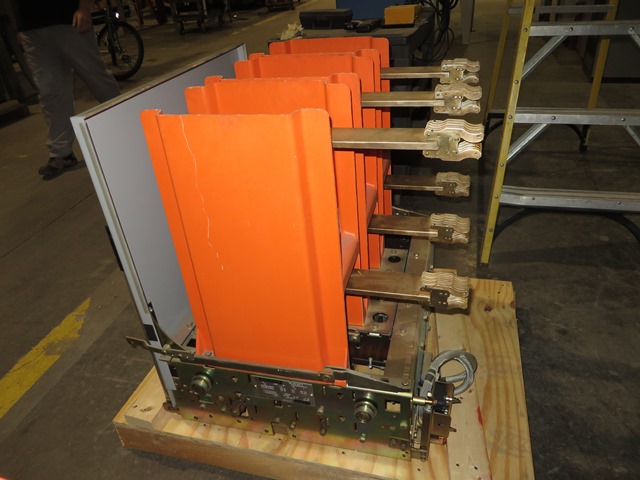

    ONE (1) GE VACUUM CIRCUIT BREAKER
    - TYPE VB1-13.8-1000-3
    - 1200A
    - 15KV MAX
    - 3PH/60HZ
    - 95KV BIL
    - 5 CYCLE INTERRUPT
    - 37kA SHORT CIRCUIT
    - 77kA CLOSE & LATCH
    - ELECTRICALLY OPERATED
    -125VDC CLOSE & TRIP
    -125VDC CHARGING MOTOR
    - ML-18 OPERATING MECHANISM
    -VAC. INTER. TYPE: 44B3
    -WEIGHT 470 LBS
    -SERIAL# 0357A5806-001-01
