1500 KVA, Pri 34500 D, Sec 480Y/277, 1997, SQUARE D, DEAD FRONT, RADIAL FEED:1

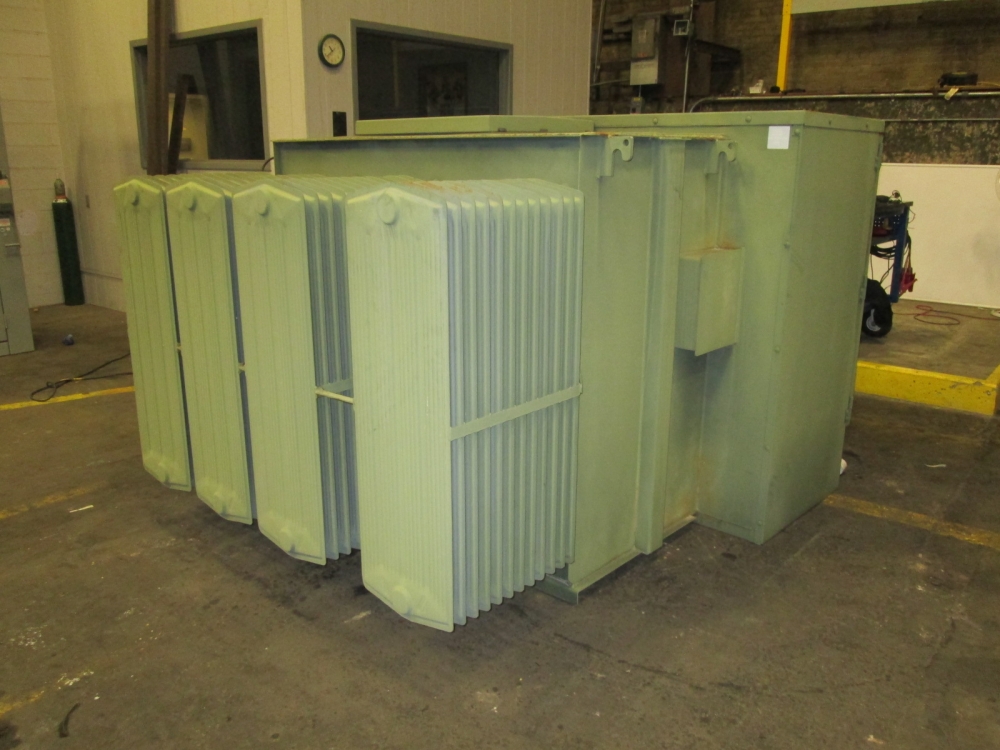

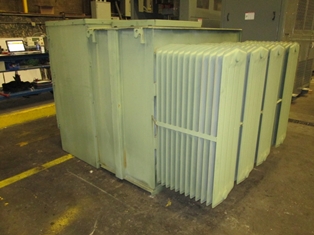

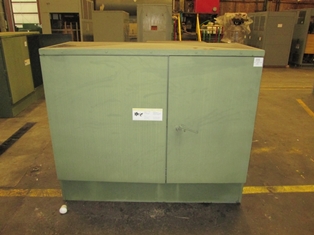

ONE (1) 1500 KVA SQUARE D COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE,

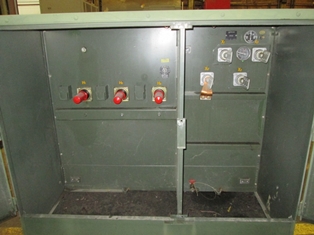

60 HERTZ, CLASS OA, 65 DEG. C RISE, 7.6% IMPEDANCE, DEAD FRONT,
RADIAL FEED, ALUMINUM WINDINGS, DRAIN & SAMPLE VALVE, DIAL TYPE
THERMOMETER, LIQUID LEVEL GAUGE, PRESSURE VACUUM GAUGE, PRESSURE
RELIEF VALVE, MFG. 1997

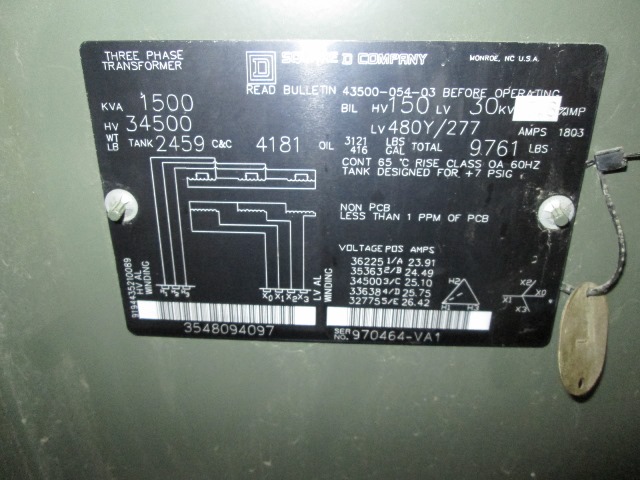

HIGH VOLTAGE: 34500 DELTA BIL: 150 KV
LOW VOLTAGE: 480Y/277 BIL: 30 KV
TAPS: 36225-35363-34500-33638-32775

TOTAL WEIGHT: 9,761 LBS.
CORE & COILS: 4,181 LBS.
TANK & FIT.: 2,459 LBS.
OIL: 3,121 LBS. (416 GALS.)
DIMENSIONS: 64"H X 79"W X 94"D
HV BUSHINGS: 39"H
LV BUSHINGS: 52"H X 45"H
