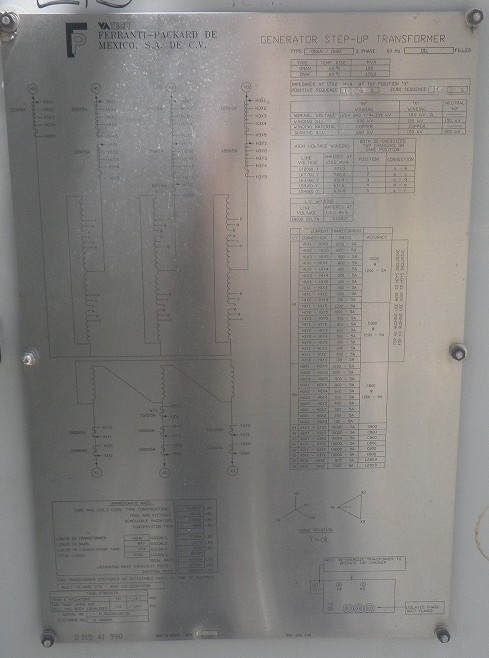

128000/170200 KVA, Pri 163400 Y, Sec 18000 D, 2005, VA TECH/FERRANTI PACKARD

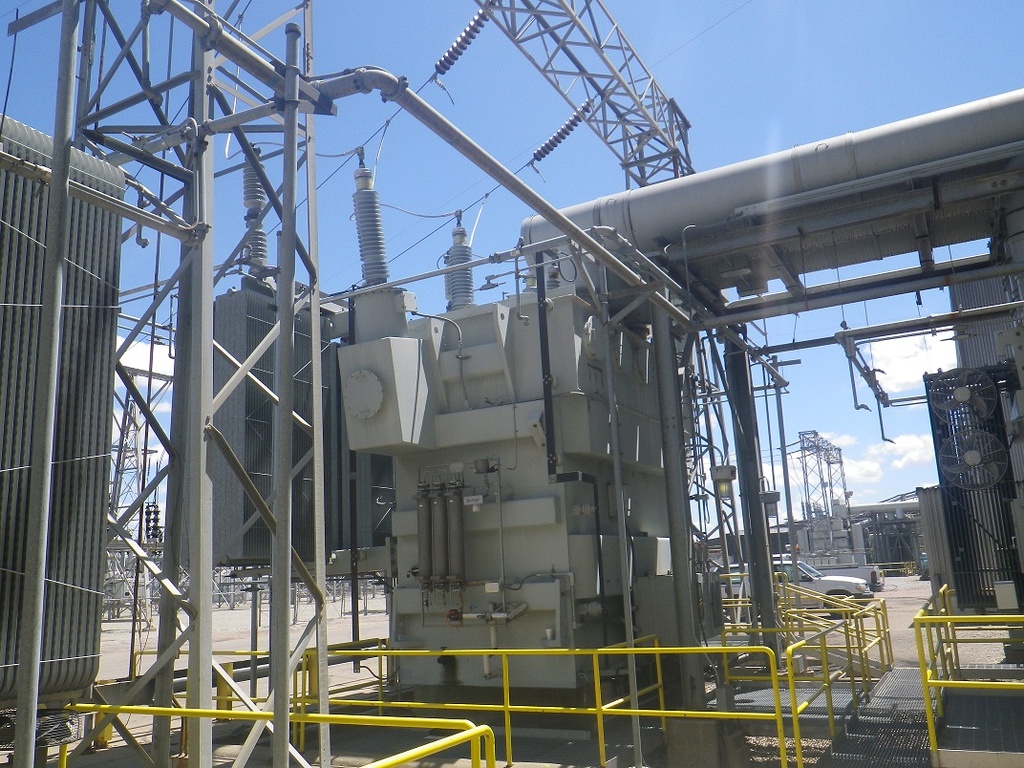

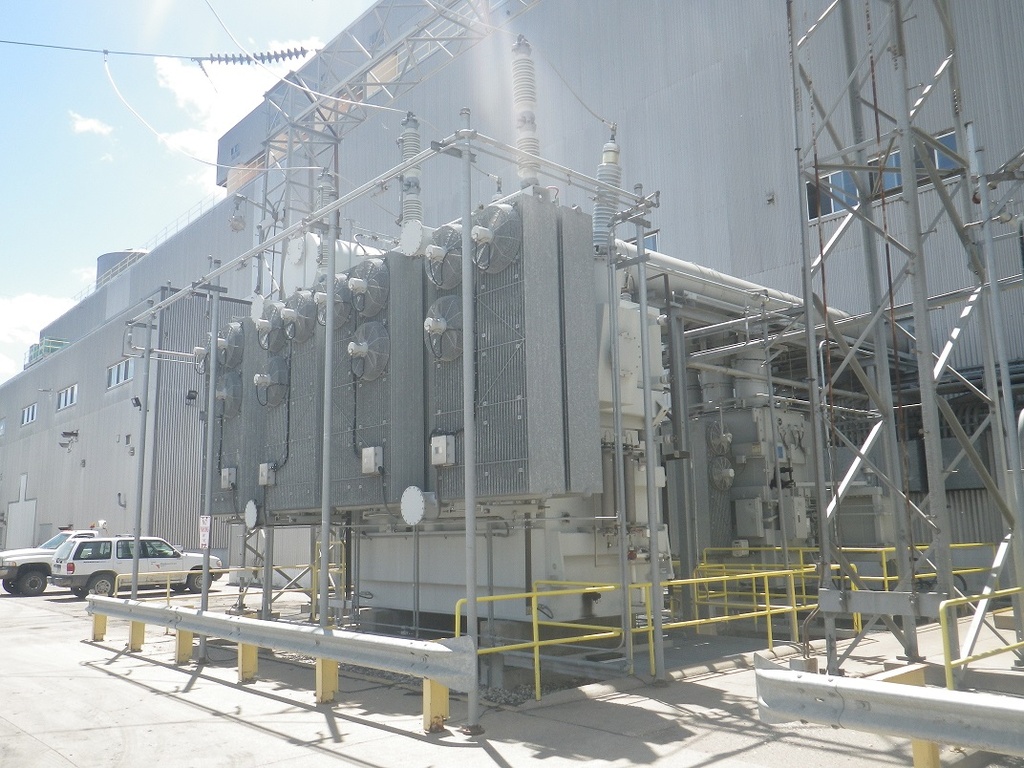

ONE (1) 128/170.2 MVA VATECH FERRANTI-PACKARD GENERATOR STEP-UP TRANSFORMER,
3 PHASE, 60 HERTZ, CLASS ONAN/ONAF, 65 DEG. C RISE, 12.696% IMPEDANCE,
COPPER WINDINGS, 6 X 1200:5 HV MRCT'S C800, 6 X 10000:5 LV CT'S C800,
CONSERVATOR, MFG. 2005

HIGH VOLTAGE: 163400 WYE BIL: 650 KV
LOW VOLTAGE: 18000 DELTA BIL: 150 KV
TAPS: 172000-167700-163400-159100-154800

TOTAL WEIGHT: 329,148 LBS.
CORE & COILS: 173,837 LBS.
TANK & FIT.: 49,136 LBS.
REMOVABLE RADS.: 17,565 LBS.
CONSERVATOR TANK: 2,992 LBS.
TRANSFORMER LIQUID: 75,806 LBS. (10,241 GALS.)
RADIATOR LIQUID: 6,270 LBS. (947 GALS.)
CONSERVATOR LIQUID: 3,652 LBS. (493 GALS.)
SHIPPING: 220,479 LBS.
