11200/14000 KVA, Pri 18000 D, Sec 4160 D, 2009, WAUKESHA:1

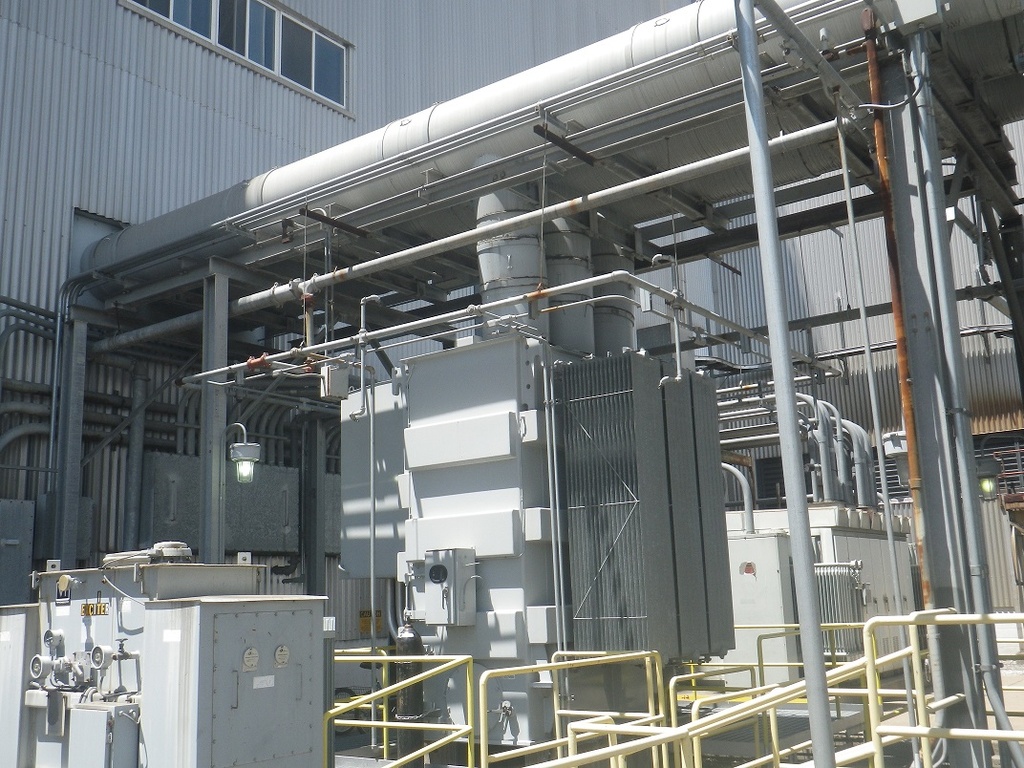

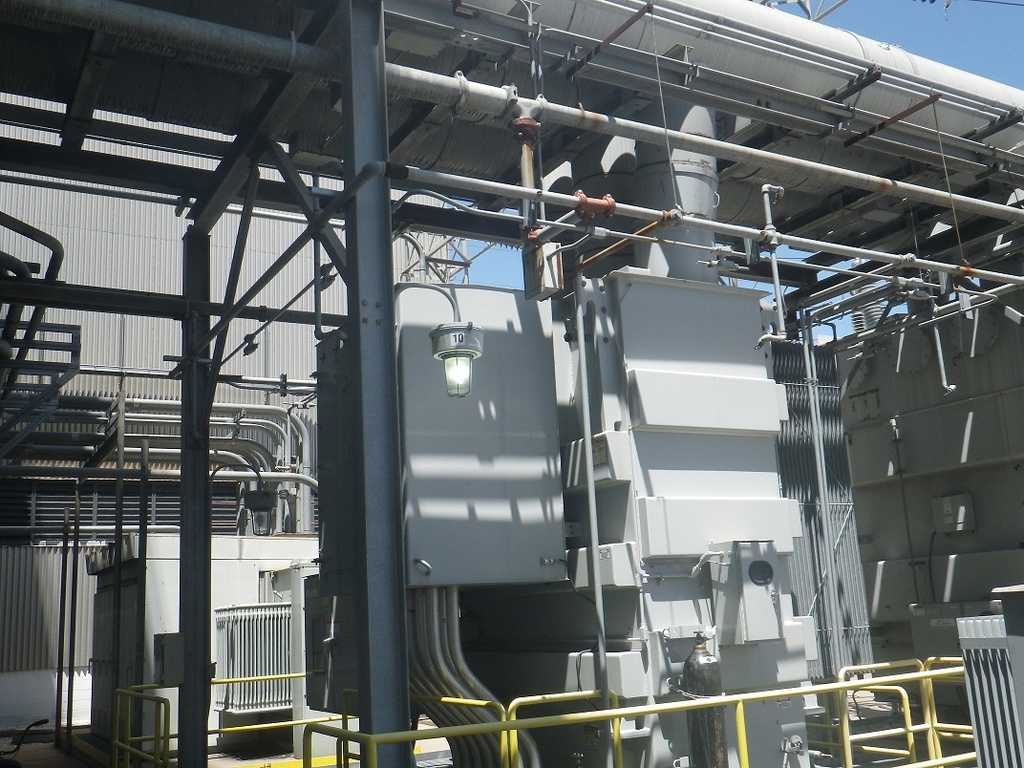

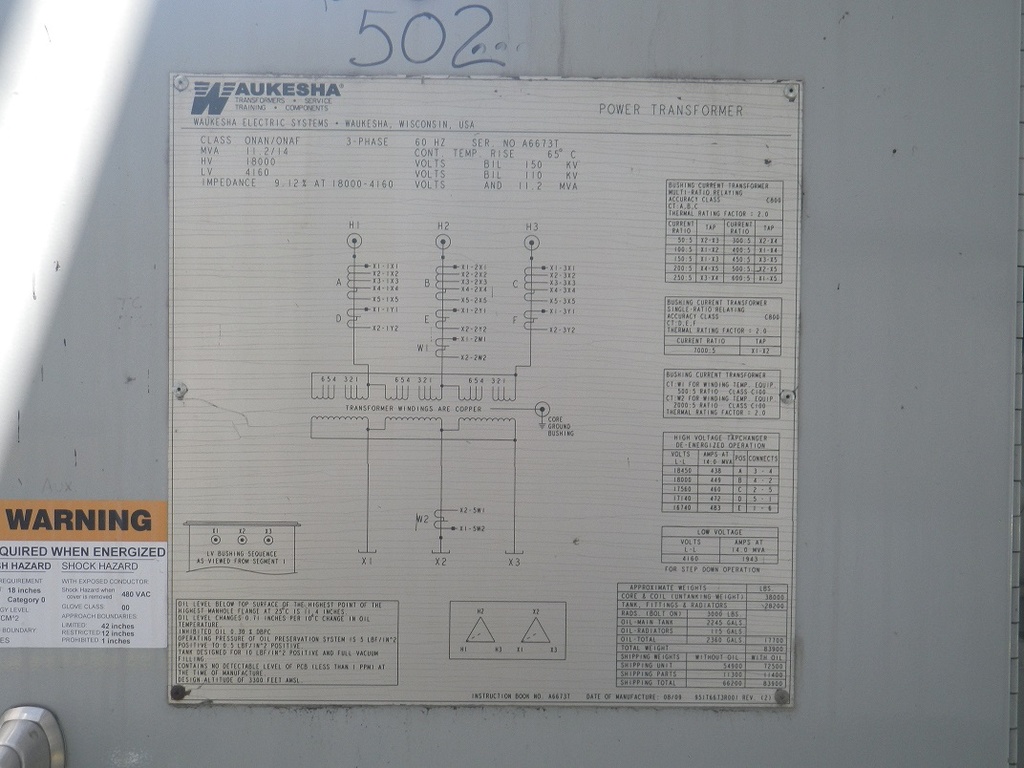

ONE (1) 11.2/14 MVA WAUKESHA SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ, CLASS
ONAN/ONAF, 65 DEG. C RISE, 9.12% IMPEDANCE, COPPER WINDINGS, HV TOP,
LV SIDE, MFG. 2009

HIGH VOLTAGE: 18000 DELTA BIL: 150 KV
LOW VOLTAGE: 4160 DELTA BIL: 110 KV
TAPS: 18450-18000-17540-17140-16740

TOTAL WEIGHT: 83,900 LBS.
CORE & COILS: 38,000 LBS.
TANK & FIT.: 28,200 LBS.
OIL: 17,700 LBS. (2,360 GALS.)
