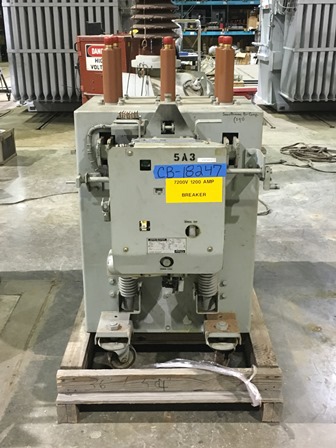

1200 Amp, GENERAL ELECTRIC, AM7.2-500-6H, 7.2 KV, 125 VDC CLOSE & TRIP
AIR BREAKER
Product Number:
040499
Full Product Description
CB-18247:

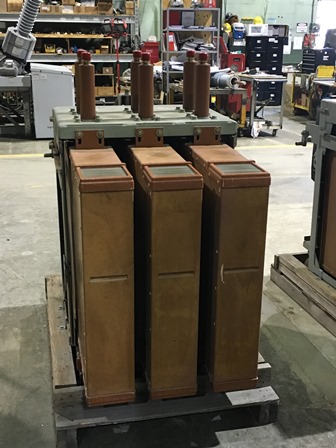

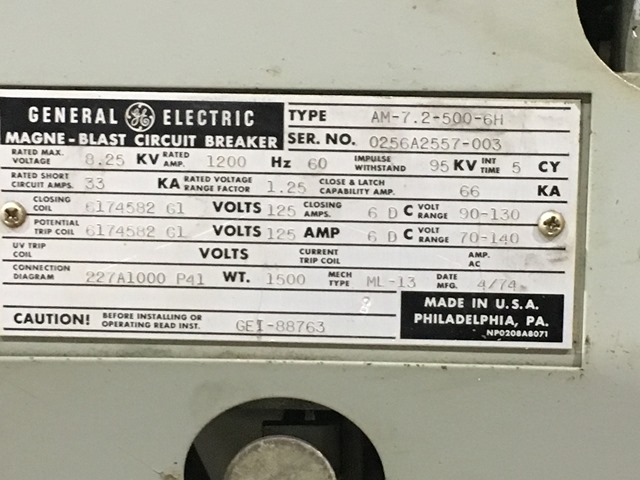

ONE (1) 1200 AMP GENERAL ELECTRIC MAGNE-BLAST AIR CIRCUIT BREAKER
TYPE AM7.2-500-6H
7.2 KV
8.25 KV MAX.
60 HERTZ
95 KV BIL
5 CYCLE INTERRUPT
33 KA SHORT CIRCUIT
1.25 KA RANGE FACTOR
66 KA CLOSE & LATCH
125 VDC CLOSE & TRIP
ML-13 MECHANISM
1500 LBS.
S/N 0256A2557-003
CONNECTION DIAGRAM 227A1000 P41
INSTRUCTION BOOK GEI-88763
