1200 Amp, SIEMENS, SPS-38-23-1, 38 KV, 1992, 125 VDC CLOSE/TRIP, SPS-SE MECH.:1

CB-18140

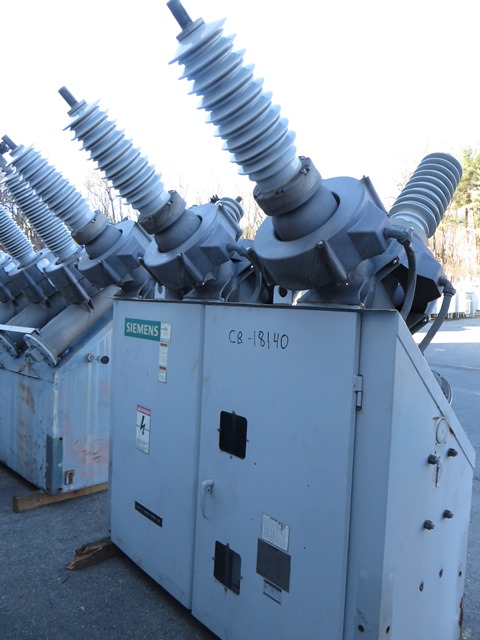

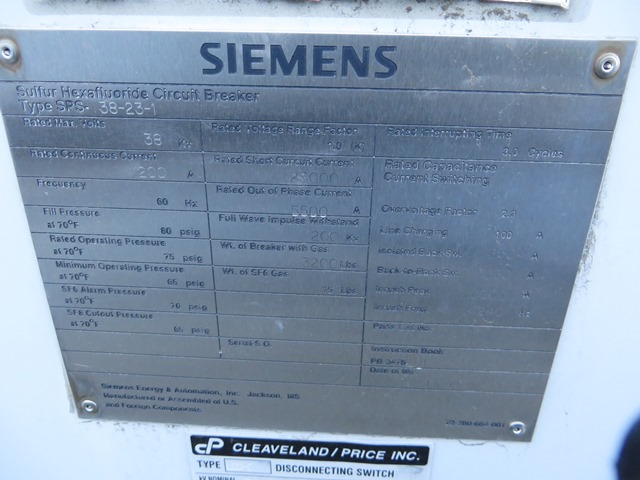

ONE (1) 1200 AMP SIEMENS SF6 CIRCUIT BREAKER
TYPE SPS-38-23-1
38 KV MAX. VOLTS
1.0 K VOLTAGE RANGE FACTOR
3.0 CYCLES INTERRUPT
23 KA SHORT CIRCUIT
60 HERTZ
200 KV BIL

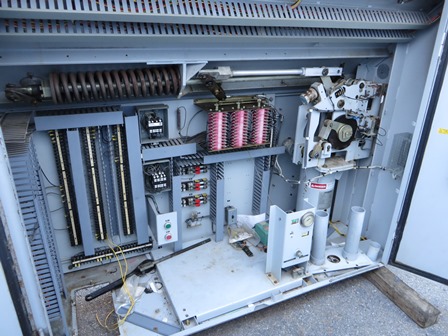

SPS-SE SPRING CHARGED MECHANISM
125 VDC CLOSE & TRIP
120 VAC MOTOR
INSTRUCTION BOOK PB-3478-01
CONTROL DIAGRAM 72-480-341-417
3,200 LBS. WITH GAS
15 LBS. OF GAS
6 X 1200:5 MRCT'S, CLASS C800, TYPE BYM
