30240/50400 KVA, Pri 115000GRDY/66395 , Sec 13800 D, ABB, SUBSTATION:2

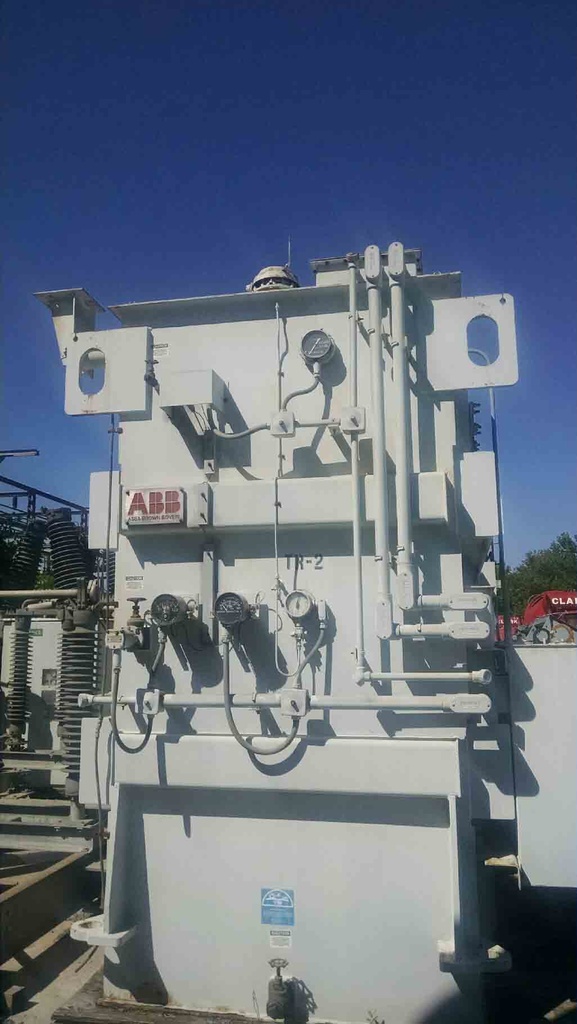

ONE (1) 30240/40340/50400 KVA ABB GENERATOR STEP-UP TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA/FA/FA, 7.58% IMPEDANCE, COPPER WINDINGS, 6 X 1200:5
HV MRCT'S CLASS C1000, 3 X 3000:5 LV MRCT'S CLASS C800, 3 X 3000:5 LV
MRCT'S CLASS C400, 1 X 600:5 HV NEUTRAL MRCT CLASS C200, 1 X HOT SPOT
HV CT

HIGH VOLTAGE: 115000 WYE BIL: 450 KV
LOW VOLTAGE: 13800 DELTA BIL: 110 KV
TAPS: 120750-117875-115000-112125-109250

TOTAL WEIGHT: 127,415 LBS.
CORE & COILS: 62,350 LBS.
TANK & FIT.: 31,900 LBS.
OIL: 33,165 LBS. (4,422 GALS.)
