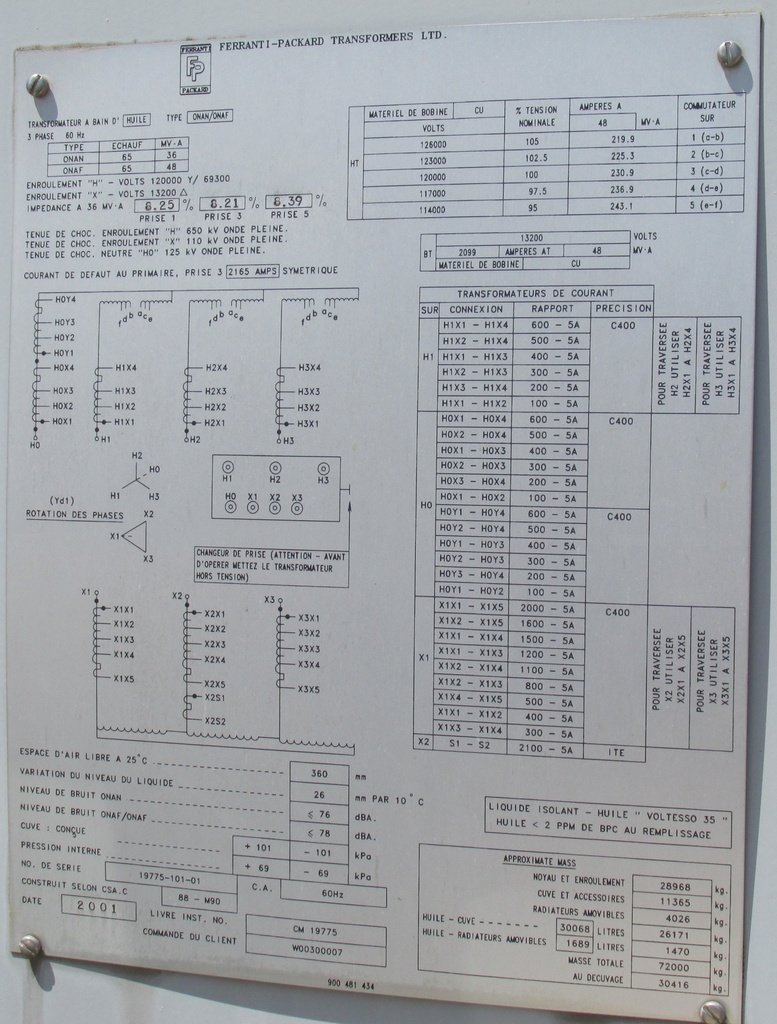

36000/48000 KVA, Pri 120000Y/69300, Sec 13200 D, FERRANTI-PACKARD, GSU

JVT-3580

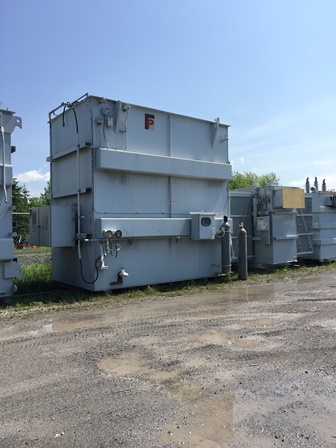

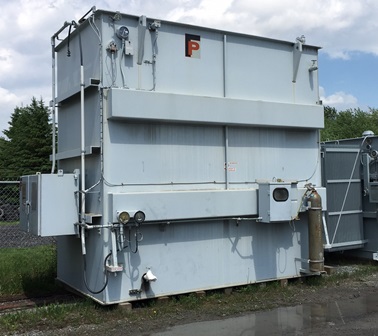

ONE (1) 36/48 MVA FERRANTI-PACKARD GENERATOR STEP-UP TRANSFORMER, 3 PHASE,<
60 HERTZ, CLASS ONAN/ONAF, 65 DEG. C RISE, 8.25% IMPEDANCE, COPPER<
WINDINGS, 12 X 600:5 HV MRCT'S C400, 8 X 600:5 HV NEUTRAL MRCT'S <
C400, 15 X 2000:5 LV MRCT'S C400, TOP MOUNTED BUSHINGS, LIQUID LEVEL<
INDICATOR WITH CONTACTS, LIQUID TEMPERATURE INDICATOR WITH CONTACTS,<
WINDING TEMPERATURE INDICATOR WITH CONTACTS, RAPID PRESSURE RISE<
RELAY WITH CONTACTS, PRESSURE VACUUM GAUGE, PRESSURE RELIEF DEVICE,<
DRAIN & SAMPLE VALVE, UPPER FILTER PRESSURE VALVE, MFG. 2001, S/N<


HIGH VOLTAGE: 120000Y/69300 BIL: 650 KV
LOW VOLTAGE: 13200 DELTA BIL: 110 KV
TAPS: 126000-123000-120000-117000-114000

TOTAL WEIGHT: 72,000 KG.
CORE & COILS: 28,968 KG.
TANK & FIT.: 11,365 KG.
REMOVABLE RADS: 4,026 KG.
TANK OIL: 26,171 KG. (30,068 LITRES)
REM. RAD OIL: 1,470 KG. (1,689 LITRES)
DIMENSIONS: 5707mmH X 5120mmW X 4707mmD
