4000 Amp, SIEMENS, SPS2-72.5-40-2, 72.5 KV, 2001, 120 VAC MOTOR, 125 VDC C & T:1

CB-18134

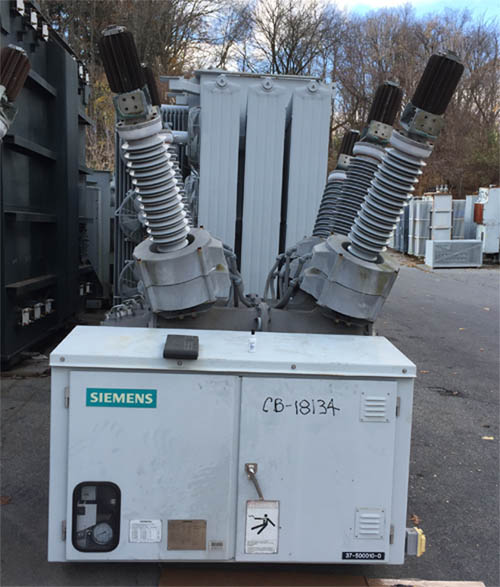

ONE (1) 4000 AMP SIEMENS SF6 CIRCUIT BREAKER
TYPE SPS2-72.5-40-2
72.5 KV MAX. VOLTS
1.0 K RANGE FACTOR
3.0 CYCLE INTERRUPT
40 KA SHORT CIRCUIT
10 KA OUT OF PHASE
60 HERTZ
65 PSIG FILL PRESSURE
51 PSIG MINIMUM OPERATING PRESSURE
57 PSIG ALARM PRESSURE
51 PSIG CUTOUT PRESSURE
350 KV BIL
4,400 LBS. WITH GAS
33 LBS. OF GAS

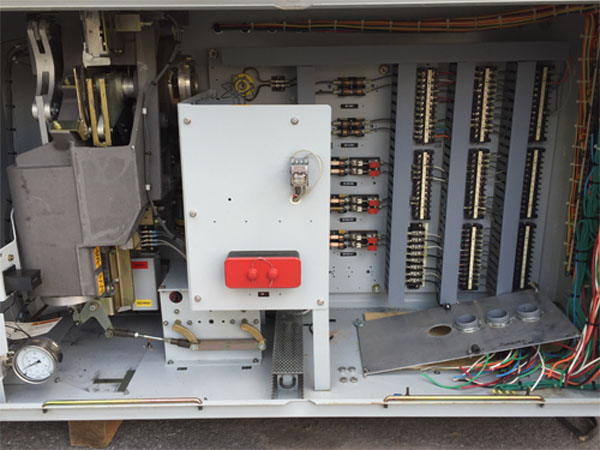

FA2.20 SPRING CHARGED MECHANISM
120 VAC MOTOR
125 VDC CLOSE AND TRIP
RATED CAPACITANCE CURRENT SWITCHING:
2.0 OVERVOLTAGE FACTOR
100 A LINE CHARGING
630 A ISOLATED BANK SWITCHING
630 A BACK-TO-BACK SWITCHING
25 KA INRUSH PEAK
3360 HZ INRUSH FREQUENCY

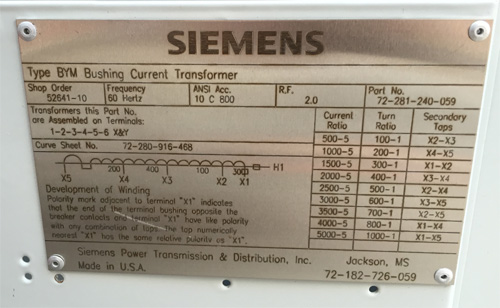

3 x 5000:5 MRCT'S, OR 6 X 5000:5 IF NEEDED
INST. BOOK PB-3638-02


EXTRA CT'S AVAILABLE AT ADDITIONAL COST
