1200 Amp, WESTINGHOUSE, V, 38 KV, 1988, 125 VDC CONTROLS, VACUUM, SUBSTATION:1
SUBSTATION VACUUM BREAKER
Product Number:
040041
Full Product Description
CB-18099:

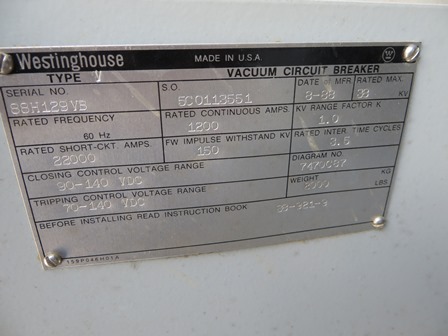

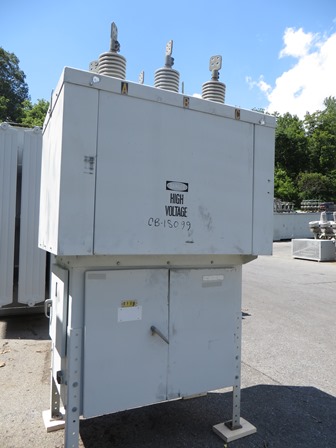

ONE (1) 1200 AMP WESTINGHOUSE VACUUM CIRCUIT BREAKER
OUTDOOR SUBSTATION TYPE V
38 KV MAX.
1.0 KV RANGE FACTOR K
3 PHASE
60 HERTZ
22 KA SHORT CIRCUIT
150 KV BIL
3.5 CYCLE INTERRUPT
125 VDC CLOSE & TRIP
S/N 88H129VB
12x 2000:5 MRCTs C400
455 OPERATIONS
DIAGRAM 7470C87
2,000 LBS.
INST. BOOK 38-921-9
APPROX. DIMENSIONS 151"H (WITH LEGS) X 56"W X 67"D

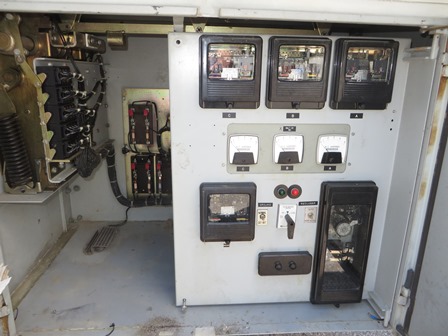

OPTIONAL RELAY PANEL AVAILABLE AT ADDITIONAL COST:
4 X WESTINGHOUSE OVERCURRENT RELAYS CO-9H1111N, STYLE 264C901A07
3 X ALLIS CHALMERS AMP METERS
1 X WESTINGHOUSE RECLOSING RELAY (120/240V) CAT. #122P453H01A
ONE (1) 1200 AMP WESTINGHOUSE VACUUM CIRCUIT BREAKER
OUTDOOR SUBSTATION TYPE V
38 KV MAX.
1.0 KV RANGE FACTOR K
3 PHASE
60 HERTZ
22 KA SHORT CIRCUIT
150 KV BIL
3.5 CYCLE INTERRUPT
125 VDC CLOSE & TRIP
S/N 88H129VB
12x 2000:5 MRCTs C400
455 OPERATIONS
DIAGRAM 7470C87
2,000 LBS.
INST. BOOK 38-921-9
APPROX. DIMENSIONS 151"H (WITH LEGS) X 56"W X 67"D
OPTIONAL RELAY PANEL AVAILABLE AT ADDITIONAL COST:
4 X WESTINGHOUSE OVERCURRENT RELAYS CO-9H1111N, STYLE 264C901A07
3 X ALLIS CHALMERS AMP METERS
1 X WESTINGHOUSE RECLOSING RELAY (120/240V) CAT. #122P453H01A
