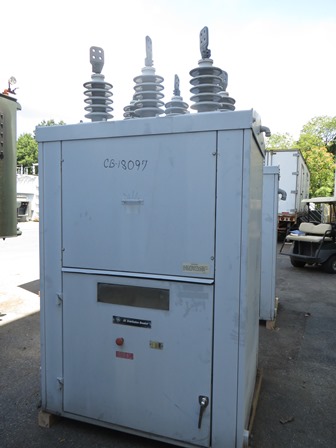

1200 Amp, GENERAL ELECTRIC, PVDB2 25.8-25-0, 27 KV, 125 VDC CONTROLS
SUBSTATION VACUUM BREAKER
Product Number:
040039
Full Product Description
CB-18097:
ONE (1) 1200 AMP GENERAL ELECTRIC PVDB2 25.8-25-0 VACUUM BREAKER
OUTDOOR SUBSTATION TYPE
27 KV
28 KV MAX.
60 HERTZ
25 KA SHORT CIRCUIT
150 KV BIL
5 CYCLE INTERRUPT
1.0 VOLTAGE RANGE FACTOR
68 KA CLOSE & LATCH
125 VDC CLOSE & TRIP
125 VDC CHARGING MOTOR
26.0 LOCKED ROTOR AMPS
CONNECTION DIAGRAM 0242B8400P002
2500 LBS.
ML18H MECHANISM
MFG. 09/2001
VACUUM INTERRUPTER 81A
INST. BOOK GEK-105495
2000:5 MRCT'S, C800
S/N 0372A6412-001-01
238 OPERATIONS
OPTIONAL RELAY PANEL AVAILABLE AT ADDITIONAL COST:
1 X GE TYPE IAC TIME OVERCURRENT RELAY MODEL 12IAC53B811A
1 X SCHWEITZER TYPE SEL-351S RELAY
1 X BITRONICS, AMP & PEAK DEMAND METER, TYPE TRIPLE DEMAND METER II
1 X BREAKER CONTROL SWITCH W/OPEN & CLOSE INDICATION LIGHTS
