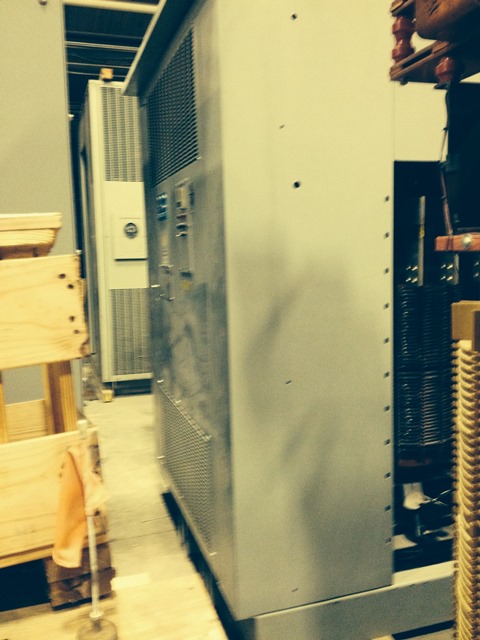

1500/2000 KVA, Pri 13800 D, Sec 480Y/277, BBC/ITE, INDOOR, DRY, ALUMINUM
INDOOR DRY TYPE TRANSFORMER
Product Number:
040033
Full Product Description
T-5720:

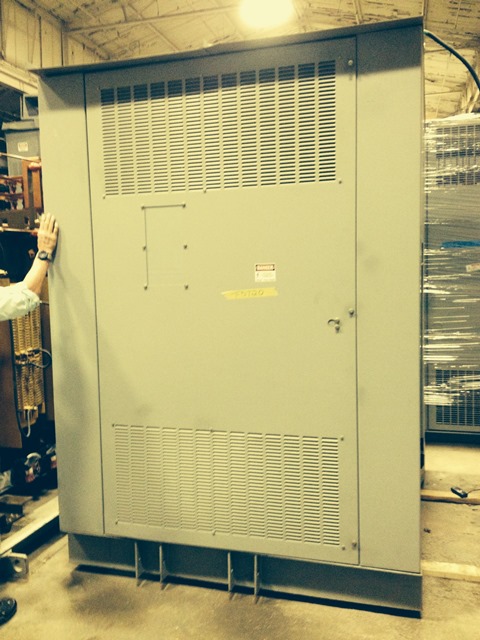

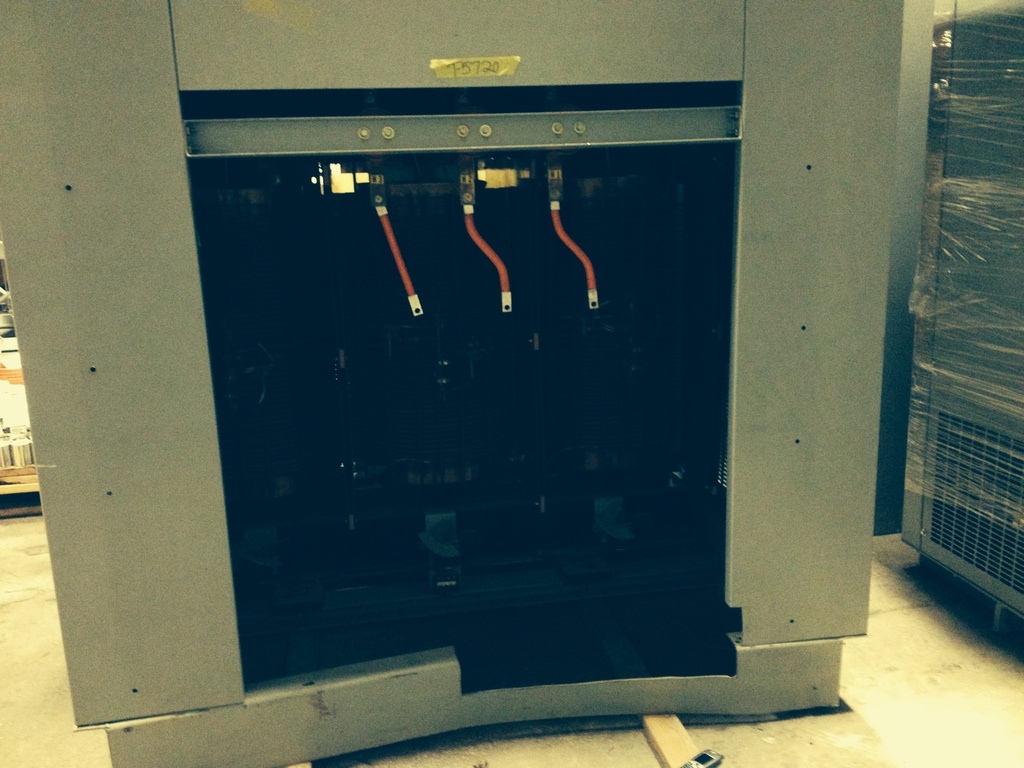

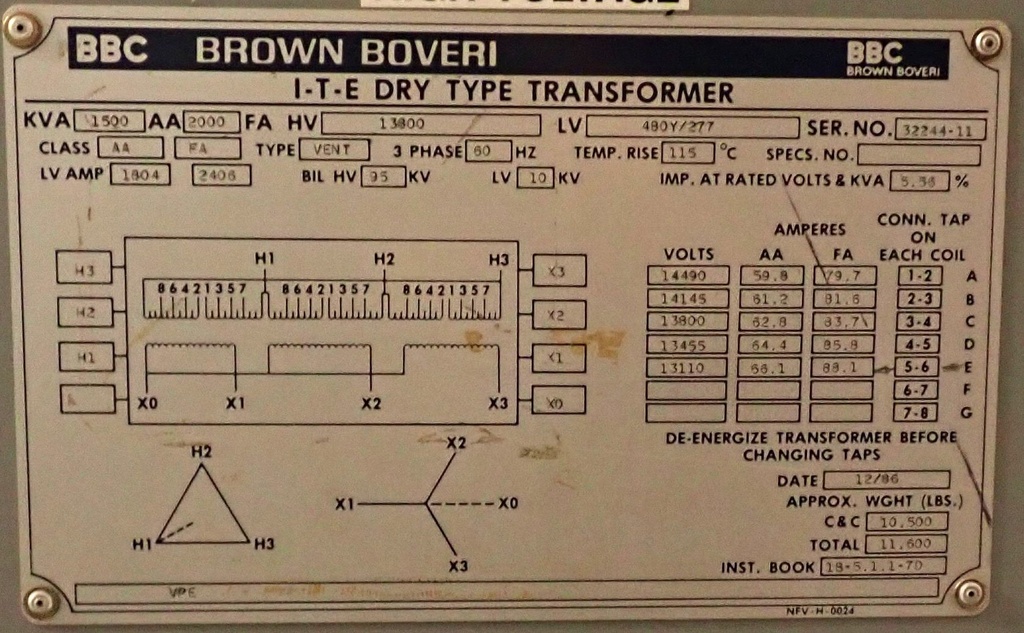

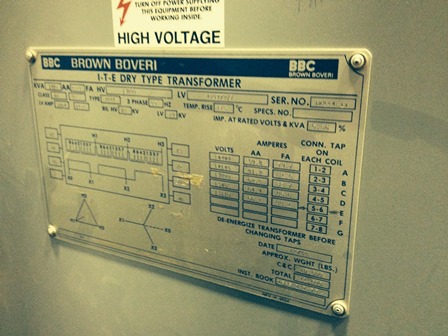

ONE (1) 1500/2000 KVA BBC/ITE DRY TYPE TRANSFORMER, INDOOR ENCLOSURE, 3 PHASE,
60 HERTZ, CLASS AA/FA, 115 DEG. C RISE, 5.56% IMPEDANCE, ALUMINUM
WINDINGS, QUALITROL TEMPERATURE MONITOR, S/N 32244-11
HIGH VOLTAGE: 13800 DELTA BIL: 95 KV
LOW VOLTAGE: 480Y/277 BIL: 10 KV
TAPS: 14490-14145-13800-13455-13110
TOTAL WEIGHT: 11,600 LBS.
CORE & COILS: 10,500 LBS.
DIMENSIONS: 96"H X 78"W X 68"L

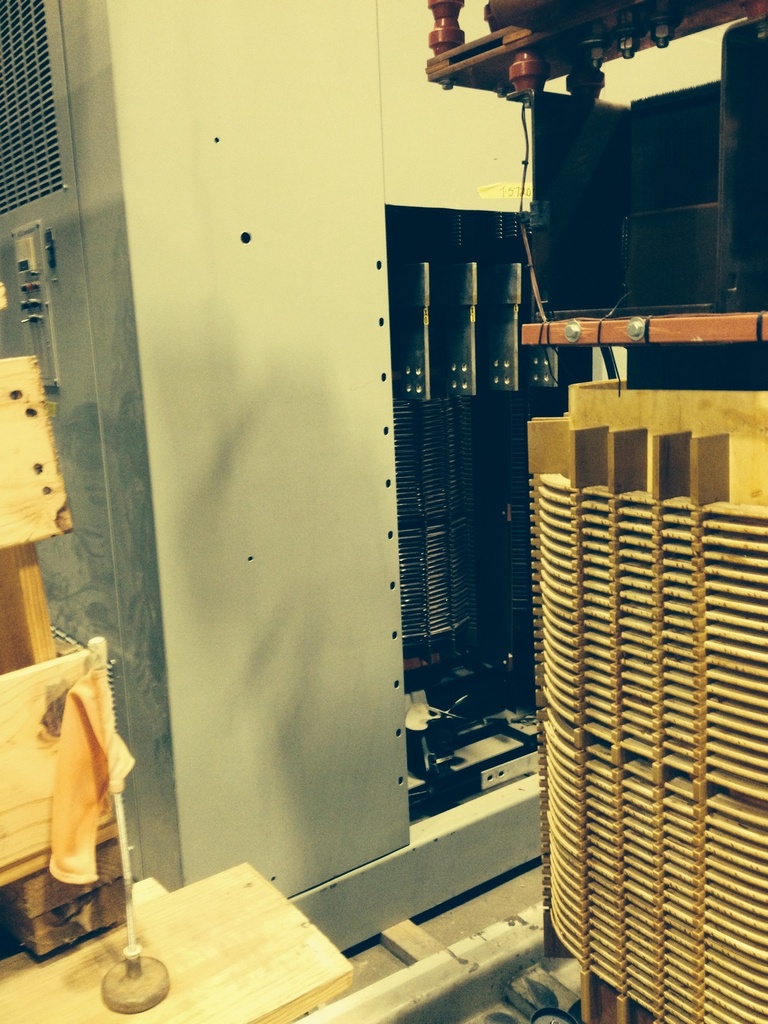

CORE & COILS: 74"H X 58"W X 61"L
BUSHINGS: 53"H
