15000 KVA, Pri 110000 D X 24900 D, Sec 4160Y/13200Y/24900Y, WESTINGHOUSE, MOBILE

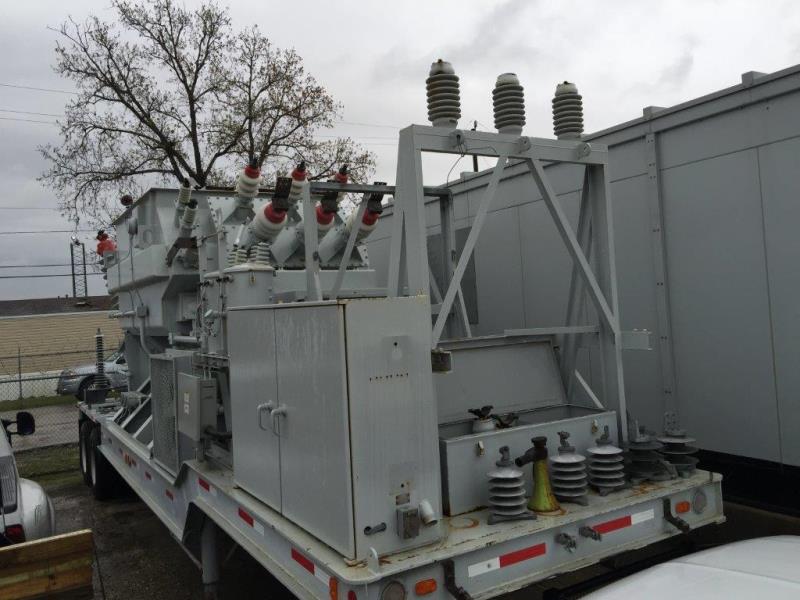

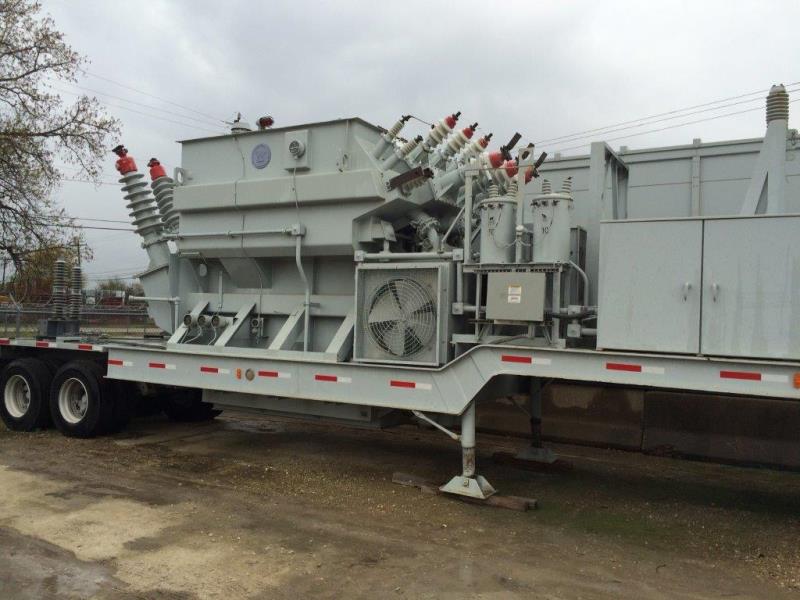

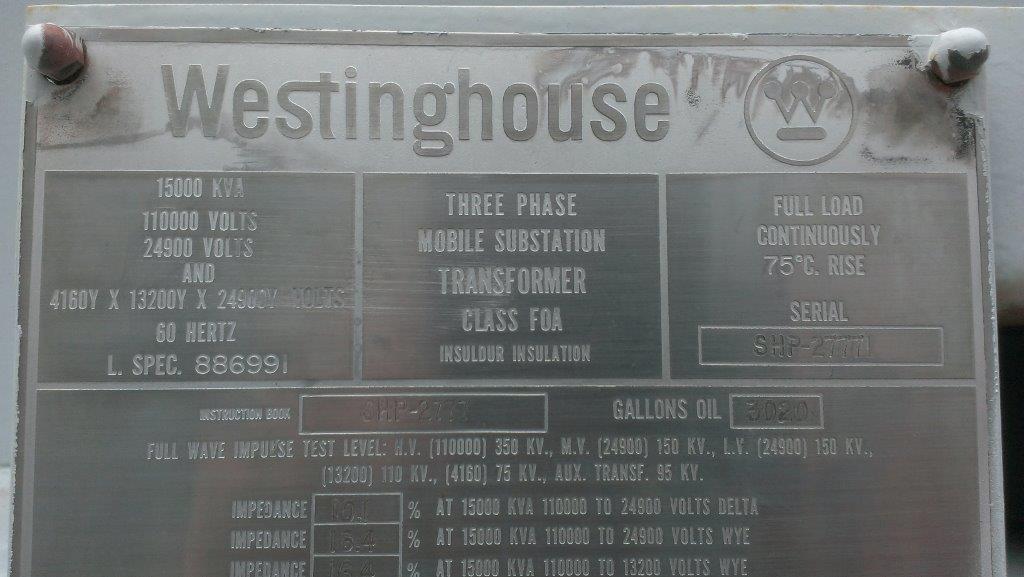

ONE (1) 15 MVA WESTINGHOUSE MOBILE SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ,
CLASS FOA, 75 DEG. C RISE

HV: 110 KV DELTA BIL: 350 KV LV: 24.9 KV DELTA IMP.: 10.1%
HV: 110 KV DELTA BIL: 350 KV LV: 24.9 KV WYE IMP.: 13.4%
HV: 110 KV DELTA BIL: 350 KV LV: 13.2 KV WYE IMP.: 16.4%
MV: 24900 DELTA BIL: 150 KV
LV: 24900 WYE BIL: 150 KV
LV: 13200 WYE BIL: 110 KV
LV: 4160 WYE BIL: 75 KV
HV TAPS: 115500-112750-110000-107250-104500
MV TAPS: 26145-25522-24900-24278-23655

OIL: 3,020 GALS.
