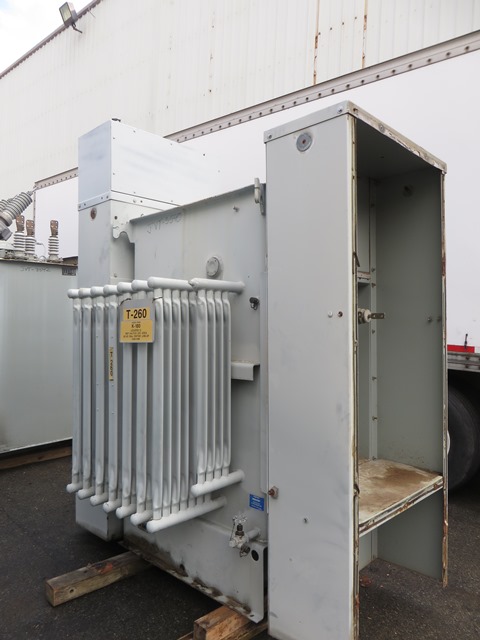

750 KVA, Pri 13800 D, Sec 4160Y/2400, 1990, ABB, SILICONE, ALUMINUM:1
SUBSTATION TRANSFORMER
Product Number:
039851
Full Product Description
JVT-3540:
ONE (1) 750 KVA ABB SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ, CLASS OA,
65 DEG. C RISE, 5.49% IMPEDANCE, ALUMINUM WINDINGS, SIDE X SIDE
BUSHINGS, MFG. 1990, S/N SBT8403-0101, SILICONE, LIQUID TEMPERATURE
GAUGE, LIQUID LEVEL GAUGE, VACUUM PRESSURE GAUGE, PRESSURE RELIEF

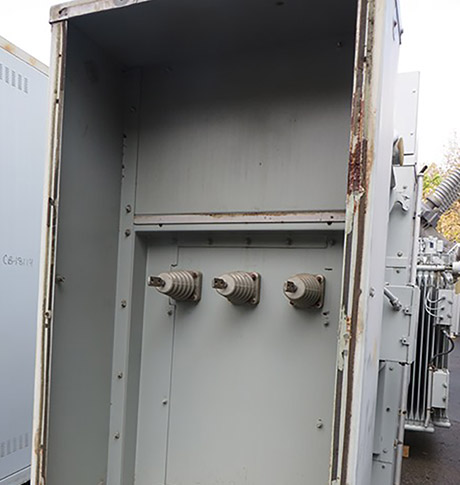

DEVICE, HV AND LV IN FULL LENGTH ATC'S
HIGH VOLTAGE: 13800 DELTA BIL: 95 KV
LOW VOLTAGE: 4160Y/2400 BIL: 75 KV
TAPS: 14490-14145-13800-13455-13110
TOTAL WEIGHT: 5,980 LBS.
CORE & COILS: 3,156 LBS.
TANK & FIT.: 1,424 LBS.
SILICONE: 1,400 LBS. (175 GALS.)
DIMENSIONS: 80"H X 52"W X 51"D

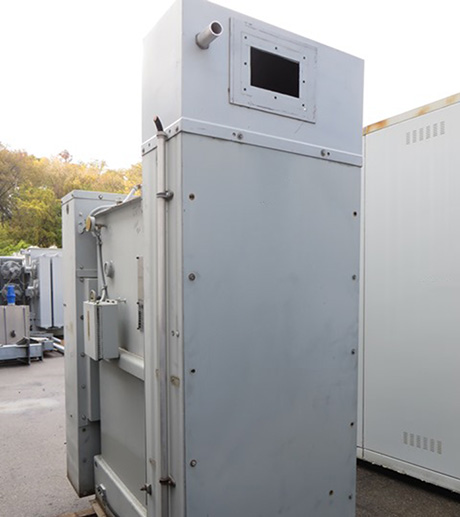

HV LTC: 87"H X 16"D X 38"L
LV LTC: 105"H X 16"D X 38"L
