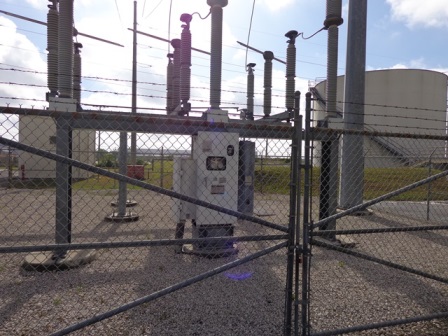

2000 Amp, MITSUBISHI, 200-SFM-40B, 242 KV, LIVE TANK, 125 VDC CLOSE & TRIP:1

CB-17939

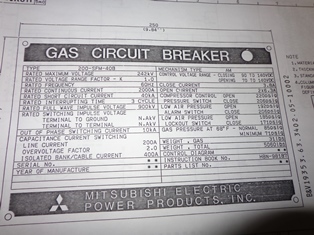

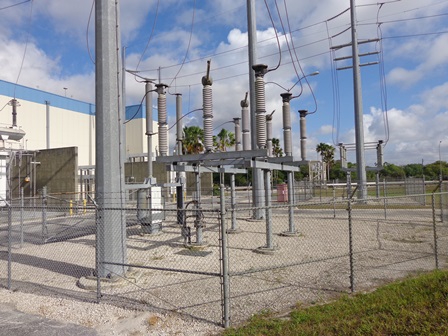

ONE (1) 2000 AMP MITSUBISHI LIVE TANK SF6 CIRCUIT BREAKER
TYPE 200-SFM-40B
242 KV MAXIMUM VOLTAGE
1.0 K FACTOR
60 HERTZ
40 KA SHORT CIRCUIT
3 CYCLE INTERRUPT
900 KV BIL
10 KA OUT OF PHASE SWITCHING
CAPACITANCE CURRENT SWITCHING -
200 AMP LINE CURRENT
2.0 OVERVOLTAGE FACTOR
400 AMP ISOLATED BANK/CABLE CURRENT
MA PNEUMATICALLY OPERATED MECHANISM
125 VDC CLOSE & TRIP
220 PSIG COMPRESSOR CONTROL - OPEN
206 PSIG PRESSURE SWITCH - CLOSE
192 PSIG LOW AIR PRESSURE - OPEN
206 PSIG ALARM SWITCH - CLOSE
185 PSIG LOW AIR PRESSURE - OPEN
171 PSIG LOCKOUT SWITCH - CLOSE
85 PSIG NORMAL GAS PRESSURE AT 68 DEG. F
71 PSIG MINIMUM GAS PRESSURE AT 68 DEG. F
31 LBS. OF GAS
5,060 LBS. TOTAL

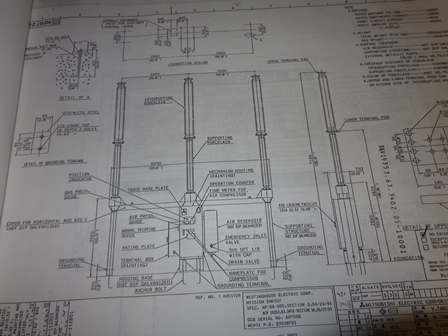

INSTRUCTION BOOK HBN-98187


CT'S AVAILABLE AT ADDITIONAL COST
