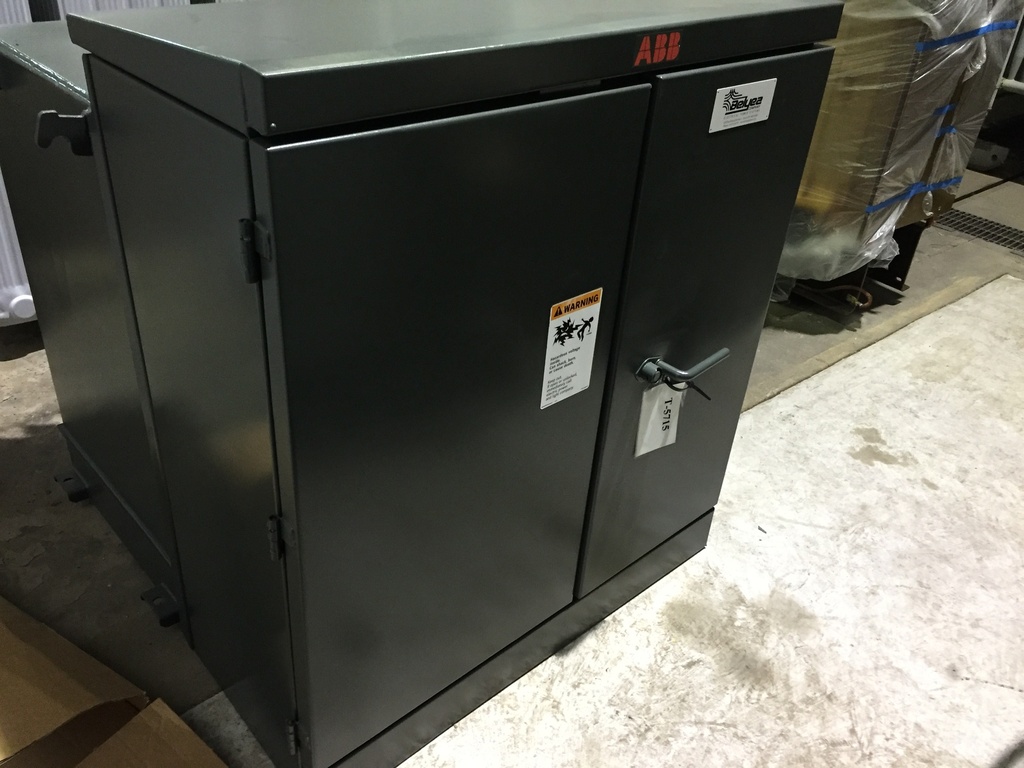

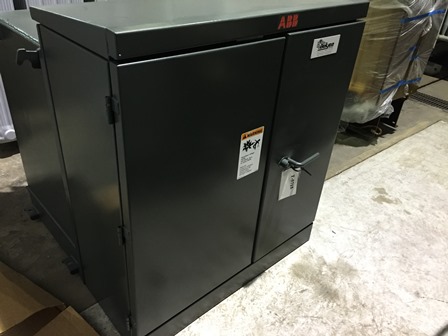

225 KVA, Pri 4160 D, Sec 208Y/120, ABB, DEAD FRONT, LOOP FEED, FUSED
PADMOUNT TRANSFORMER
Product Number:
039800
Full Product Description
T-5715
ONE (1) 225 KVA ABB COMPARTMENTALIZED PADMOUNT TRANSFORMER, 3 PHASE, 60 HERTZ,
CLASS ONAN, 65 DEG. C RISE, 1.58% IMPEDANCE, DEAD FRONT, LOOP FEED,
FUSED, ALUMINUM WINDINGS, MFG. 08/2011, S.N 11JC572270002, STYLE
V4KA517L80

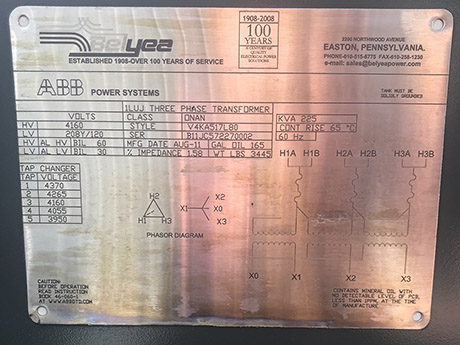

HIGH VOLTAGE: 4160 DELTA BIL: 60 KV
LOW VOLTAGE: 208Y/120 BIL: 30 KV
TAPS: 4370-4265-4160-4055-3950
TOTAL WEIGHT: 3,445 LBS.
OIL: 165 GALS.
DIMENSIONS: 54"D X 46"W X 52"H
