2500/2800 KVA, Pri 26400 D, Sec 480Y/277, WESTINGHOUSE, SUBSTATION:2

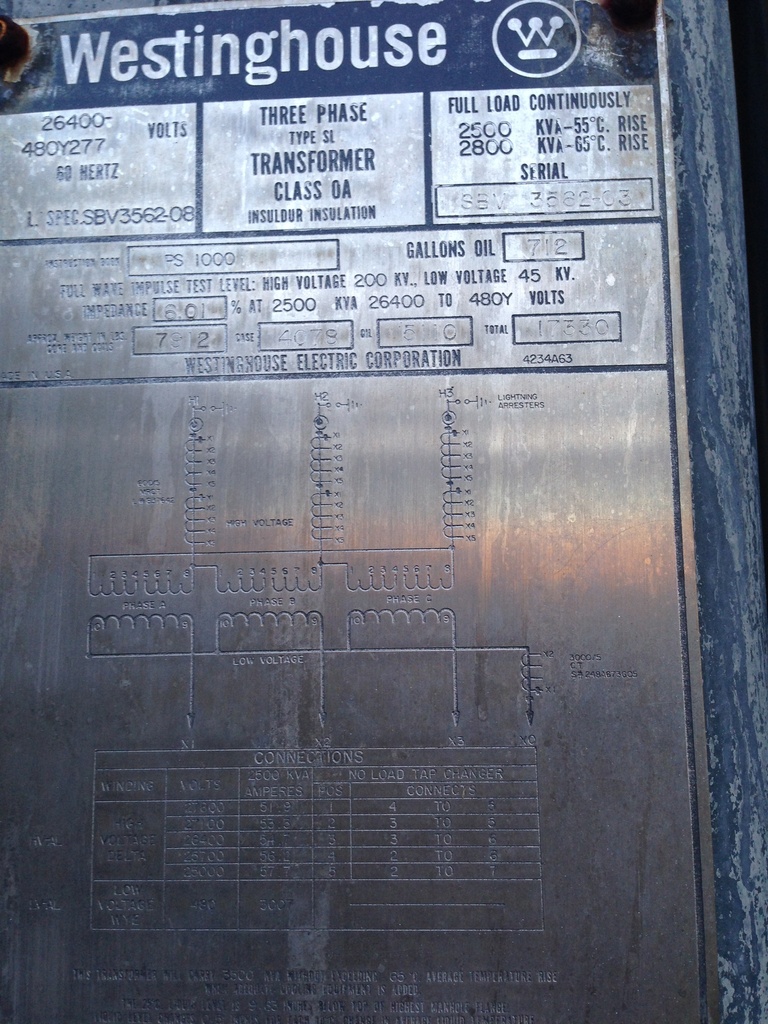

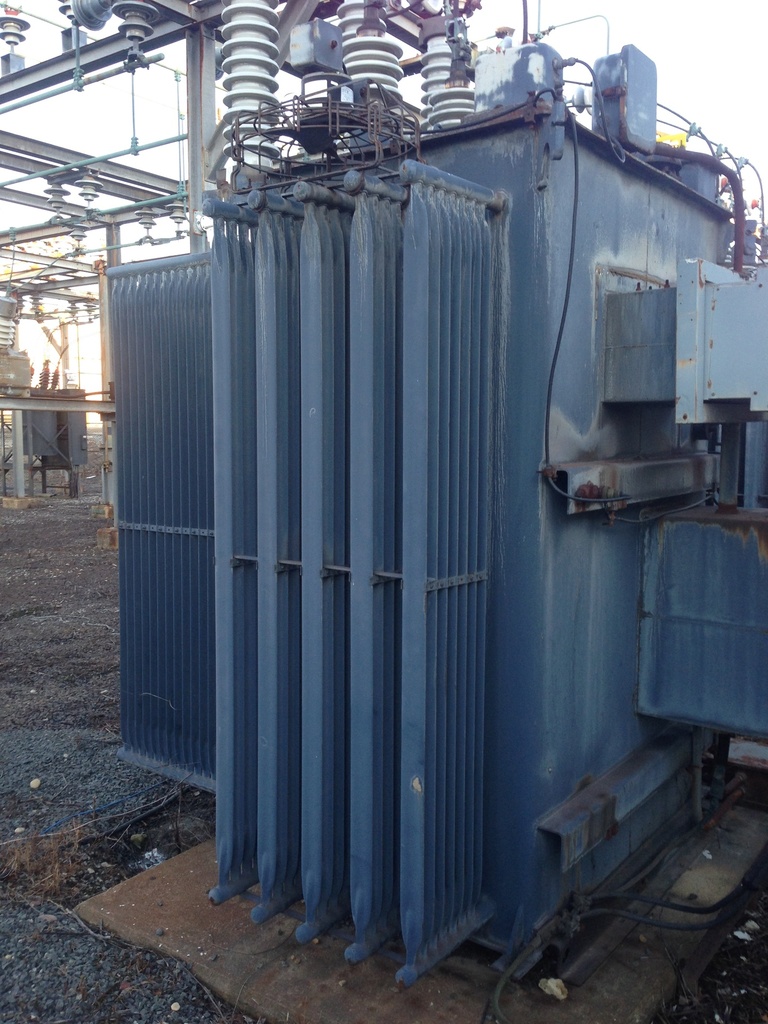

ONE (1) 2500/2800 KVA WESTINGHOUSE TYPE SL SUBSTATION TRANSFORMER, 3 PHASE,
60 HERTZ, CLASS OA, 55/65 DEG. C RISE, 6.01% IMPEDANCE, ALUMINUM
WINDINGS, INST. BOOK PS 1000

HIGH VOLTAGE: 26400 DELTA BIL: 200 KV
LOW VOLTAGE: 480Y/277 BIL: 45 KV
TAPS: 27800-27100-26400-25700-25000

TOTAL WEIGHT: 17,330 LBS.
CORE & COILS: 7,912 LBS.
TANK & FIT.: 4,078 LBS.
OIL: 5,110 LBS. (712 GALS.)
