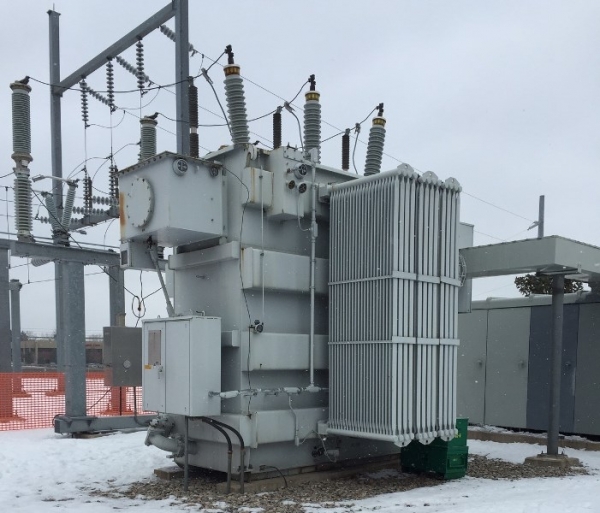

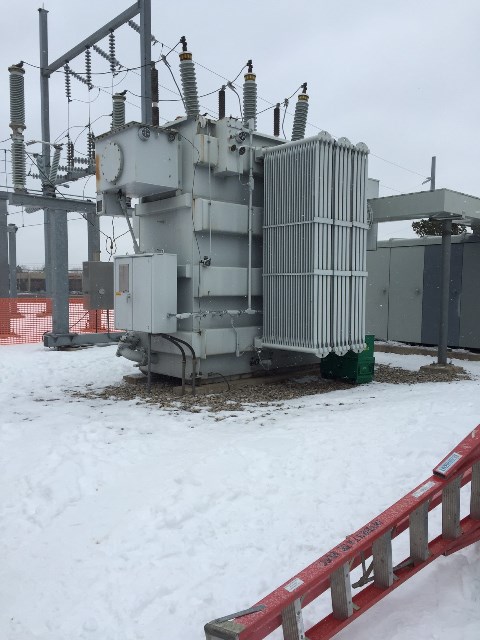

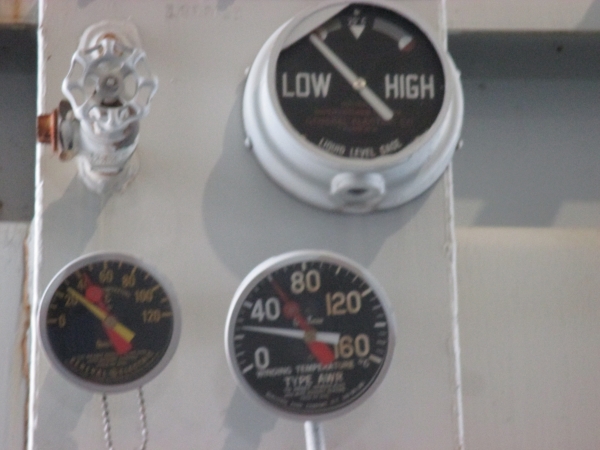

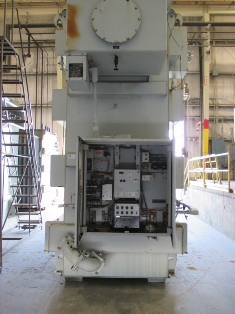

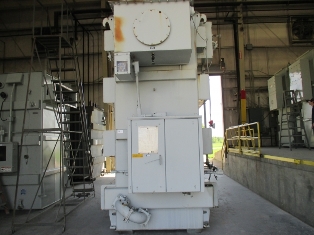

15000/28000 KVA, Pri 115000 D, Sec 13800Y/7970, GENERAL ELECTRIC, LTC
SUBSTATION TRANSFORMER WITH LOAD TAP CHANGER
Product Number:
039639
Full Product Description
G-348:

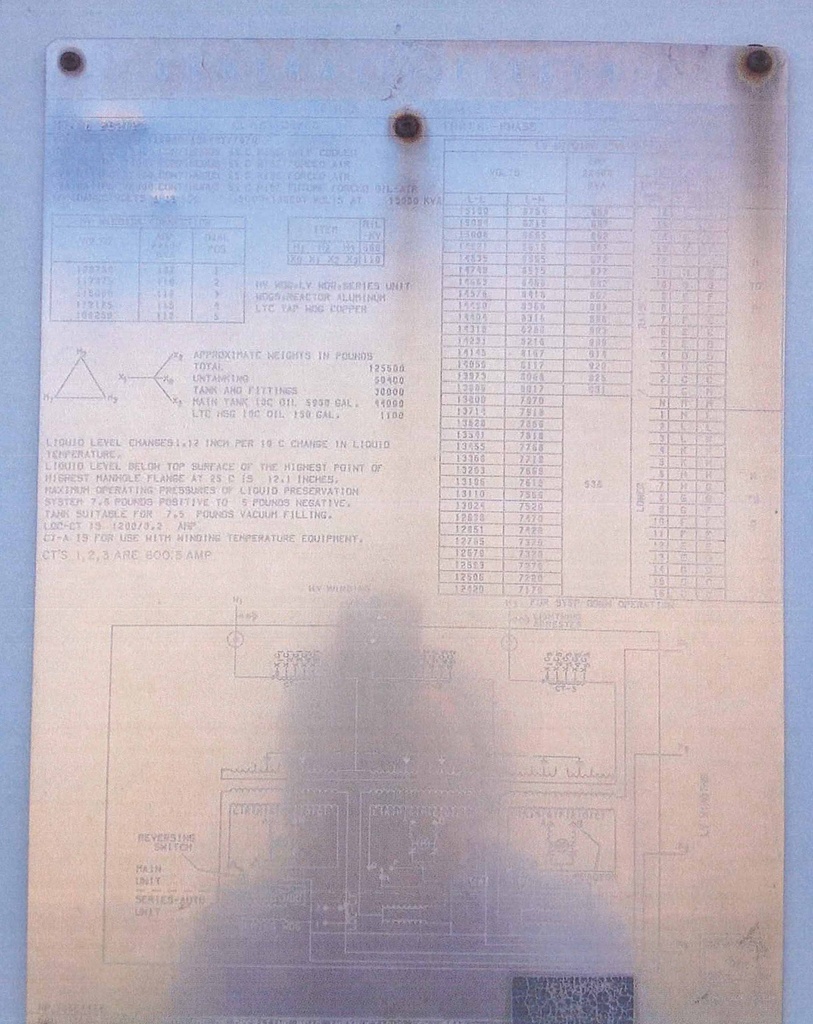

ONE (1) 15/20/22.4/28 MVA GENERAL ELECTRIC LOAD TAP CHANGING TRANSFORMER,
3 PHASE, 60 HERTZ, CLASS OA/FA, 55/65 DEG. C RISE, 9.03% IMPEDANCE,
ALUMINUM WINDINGS, LTC WINDINGS COPPER, HV COVER MOUNTED,
LV SIDE MOUNTED, HAS (3) 600/5 A CT'S ON HV SIDE
HIGH VOLTAGE: 115000 DELTA BIL: 550 KV
LOW VOLTAGE: 13800Y/7970 BIL: 110 KV
TAPS: 120750-117875-115000-112125-109250
LV TAPS: 15180 - 12420 IN 32 TAPS
TOTAL WEIGHT: 125,500 LBS.
CORE & COILS: 50,400 LBS.
TANK & FIT.: 30,000 LBS.
MAIN TANK OIL: 44,000 LBS. (5,900 GALS.)
LTC OIL: 1,100 LBS. (150 GALS.)
DIMENSIONS: 20'H X 15'6"W X 17'6"L
SHIPPING: 173"H X 100" W X 248"L
WITH EVERYTHING REMOVED: 15'H X 7'6"W X 14'L
(HV BUSHINGS, ARRESTERS, BOTH BANKS OF RADIATORS, TAP CHANGER BOX)
