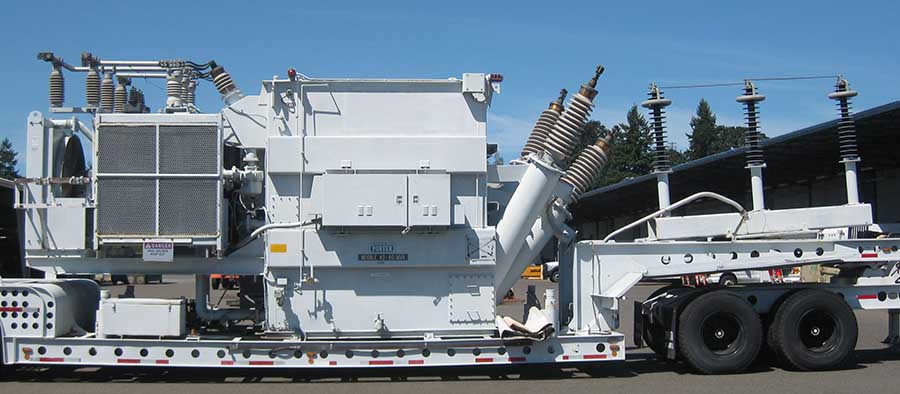

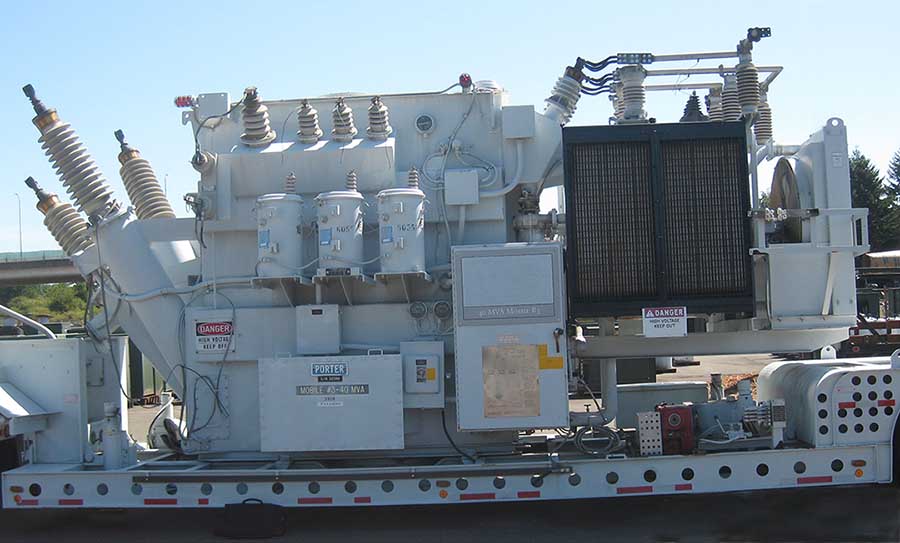

40000 KVA, Pri 115000 D, Sec 13200Y/7620 X 14800Y/8545, HK PORTER, MOBILE TRANSFORMER

G-350

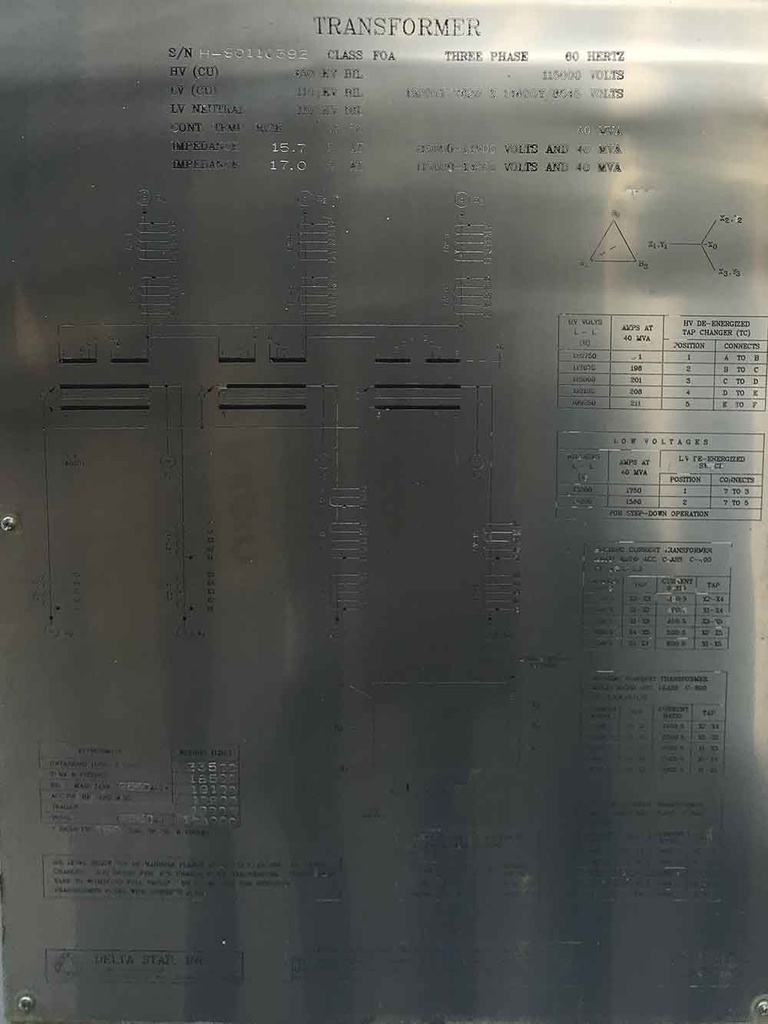

ONE (1) 40 MVA MOBILE HK PORTER SUBSTATION TRANSFORMER, 3 PHASE, 60 HERTZ,
CLASS FOA, 75 DEG. C RISE, 12.4% IMPEDANCE, COPPER WINDINGS, 6 X 600:5
HV MRCT'S CLASS C-400, 6 X 3000:5 LV MRCT'S CLASS C-800, 1 X 1200:5
BUSHING MRCT CLASS C-800, POCKET BUSHINGS HV & LV SIDES

HIGH VOLTAGE: 115000 DELTA BIL: 450 KV
LOW VOLTAGE: 13200Y/7620 BIL: 110 KV
LOW VOLTAGE: 14800Y/8545 BIL: 110 KV
LV NEUTRAL: BIL: 110 KV
TAPS: 120750-117875-115000-112125-109250

TOTAL WEIGHT: 71,100 LBS.
CORE & COILS: 33,500 LBS.
TANK & FIT.: 18,500 LBS.
MAIN TANK OIL: 19,100 LBS. (2,550 GALS.)
TOTAL W/TRAILER: 103,000 LBS.
DIMENSIONS: 168"H X 102"W X 732"L
