600 Amp, FEDERAL PACIFIC, No. AUTOJET TYPE B, 15000 V., 2009, INDOOR, FUSED:1
DISCONNECT SWITCH
Product Number:
039574
Full Product Description
CB-17840:

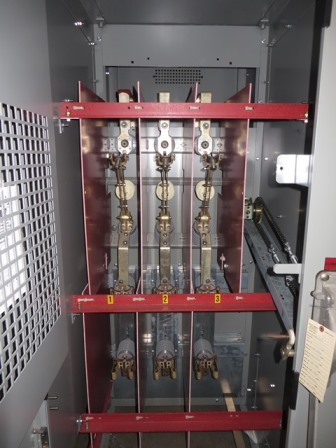

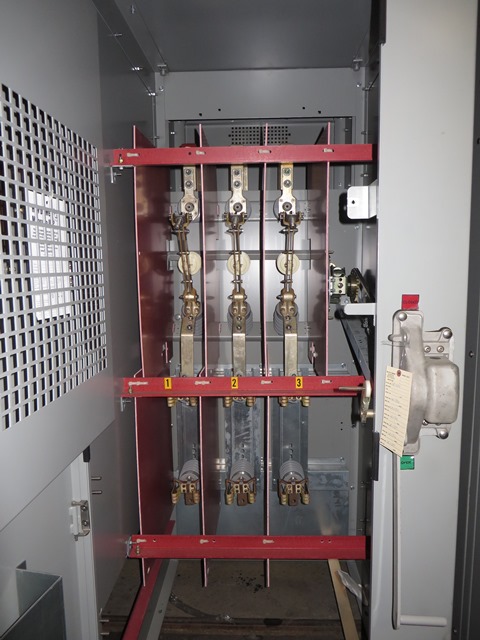

ONE (1) 600 AMP FEDERAL PACIFIC DISCONNECT SWITCH
AUTOJET SWITCHGEAR
INDOOR HOUSED

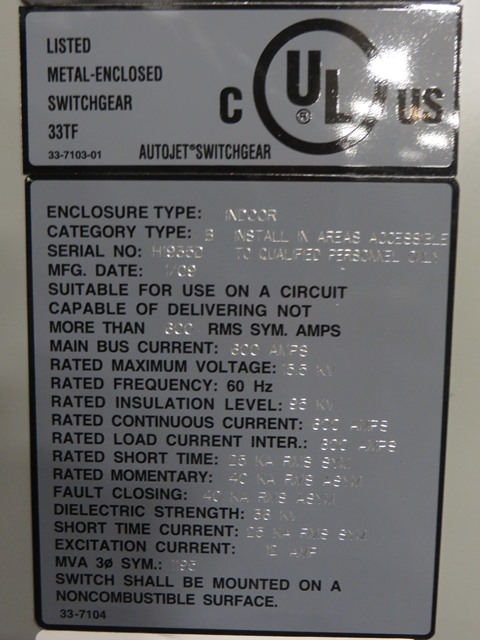

CATEGORY TYPE B
15.5 KV MAX.
95 KV BIL
UL LISTED
40 KA RMS ASYM FAULT CLOSING
25 KA RMS SYM RATED SHORT TIME
40 KA RMS ASYM RATED MOMENTARY
36 KV DIELECTRIC STRENGTH
25 KA RMS SYM SHORT TIME CURRENT
12 AMP EXCITATION CURRENT
1195 MVA 3 PHASE SYM
MFG. 01/2009
S/N H1935D

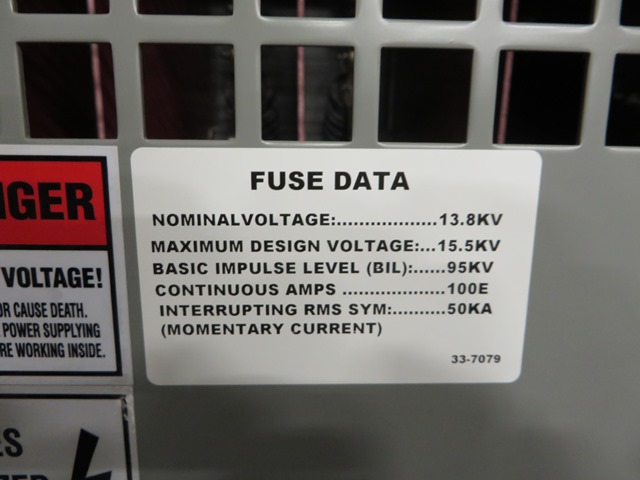

100E CONTINUOUS AMPS FUSES
13.8 KV NOMINAL
15.5 KV DESIGN VOLTAGE
95 KV BIL
50 KA INTERRUPTING RMS SYM (MOMENTARY CURRENT)
CAT. #33-7104
90"H X 36"W X 63"D
1,250 LBS. (APPROX.)
