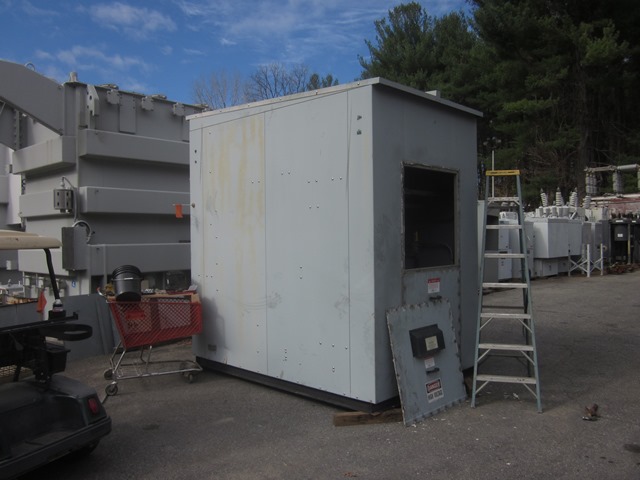

1200 Amp, ALSTOM, VXC 8025/36-2.E1, 38 KV, 2001, VACUUM, OUTDOOR:1

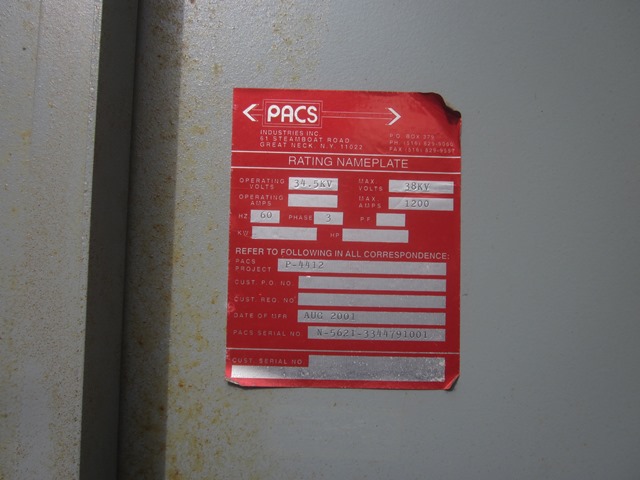

1 X 1200 AMP ALSTOM VACUUM CIRCUIT BREAKER IN AN OUTDOOR ENCLOSURE PUT
TOGETHER BY PACS.
INCOMING AND OUTGOING UNDERGROUND

34.5 KV OPERATING VOLTS
38 KV MAX. VOLTS
SR750 MULTILIN RELAY
CONTROL SWITCH WITH INDICATING LIGHTS
WITH:

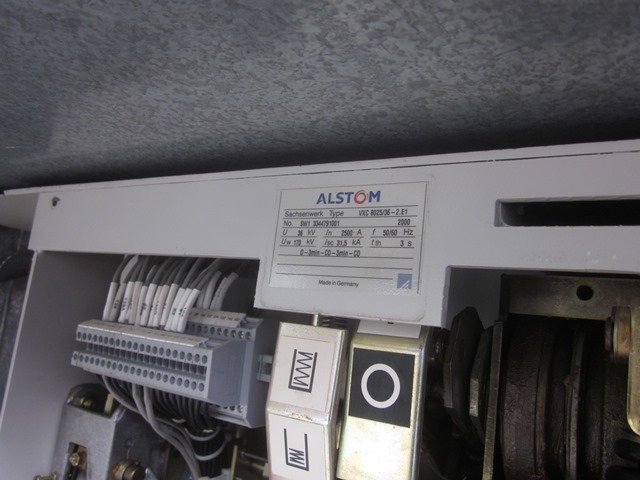

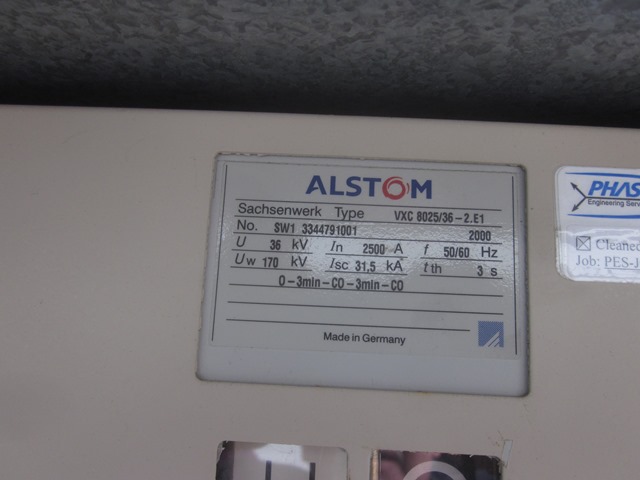

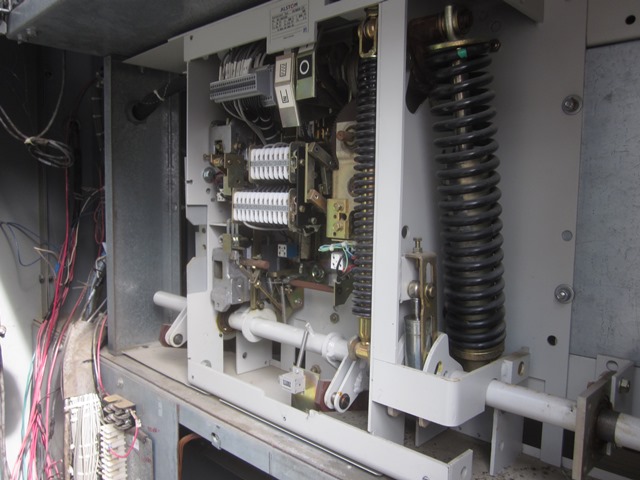

1 X ALSTOM TYPE VXC 8025/36-2.E1
36 KV
2500 AMPS
50/60 HERTZ
170 KV
31.5 KA
3 SECONDS
S/N SW1 3344791001
MANUFACTURED IN GERMANY 2001
3 X ALSTOM VACUUM BOTTLES TYPE BW/412/92/RO

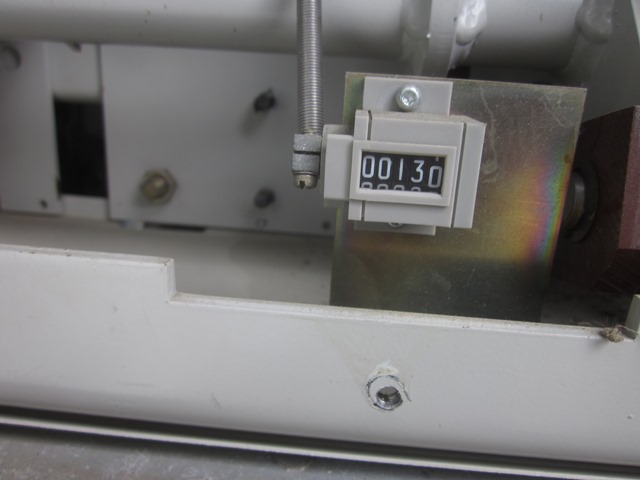

130 OPERATIONS
GROSCHOPP MOTOR
7309599
WK 1750304
EM 70-30
S2:1MIN 110 V, 1.35 AMP
65 W, 5300MIN-1


3 X COOPER VARISTAR SURGE ARRESTERS
CAT. #AZES094G024030
30 KV RMS
24.4 KV RMS MCOV
65 KA RMS SYM
STATION CLASS

6 X 600:5 INSTRUMENT TRANSFORMER CT'S
P/N 0121B08567-16
RF 2.0 ACC C100 @ 60 HERTZ
50-400 HZ
600 VOLT
10 KV BIL

3 X 300:5 ABB CT'S
P/N 6353C88H05
600 VOLT CLASS
50-400 HZ
10 KV BIL

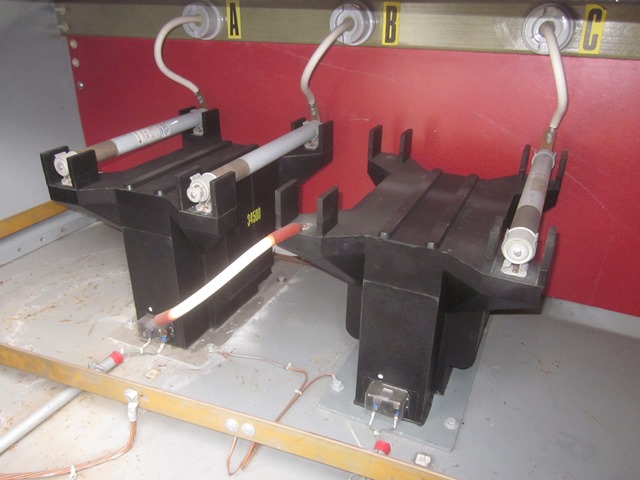

1 X 34.5 KV ABB PT
FUSED
TYPE VIZ-20
34500/34500Y
115 V SECONDARY
200 KV BIL
THERMAL 1000 VA
300:5 RATIO

120"H X 74"W X 112"D
